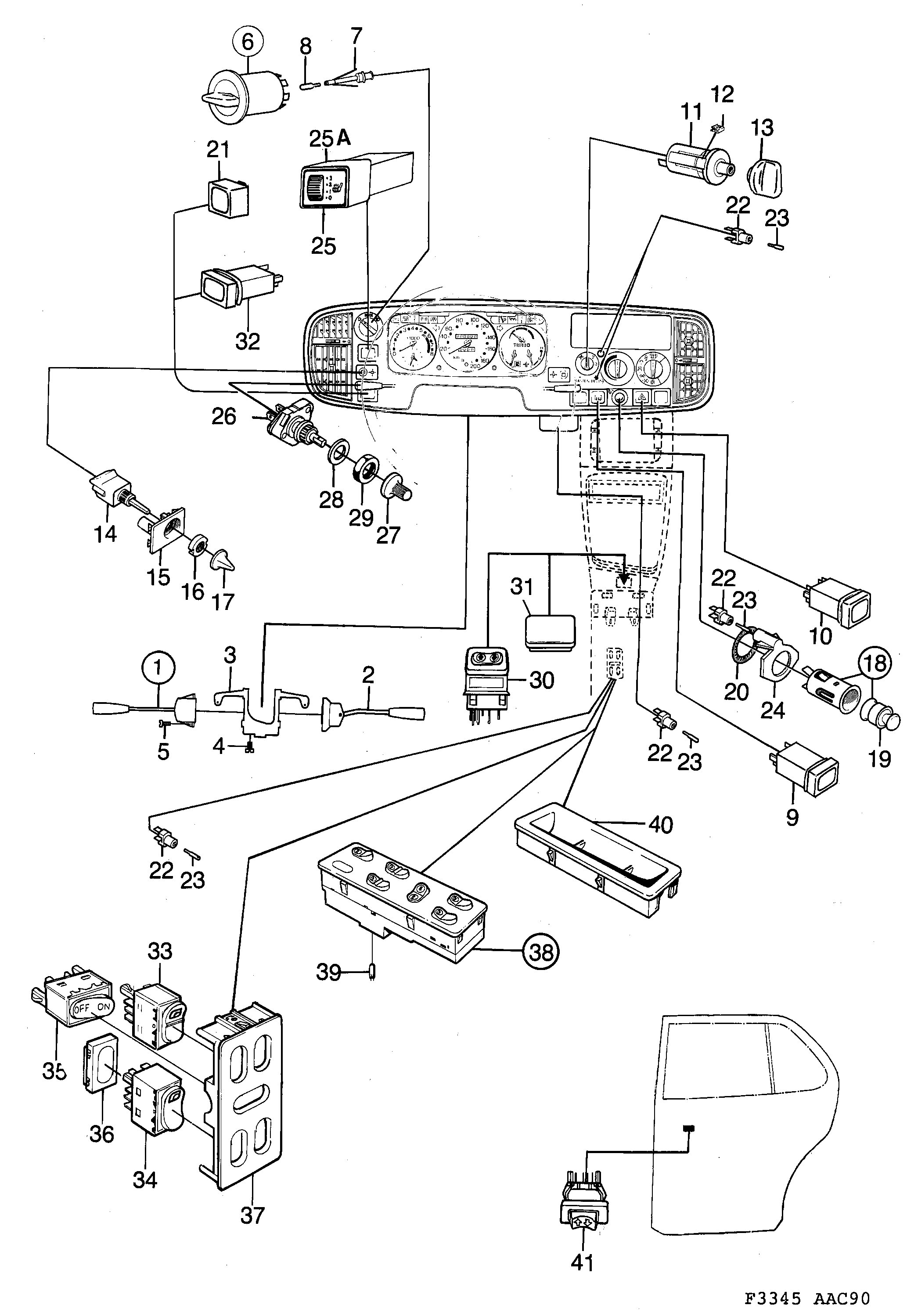

740: Electrical, general - Electric equipment, other - Switch

(1990 - 1993) | For 900 (1990)

Also valid for CV 1994

100%

(N°710)

Section 740

(N°770)

Pos.	Part No.	Description	Usage	Qty
1	85 90 820 Switch direction indicators	Switch	direction indicators	1
1	85 90 812 Switch 1990-1991 • direction indicators	Switch	1990-1991 direction indicators	1
1	95 65 623 Switch With cruise control system....	Switch	With cruise control system....	1
2	85 90 853 Switch windscreen wipers	Switch	windscreen wipers	1
2	85 96 140 Switch 1990-1990 • For cars without headlamp...	Switch	1990-1990 For cars without headlamp...	1
3	85 53 927 Bracket	Bracket		1
3	91 22 573 Bracket -1990	Bracket	-1990	1
3	41 73 654 Bracket 1990-	Bracket	1990-	1
4	79 22 800 Screw	Screw		2
5	79 72 219 Screw	Screw		4
6	85 90 838 Switch light switch	Switch	light switch	1
7	85 53 356 Bracket	Bracket		1
8	85 00 613 93 190 474 Bulb 40/238 286 009	Bulb	40/238 286 009	1
9	95 23 721 Switch rear window	Switch	rear window	1
9	95 23 820 Switch rear window	Switch	rear window	1
9	95 23 788 Switch AC	Switch	AC	1
9	95 23 846 Switch recirculation	Switch	recirculation	1
10	95 12 641 30 526 052 Switch hazard flashing light	Switch	hazard flashing light	1
11	85 50 360 Switch fan	Switch	fan	1
12	72 86 271 Clip	Clip		1
13	94 79 866 Knob fan	Knob	fan	1
14	85 31 204 Switch EM	Switch	EM	2
15	85 41 856 Bracket	Bracket		2
16	85 28 358 Nut	Nut		2
17	85 79 492 Button	Button		2
18	85 74 469 Cigarette lighter	Cigarette lighter		1
19	85 59 213 85 59 221 Lighter unit	Lighter unit		1
20	85 32 426 Clip	Clip		1
21	95 68 122 Button	Button		4
22	85 09 697 Socket, bulb	Socket, bulb		4
23	85 61 425 Lamp 40/238 286 017	Lamp	40/238 286 017	4
24	85 41 864 Lighting cigarette lighter	Lighting	cigarette lighter	1
25	95 18 820 51 06 190 Switch 1990-1992 • Driver's side. heating pad	Switch	1990-1992 Driver's side. heating pad	1
25A	40 84 554 Switch button Kits Rheostat. kit	Switch button Kits	Rheostat. kit	X
25	40 63 152 Switch headlamp adjustment	Switch	headlamp adjustment	1
26	85 93 733 Rheostat	Rheostat		1
27	85 93 394 Button	Button		1
28	85 81 068 Washer	Washer		1
29	85 79 898 Nut	Nut		1
30	95 50 617 Switch 1990-1990 • EL-SR	Switch	1990-1990 EL-SR	1
	sunroof	sunroof
30	95 97 386 Switch soft top	Switch	soft top	1
31	95 51 987 Cover For cars without electric...	Cover	For cars without electric...	1
32	95 23 747 Switch rear fog-light	Switch	rear fog-light	1
32	95 23 762 Switch LHD • front fog-light	Switch	LHD front fog-light	1
32	95 23 804 Switch LHD • spotlight	Switch	LHD spotlight	1
33	95 12 310 30 526 039 Switch 1990-1990, LHD • LH \| Front. window...	Switch	1990-1990, LHD LH \| Front. window...	1
33	95 01 859 Switch 1990-1990, LHD • RH \| Front. window...	Switch	1990-1990, LHD RH \| Front. window...	1
34	95 01 867 Switch 1990-1990 • Rear. window lift	Switch	1990-1990 Rear. window lift	2
35	95 01 875 Switch 1990-1990 • window lift	Switch	1990-1990 window lift	1
36	91 25 212 Cover washer 1990-1990	Cover washer	1990-1990	3
37	95 01 917 Frame 1990-1990	Frame	1990-1990	1
39	40 69 373 Bulb	Bulb		1
40	Coin boxDashboard 1990-1990	Coin boxDashboard 1990-1990
41	95 01 909 Switch Rear. window lift	Switch	Rear. window lift	2
