Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1990?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1990. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

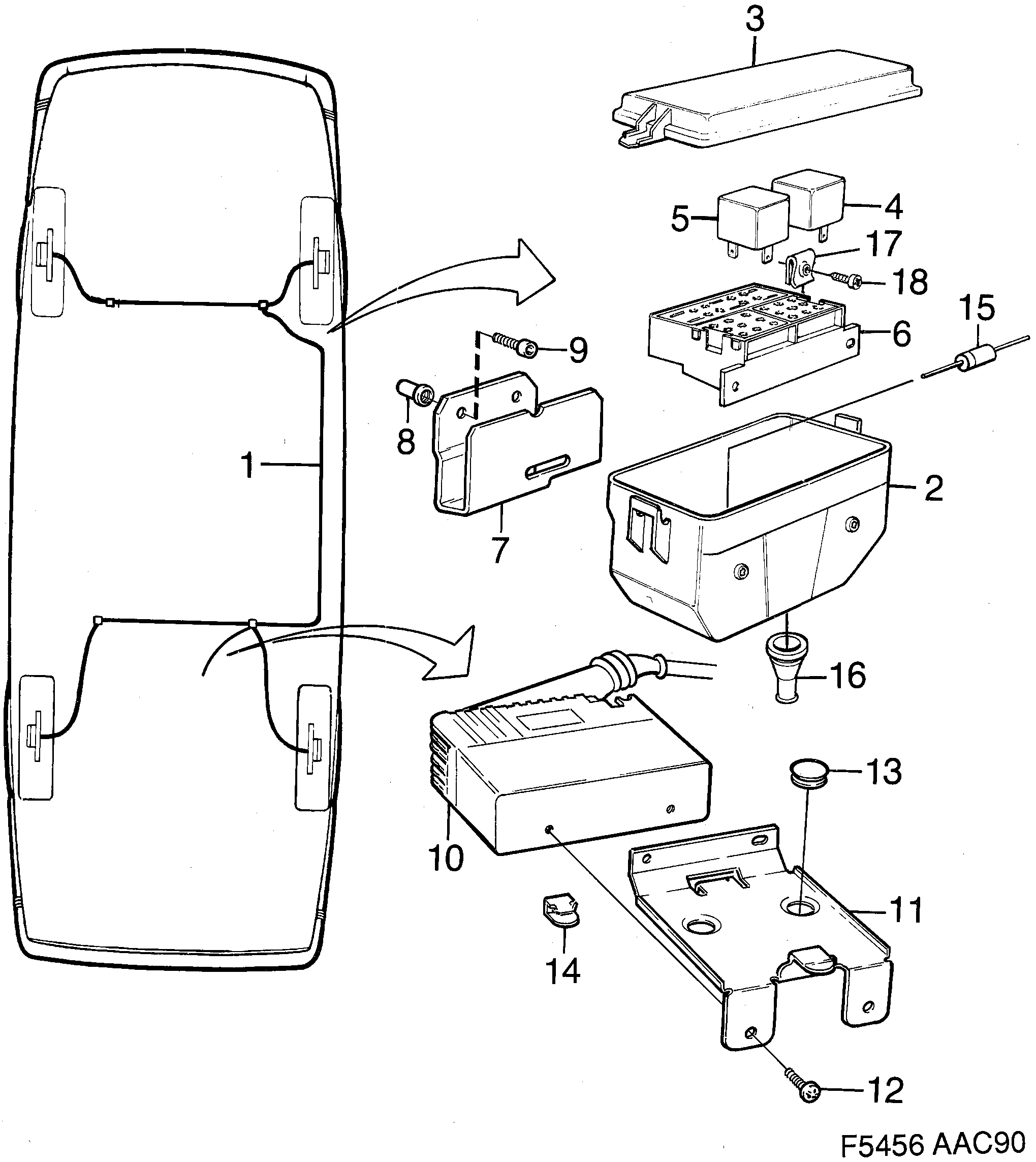

Pos.	Part No.	Description	Usage	Qty
1	40 63 202 Cable harness 1990-1990	Cable harness	1990-1990	1
2	41 11 118 Box	Box
3	91 24 611 Cover	Cover		1
4	95 22 822 Relay pump	Relay	pump	1
5	85 33 176 Relay main relay	Relay	main relay	1
6	91 25 543 Contact housing	Contact housing		1
7	40 63 327 Bracket	Bracket		1
8	69 38 393 Nut	Nut		2
9	80 59 578 Screw	Screw		2
10	40 02 176 Electronic unit Also available as exchange...	Electronic unit	Also available as exchange...	1
11	40 98 190 Bracket	Bracket		1
11	91 96 072 Bracket	Bracket		1
12	79 75 444 Screw	Screw		2
13	92 68 186 Plug	Plug		2
14	40 04 404 Clamp	Clamp		1
15	44 24 172 Diode	Diode		2
16	95 19 745 Protection	Protection		1
17	79 68 001 Clip nut	Clip nut		2
18	79 70 601 92 153 219 Screw	Screw		2
