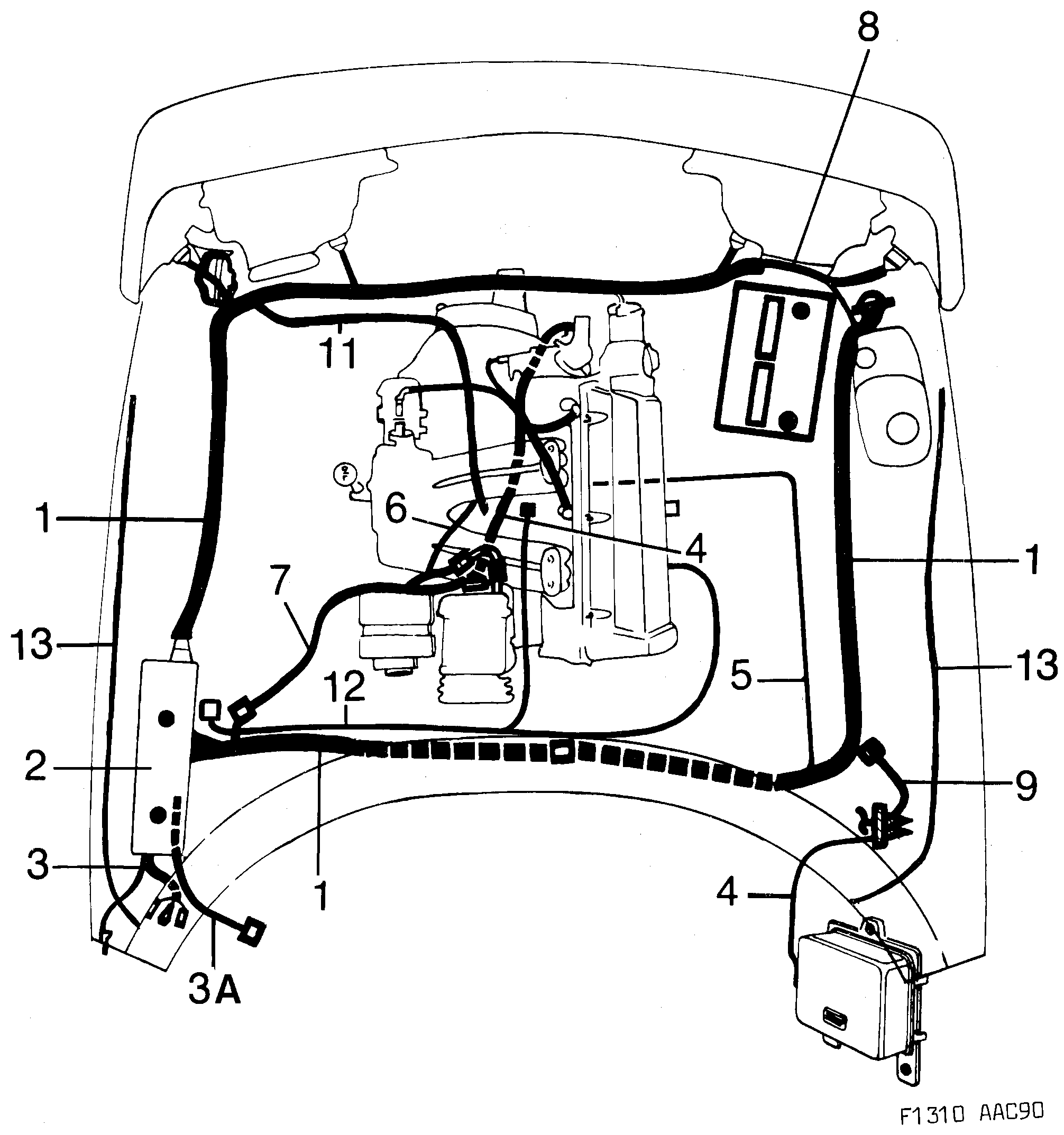

950: Electrical, general - Wiring and fuses - Front and engine
(1990) | For 900 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 40 65 215 Cable harness B201C • front | 1 | |
| 1 | 40 65 223 Cable harness -1990 • B201I • front | 1 | |
| 1 | 41 16 711 Cable harness 1990-, LHD • B201I • front | 1 | |
| 1 | 41 16 729 Cable harness 1990-, RHD • B201I • front | 1 | |
| 1 | 40 65 231 Cable harness -1990 • B201I • With catalytic converter. front | 1 | |
| 1 | 41 16 737 Cable harness 1990-, LHD • B201I • With catalytic converter. front | 1 | |
| 1 | 40 65 249 Cable harness -1990 • B202I • front | 1 | |
| 1 | 41 16 752 Cable harness 1990-, LHD • B202I • front | 1 | |
| 1 | 41 16 760 Cable harness 1990-, RHD • B202I • front | 1 | |
| 1 | 40 65 256 Cable harness -1990 • B202I • With catalytic converter. front | 1 | |
| 1 | 41 16 778 Cable harness 1990- • B202I • With catalytic converter. front | 1 | |
| 1 | 41 16 786 Cable harness 1990-, RHD • B202I • With catalytic converter. front | 1 | |
| 1 | 40 68 623 Cable harness -1990 • B202S • front | 1 | |
| 1 | 41 16 810 Cable harness 1990- • B202S • front | 1 | |
| 1 | 40 65 280 Cable harness -1990 • B202TURBO • front | 1 | |
| 1 | 41 16 828 Cable harness 1990-, LHD • B202TURBO • front | 1 | |
| 1 | 41 16 836 Cable harness 1990-, RHD • B202TURBO • front | 1 | |
| 1 | 40 65 264 Cable harness -1990, LHD • I • front | 1 | |
| 1 | 41 16 794 Cable harness 1990-, LHD • I • front | 1 | |
| 1 | 40 65 306 Cable harness -1990, LHD • TURBO • front | 1 | |
| 1 | 41 16 885 Cable harness 1990-, LHD • TURBO • front | 1 | |
| 1 | 40 65 272 Cable harness -1990 • I • front | 1 | |
| 1 | 41 16 802 Cable harness 1990- • I • front | 1 | |
| 1 | 40 65 314 Cable harness -1990 • TURBO • front | 1 | |
| 1 | 41 16 869 Cable harness 1990- • TURBO • front | 1 | |
| 1 | 41 10 961 Cable harness -1990 • TURBO • Cars with electronic EGR.... | 1 | |
| 1 | 41 16 877 Cable harness 1990- • TURBO • Cars with electronic EGR.... | 1 | |
| 1 | 40 65 298 Cable harness -1990 • B202TURBO • front | 1 | |
| 1 | 41 16 844 Cable harness 1990-, LHD • B202TURBO • front | 1 | |
| 1 | 41 16 851 Cable harness 1990-, RHD • B202TURBO • front | 1 | |
| 1 | 95 98 376 Cable harness 1990- • front | 1 | |
| 2 | 40 67 344 Cable harness -1990 • fuse-relay | 1 | |
| 3 | 40 67 351 Cable harness -1990, LHD • B201 • main fuse box | 1 | |
| 3 | 40 68 383 Cable harness -1990, RHD • B201 • main fuse box | 1 | |
| 3 | 40 67 369 Cable harness -1990, LHD • B202 • main fuse box | 1 | |
| 3 | 40 68 391 Cable harness -1990, RHD • B202 • main fuse box | 1 | |
| 3 | 95 97 550 Cable harness -1990 • main fuse box | 1 | |
| 4 | 40 67 401 Cable harness B202TURBO • engine | 1 | |
| 4 | 40 63 582 Cable harness B202TURBO • With catalytic converter. Cars... | 1 | |
| 4 | 95 68 825 Cable harness B202TURBO, B202 • With catalytic converter. engine | 1 | |
| 4 | 40 67 419 Cable harness TURBO • engine | 1 | |
| 4 | 91 21 757 Cable harness B202I • engine | 1 | |
| 5 | 85 69 386 Cable lambda sond | 1 | |
| 6 | 95 55 905 Cable B+ | 1 | |
| 7 | 85 94 467 Cable harness B201 • AC | idle speed... | 1 | |
| 8 | 95 57 505 Cable harness AC | idle speed... | 1 | |
| 9 | 95 61 655 Cable harness AC | With recirculation.... | 1 | |
| 11 | 95 61 804 Cable harness knock sensor | 1 | |
| 12 | 74 78 159 | 1 | |
| 13 | 46 63 019 Cable harness AIR-BAG,LH | sensor | 1 | |
| 13 | 46 63 027 Cable harness AIR-BAG,RH | sensor | 1 | |
AirbagSteering assembly |
