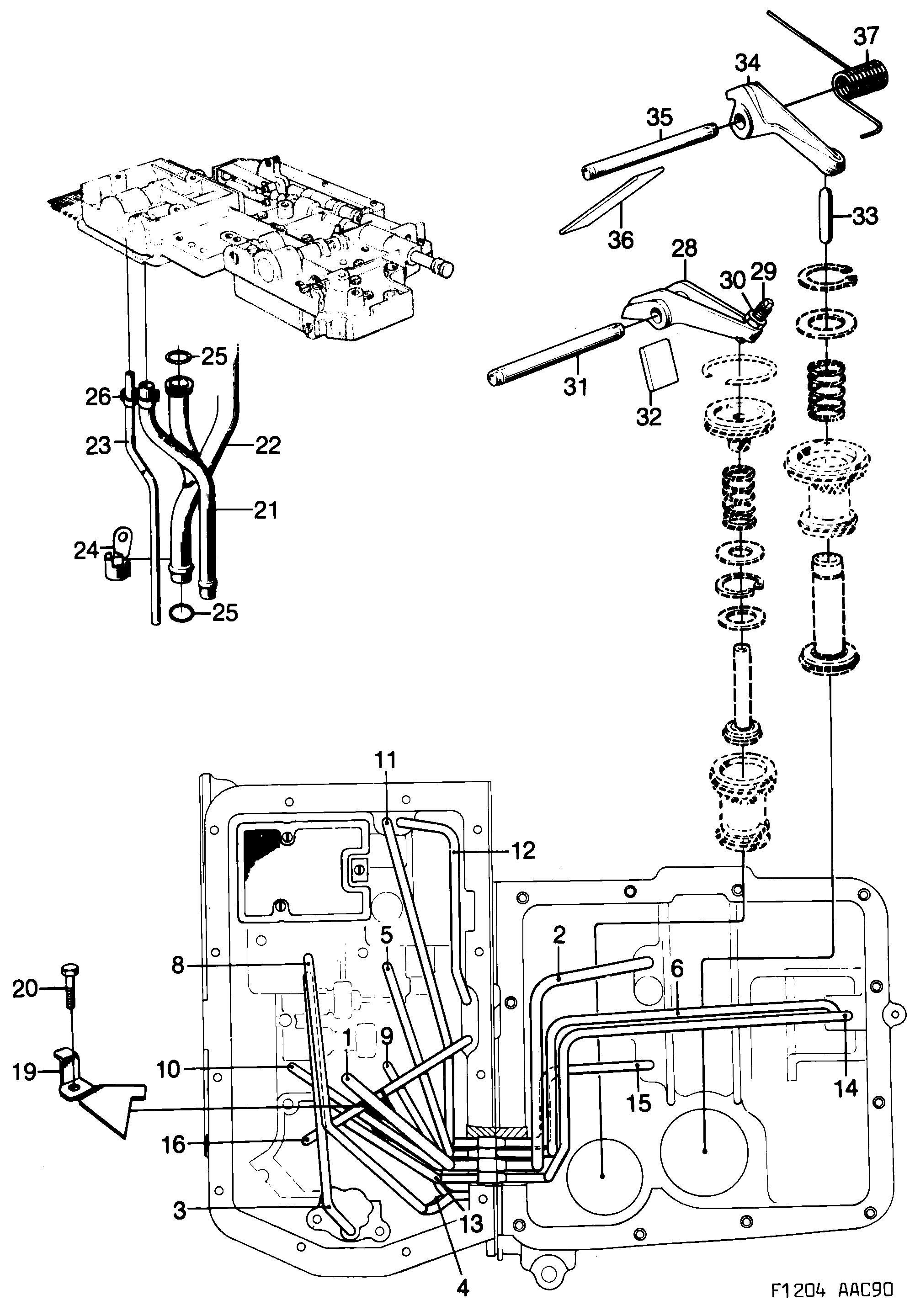

560: Transmission - Gearbox, automatic - Control system - Part 2
(1990 - 1993 | A) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
Gearbox, automaticGear box assembly Gearbox: 01, A | |||
| 1 | 75 42 632 Tube | 1 | |
| 2 | 93 35 241 Tube | 1 | |
| 3 | 75 42 640 Tube | 1 | |
| 4 | 93 35 266 Tube | 1 | |
| 5 | 93 35 324 Tube | 1 | |
| 6 | 93 35 340 Tube | 1 | |
| 8 | 75 42 657 Tube | 1 | |
| 9 | 93 35 290 Tube | 1 | |
| 10 | 93 35 308 Tube | 1 | |
| 11 | 93 35 357 Tube | 1 | |
| 12 | 93 35 365 Tube | 1 | |
| 13 | 75 10 423 Tube | 1 | |
| 14 | 75 10 431 Tube | 1 | |
| 15 | 93 35 373 Tube | 1 | |
| 16 | 93 35 381 Tube | 1 | |
| 19 | 93 48 178 Brace | 1 | |
| 20 | 93 62 328 Screw | 1 | |
| 21 | 87 09 164 Tube | 1 | |
| 22 | 75 42 251 Tube | 1 | |
| 23 | 93 34 749 Tube | 1 | |
| 24 | 83 32 595 Clamp | 1 | |
| 25 | 87 05 733 O-ring | 2 | |
| 26 | 87 08 760 Clamp | 1 | |
| 28 | 87 06 038 Arm | 1 | |
| 29 | 87 06 046 Adjustment screw | 1 | |
| 30 | 93 34 814 Nut | 1 | |
| 31 | 87 06 061 Shaft | 1 | |
| 32 | 93 47 949 Pressure plate | 1 | |
| 33 | 87 06 103 Push rod | 1 | |
| 34 | 93 34 822 Lever 1990-1990 | 1 | |
| 35 | 87 06 061 Shaft | 1 | |
| 36 | 87 05 220 Link | 1 | |
| 37 | 75 44 844 Spring | 1 | |
75 11 470 Pipe set | 1 |
