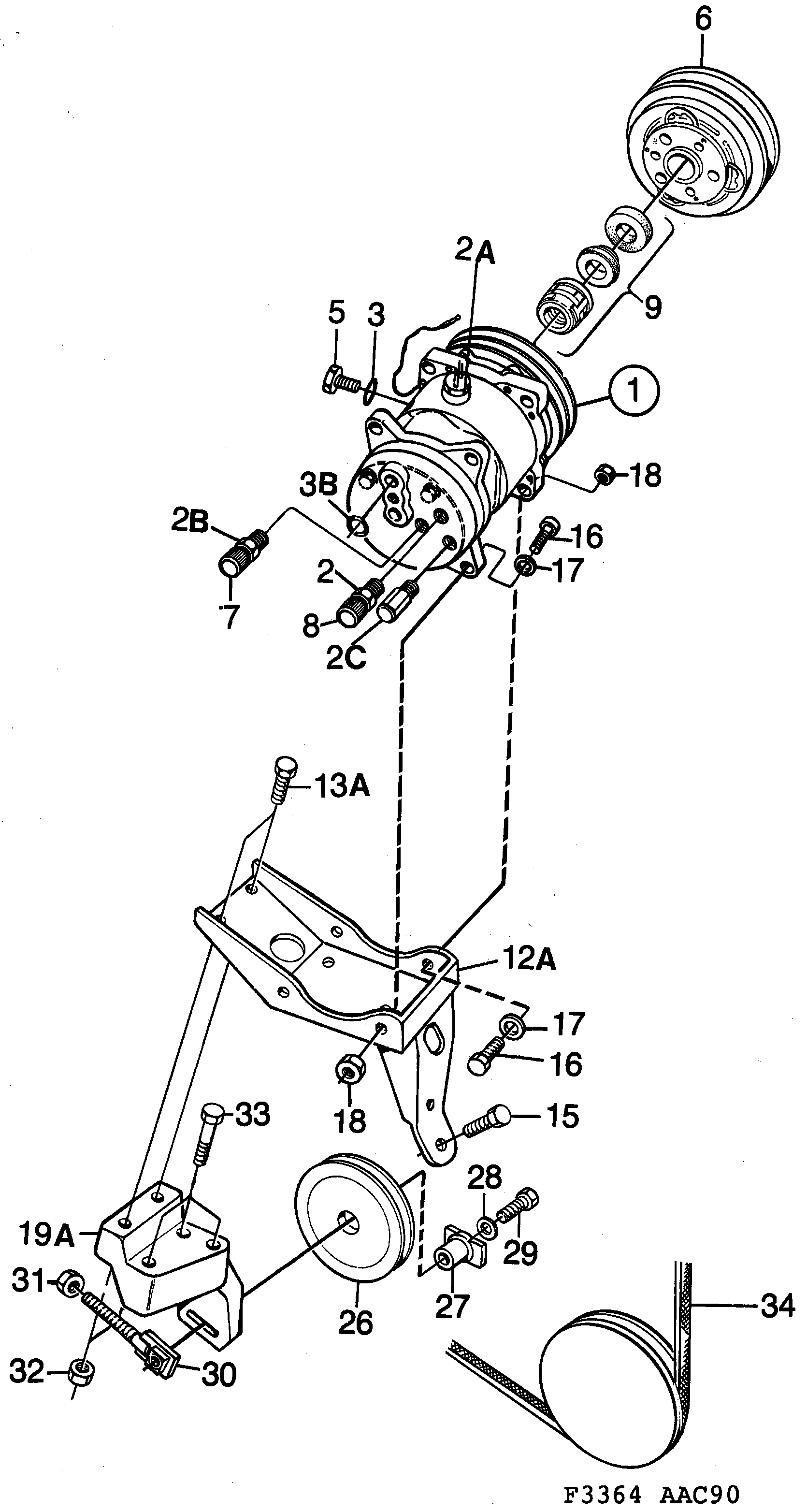

260: Heating and ventilation - AC compressor
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 40 70 827 Compressor -1990 • 01 | 1 | |
| 1 | 40 73 995 Compressor 1990- • 01 | 1 | |
Converted AC-systemHeating and ventilation 01 | |||
| 2 | 40 71 411 Valve 01 | 1 | |
| 2A | 94 81 995 Switch 01 | 1 | |
| 2B | 94 82 225 Valve 01 | 1 | |
| 2C | 40 70 835 Valve 01 | 1 | |
| 3 | 94 82 217 Seal 01 | 1 | |
| 3B | 79 72 318 O-ring 01 | 2 | |
| 5 | 94 82 209 Plug 01 | 1 | |
| 6 | 94 81 987 Clutch 01 | 1 | |
| 7 | 40 71 593 Plug 01 • Brown | 1 | |
| 8 | 40 71 585 Plug 01 • Black | 1 | |
| 9 | 40 74 944 Sealing kit -1990 • 01 | 1 | |
| 12A | 75 49 439 Bracket 01 | 1 | |
| 13A | 79 75 238 30 509 216 Screw 01 | 2 | |
| 15 | 93 39 615 Screw 01 | 1 | |
| 16 | 79 75 030 Screw 01 | 4 | |
| 17 | 80 73 108 Washer 01 | 4 | |
| 18 | 79 67 979 Nut 01 | 4 | |
| 19A | 75 43 556 Arm 01 | 1 | |
| 26 | 93 25 663 41 18 964 Pulley -1990 • 01 | 1 | |
| 26 | 41 18 964 Pulley 1990- • 01 | 1 | |
| 27 | 75 43 614 Pin 01 | 1 | |
| 28 | 79 77 440 Washer 01 | 1 | |
| 29 | 80 83 974 Screw 01 | 1 | |
| 30 | 75 43 606 Screw 01 | 1 | |
| 31 | 79 71 922 92 150 143 Nut 01 | 1 | |
| 32 | 79 67 953 11 900 429 Nut 01 | 2 | |
| 33 | 79 75 238 30 509 216 Screw 01 | 3 | |
| 34 | 93 67 020 Belt, v ribbed 01 | 1 | |
94 82 043 Oil 01 | 1 | ||
Air conditioning kitHeating and ventilation 01 | X |
