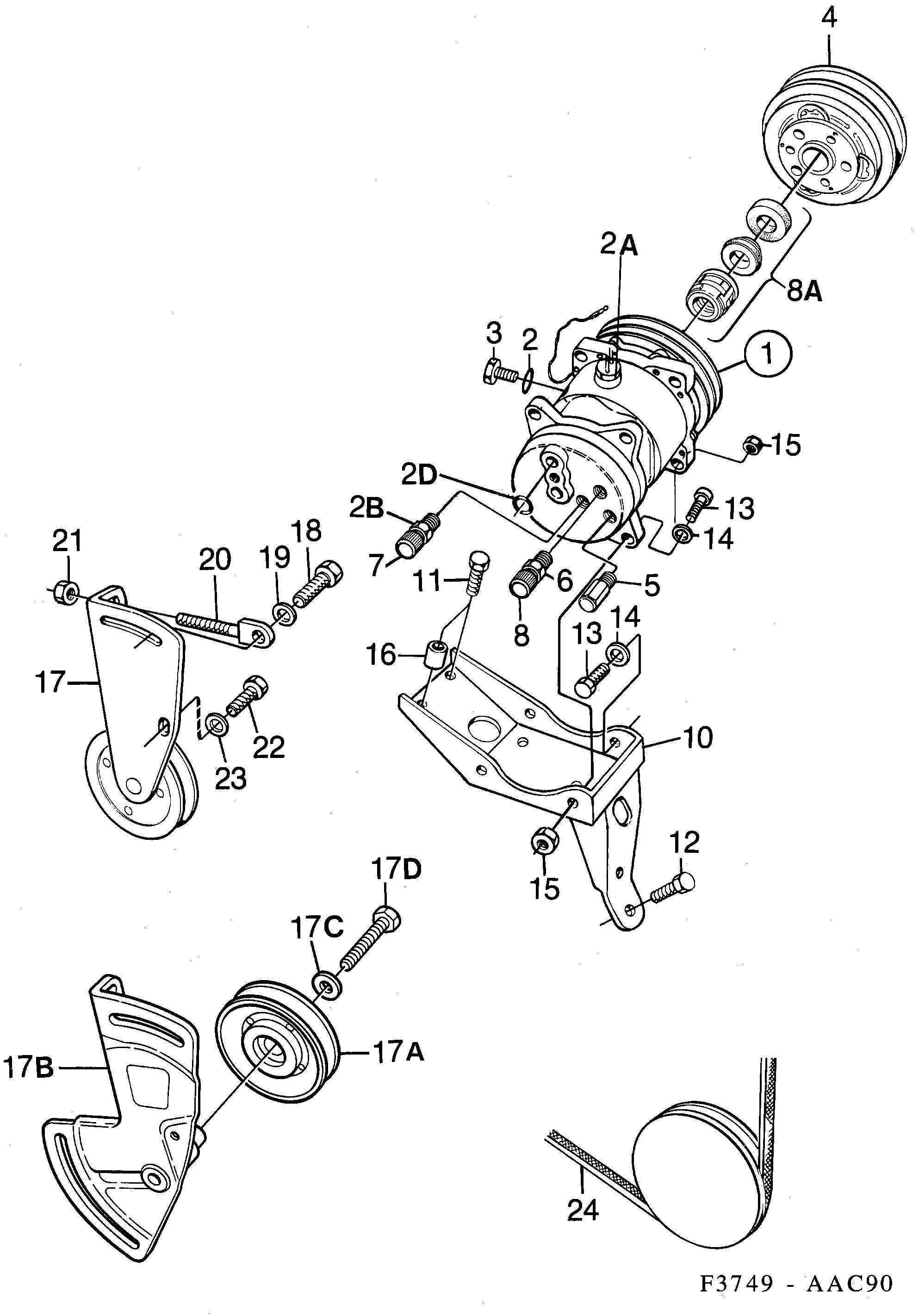

Pos.	Part No.	Description	Usage	Qty
1	40 70 827 Compressor -1990 • 05, 19	Compressor	-1990 05, 19	1
1	40 73 995 Compressor 1990-1990 • 05, 19	Compressor	1990-1990 05, 19	1
	Converted AC-systemHeating and ventilation 05, 19	Converted AC-systemHeating and ventilation 05, 19
2	94 82 217 Seal 05, 19	Seal	05, 19	1
2A	94 81 995 Switch 05, 19	Switch	05, 19	1
2B	94 82 225 Valve 05, 19	Valve	05, 19	1
2D	79 72 318 O-ring 05, 19	O-ring	05, 19	2
3	94 82 209 Plug 05, 19	Plug	05, 19	1
4	94 81 987 Clutch -1990 • 05, 19	Clutch	-1990 05, 19	1
4	40 73 227 Clutch 1990- • 05, 19	Clutch	1990- 05, 19	1
5	40 70 835 Valve 05, 19	Valve	05, 19	1
6	40 71 411 Valve 05, 19	Valve	05, 19	1
7	40 71 593 Plug 05, 19 • Brown	Plug	05, 19 Brown	1
8	40 71 585 Plug 05, 19 • Black	Plug	05, 19 Black	1
8A	40 74 944 Sealing kit -1990 • 05, 19	Sealing kit	-1990 05, 19	1
10	75 49 439 Bracket 1990-1990 • 05, 19	Bracket	1990-1990 05, 19	1
11	80 98 113 Screw 05, 19	Screw	05, 19	2
12	93 39 615 Screw 05, 19	Screw	05, 19	1
13	79 75 030 Screw 05, 19	Screw	05, 19	4
14	80 73 108 Washer 05, 19	Washer	05, 19	4
15	79 67 979 Nut 05, 19	Nut	05, 19	4
16	83 56 859 Sleeve 05, 19	Sleeve	05, 19	2
17	75 42 228 Tension pulley -1991 • 05, 19	Tension pulley	-1991 05, 19	1
18	80 82 968 55 562 873 Screw 1990-1992 • 05, 19	Screw	1990-1992 05, 19	1
19	80 29 985 92 153 033 Washer 1990-1992 • 05, 19	Washer	1990-1992 05, 19	1
20	75 12 247 42 83 198 Screw -1991 • 05, 19	Screw	-1991 05, 19	1
21	80 74 288 11 900 440 Nut 1990-1992 • 05, 19	Nut	1990-1992 05, 19	1
22	80 82 943 Screw 05, 19	Screw	05, 19	1
23	80 73 249 55 564 926 Washer -1991 • 05, 19	Washer	-1991 05, 19	1
24	93 67 020 Belt, v ribbed 05, 19	Belt, v ribbed	05, 19	1
	94 82 043 Oil 05, 19	Oil	05, 19	1
	Air conditioning kitHeating and ventilation 05, 19	Air conditioning kitHeating and ventilation 05, 19			X

Pos.	Part No.	Description	Usage	Qty
1	40 70 827 Compressor -1990 • 05, 19	Compressor	-1990 05, 19	1
1	40 73 995 Compressor 1990-1990 • 05, 19	Compressor	1990-1990 05, 19	1
	Converted AC-systemHeating and ventilation 05, 19	Converted AC-systemHeating and ventilation 05, 19
2	94 82 217 Seal 05, 19	Seal	05, 19	1
2A	94 81 995 Switch 05, 19	Switch	05, 19	1
2B	94 82 225 Valve 05, 19	Valve	05, 19	1
2D	79 72 318 O-ring 05, 19	O-ring	05, 19	2
3	94 82 209 Plug 05, 19	Plug	05, 19	1
4	94 81 987 Clutch -1990 • 05, 19	Clutch	-1990 05, 19	1
4	40 73 227 Clutch 1990- • 05, 19	Clutch	1990- 05, 19	1
5	40 70 835 Valve 05, 19	Valve	05, 19	1
6	40 71 411 Valve 05, 19	Valve	05, 19	1
7	40 71 593 Plug 05, 19 • Brown	Plug	05, 19 Brown	1
8	40 71 585 Plug 05, 19 • Black	Plug	05, 19 Black	1
8A	40 74 944 Sealing kit -1990 • 05, 19	Sealing kit	-1990 05, 19	1
10	75 49 439 Bracket 1990-1990 • 05, 19	Bracket	1990-1990 05, 19	1
11	80 98 113 Screw 05, 19	Screw	05, 19	2
12	93 39 615 Screw 05, 19	Screw	05, 19	1
13	79 75 030 Screw 05, 19	Screw	05, 19	4
14	80 73 108 Washer 05, 19	Washer	05, 19	4
15	79 67 979 Nut 05, 19	Nut	05, 19	4
16	83 56 859 Sleeve 05, 19	Sleeve	05, 19	2
17	75 42 228 Tension pulley -1991 • 05, 19	Tension pulley	-1991 05, 19	1
18	80 82 968 55 562 873 Screw 1990-1992 • 05, 19	Screw	1990-1992 05, 19	1
19	80 29 985 92 153 033 Washer 1990-1992 • 05, 19	Washer	1990-1992 05, 19	1
20	75 12 247 42 83 198 Screw -1991 • 05, 19	Screw	-1991 05, 19	1
21	80 74 288 11 900 440 Nut 1990-1992 • 05, 19	Nut	1990-1992 05, 19	1
22	80 82 943 Screw 05, 19	Screw	05, 19	1
23	80 73 249 55 564 926 Washer -1991 • 05, 19	Washer	-1991 05, 19	1
24	93 67 020 Belt, v ribbed 05, 19	Belt, v ribbed	05, 19	1
	94 82 043 Oil 05, 19	Oil	05, 19	1
	Air conditioning kitHeating and ventilation 05, 19	Air conditioning kitHeating and ventilation 05, 19			X
