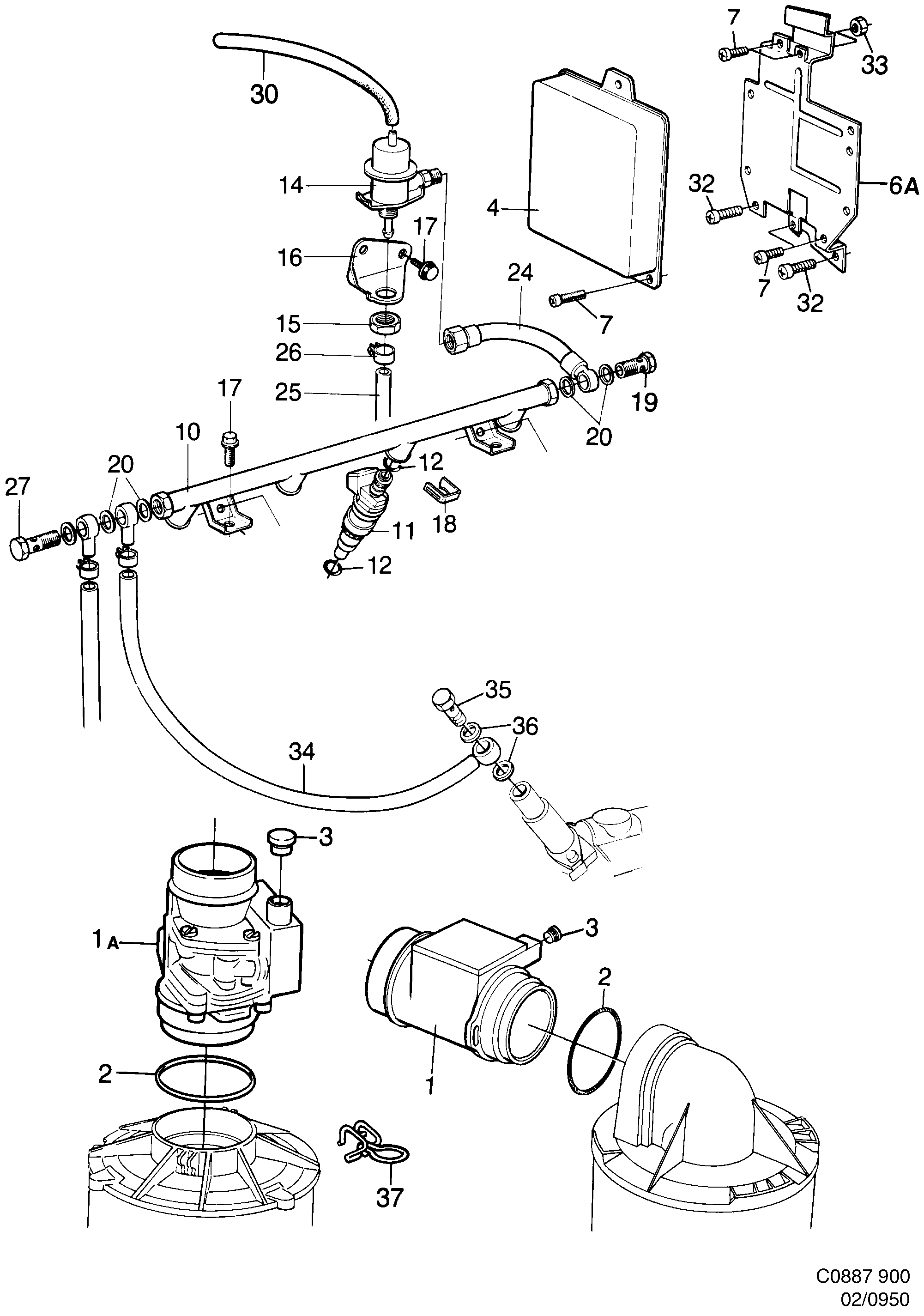

950: Engine - Fuel system - Mass air flow sensor

(1990 - 1993) | For 900 (1991)

Also valid for CV 1994

100%

(N°920)

Section 950

(N°980)

Pos.	Part No.	Description	Usage	Qty
1	75 38 655 Mass air flow sensor 05 • With catalytic converter. Also...	Mass air flow sensor	05 With catalytic converter. Also...	1
1	89 78 280 Mass air flow sensor 05 • Without catalytic converter.	Mass air flow sensor	05 Without catalytic converter.	1
1A	89 77 621 Mass air flow sensor 05 • Cars with Lucas injection...	Mass air flow sensor	05 Cars with Lucas injection...	1
2	79 74 306 O-ring 05	O-ring	05	1
2	79 78 729 O-ring 05 • Cars with Lucas injection...	O-ring	05 Cars with Lucas injection...	1
3	75 25 710 Plug 05	Plug	05	1
3	75 25 702 Plug 05 • Cars with Lucas injection...	Plug	05 Cars with Lucas injection...	1
4	74 87 119 Electronic unit TURBO • Without catalytic converter. Also...	Electronic unit	TURBO Without catalytic converter. Also...	1
4	78 72 328 Electronic unit 1991-1993 • TURBO • Without catalytic converter. Also...	Electronic unit	1991-1993 TURBO Without catalytic converter. Also...	1
4	91 19 454 Electronic unit -1991 • TURBO • With catalytic converter. Also...	Electronic unit	-1991 TURBO With catalytic converter. Also...	1
4	91 19 462 Electronic unit -1991 • TURBO, B202I • With catalytic converter. Also...	Electronic unit	-1991 TURBO, B202I With catalytic converter. Also...	1
4	43 00 083 Electronic unit 1991- • TURBO • With catalytic converter. Also...	Electronic unit	1991- TURBO With catalytic converter. Also...	1
4	78 72 336 Electronic unit 1991-1993 • TURBO, B202S • With catalytic converter. Also...	Electronic unit	1991-1993 TURBO, B202S With catalytic converter. Also...	1
4	91 14 703 Electronic unit B202I • Without catalytic converter. Also...	Electronic unit	B202I Without catalytic converter. Also...	1
4	89 75 443 Electronic unit B202I • Without catalytic converter. Also...	Electronic unit	B202I Without catalytic converter. Also...	1
4	91 19 447 Electronic unit B202I • With catalytic converter. Also...	Electronic unit	B202I With catalytic converter. Also...	1
6A	40 23 107 Bracket 05	Bracket	05	1
6A	93 98 207 Bracket 05	Bracket	05	1
7	80 59 396 Screw 05 • For TURBO without catalytic...	Screw	05 For TURBO without catalytic...	3
7	79 77 283 Screw 05 • For I without catalytic...	Screw	05 For I without catalytic...	3
10	75 06 611 Tube 05	Tube	05	1
11	74 87 010 Injection valve TURBO • Also available as exchange...	Injection valve	TURBO Also available as exchange...	4
11	78 72 351 Injection valve 1991-1993 • 05 • Cars with Lucas injection...	Injection valve	1991-1993 05 Cars with Lucas injection...	4
11	74 87 028 Injection valve I	Injection valve	I	4
12	75 61 210 O-ring 05	O-ring	05	9
14	74 85 030 Regulator 05 • Cars with Lucas injection...	Regulator	05 Cars with Lucas injection...	1
14	91 65 911 Regulator B202R • Cars with Lucas injection...	Regulator	B202R Cars with Lucas injection...	1
14	75 64 123 Regulator I	Regulator	I	1
14	75 64 131 Regulator TURBO	Regulator	TURBO	1
14	75 68 041 Regulator B202R	Regulator	B202R	1
15	81 51 177 Nut 05	Nut	05	1
16	74 85 964 Bracket 05	Bracket	05	1
17	81 25 148 Screw 05	Screw	05	4
18	93 56 486 Clamp 05	Clamp	05	4
19	81 23 895 92 150 976 Screw 05	Screw	05	1
20	89 81 979 44 43 883 Seal 05	Seal	05	4
24	75 64 339 Hose 05	Hose	05	1
25	75 11 702 Hose 05	Hose	05	1
26	79 68 308 Hose clamp 05	Hose clamp	05	2
27	83 19 915 12 794 638 Banjo bolt 05	Banjo bolt	05	1
30	91 36 243 Vacuum hose 05 • L=565 MM \| For...	Vacuum hose	05 L=565 MM \| For...	1
32	79 22 818 Screw 05	Screw	05	2
32	79 22 891 Screw 05 • LUCAS	Screw	05 LUCAS	2
33	79 73 365 92 150 136 Nut 05	Nut	05	2
34	89 81 342 Fuel pipe 05 • For I with catalytic...	Fuel pipe	05 For I with catalytic...	1
35	83 20 319 Banjo bolt 05 • For I with catalytic...	Banjo bolt	05 For I with catalytic...	1
36	89 81 987 Seal 05 • For I with catalytic...	Seal	05 For I with catalytic...	2
37	89 76 490 Clamp 05	Clamp	05	2
	91 36 243 Vacuum hose 05 • L=5000 MM \| Sold...	Vacuum hose	05 L=5000 MM \| Sold...	X
