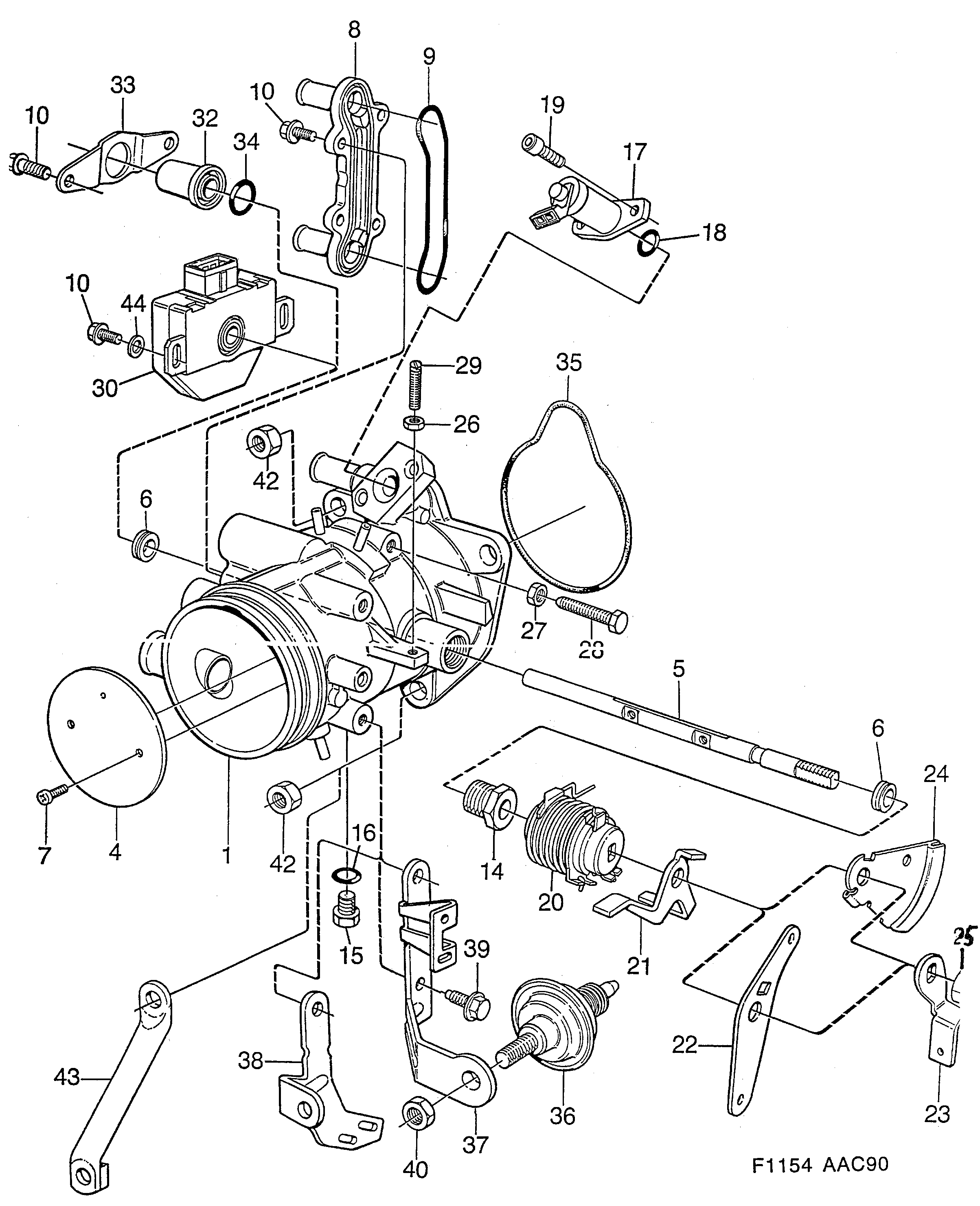

1130: Engine - Intake and exhaust system - Throttle body
(1990 - 1993) | For 900 (1992)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 74 84 694 Throttle body 03 • For cars with EGR. | 1 | |
| 1 | 74 84 702 Throttle body 03 • With catalytic converter. | 1 | |
| 4 | 83 53 484 Throttle valve, shutter 03 | 1 | |
| 5 | 78 72 807 91 07 624 Throttle shaft 1990- • 03 | 1 | |
| 6 | 83 57 345 Seal 03 • With catalytic converter. | 2 | |
| 7 | 80 57 259 Screw 1990- • 03 | 2 | |
| 8 | 75 05 423 Cover 03 | 1 | |
| 9 | 75 06 264 O-ring 03 | 1 | |
| 10 | 75 07 080 79 85 187 Screw 03 | 6 | |
| 14 | 93 59 050 Plug 03 | 1 | |
| 15 | 75 62 739 Plug 03 | 1 | |
| 16 | 80 46 559 79 74 546 O-ring 1990-1992 • 03 | 1 | |
| 17 | 93 12 471 Valve 03 | 1 | |
| 18 | 80 46 542 O-ring 03 | 1 | |
| 19 | 75 07 072 Screw 03 | 2 | |
| 20 | 75 16 974 Return spring 03 | 1 | |
| 21 | 75 62 390 Lever 03 | 1 | |
| 22 | 75 64 396 Lever 03 | 1 | |
| 23 | 75 62 010 Lever 03 | 1 | |
| 24 | 93 09 261 Cam disc 03 | 1 | |
| 25 | 80 74 288 11 900 440 Nut 1990-1992 • 03 | 1 | |
| 26 | 81 51 045 Nut 03 | 1 | |
| 27 | 81 51 052 Nut 03 | 1 | |
| 28 | 83 57 378 Screw 03 | 1 | |
| 29 | 80 07 486 40 87 706 Set screw 03 | 1 | |
| 30 | 75 01 612 Potentiometer 03 • With catalytic converter. | 1 | |
| 32 | 75 07 098 Cover 03 | 1 | |
| 33 | 75 07 106 Bracket 03 | 1 | |
| 34 | 80 48 829 O-ring 03 | 1 | |
| 35 | 75 21 875 O-ring 03 | 1 | |
| 36 | 93 11 895 Damper 03 | 1 | |
| 37 | 75 18 889 Bracket 03 | 1 | |
| 38 | 75 62 044 Bracket 03 • With catalytic converter. | 1 | |
| 39 | 79 71 294 Screw 03 | 2 | |
| 40 | 80 69 015 Nut 03 | 1 | |
| 42 | 81 51 326 11 900 429 Nut 03 | 3 | |
| 43 | 75 17 402 Brace 03 | 1 | |
| 44 | 80 29 936 32 000 431 Washer 1990-1992 • 03 • With catalytic converter. | 2 |
