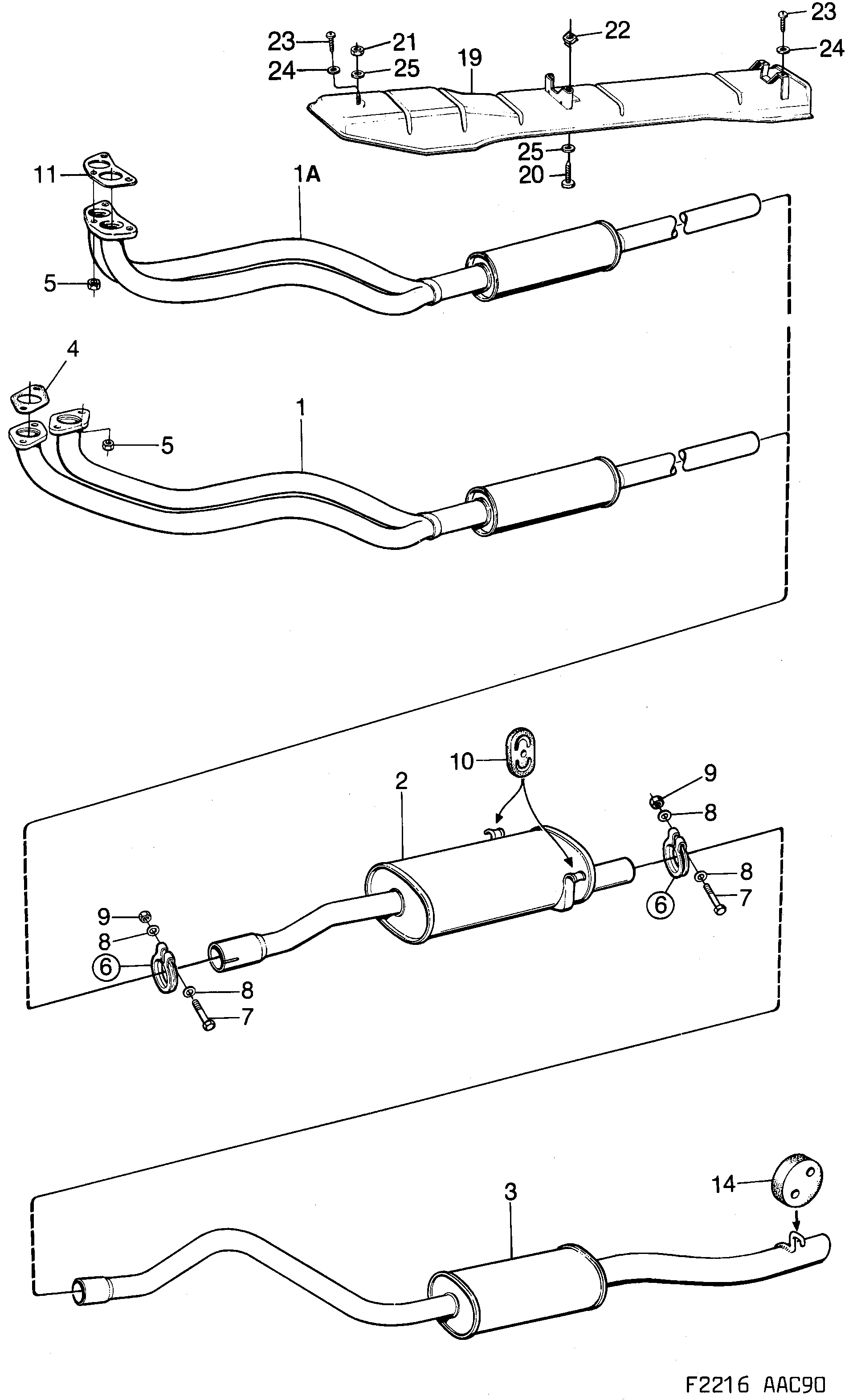

1490: Engine - Intake and exhaust system - Exhaust system
(1990 - 1993) | For 900 (1992)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 27 385 54 66 776 Silencer 02, 03 • For cars without EGR. | 1 | |
| 1A | 75 28 078 Silencer 02, 03 • For cars with EGR. | 1 | |
| 2 | 54 66 198 Silencer 02, 03 • (8822272) | 1 | |
| 3 | 54 66 180 Silencer 02, 03 • (8822181) | 1 | |
| 4 | 83 87 672 89 80 328 Gasket 02, 03 | 2 | |
| 5 | 79 67 870 79 79 503 Nut 02, 03 • For cars without EGR. | 4 | |
| 6 | 83 86 450 Clamp 02, 03 | 2 | |
| 7 | 80 84 014 32 000 289 Screw 02, 03 | 1 | |
| 8 | 93 19 047 Washer 02, 03 | 2 | |
| 9 | 81 51 060 Nut 02, 03 | 1 | |
| 10 | 93 28 105 Rubber mounting 02, 03 | 2 | |
| 11 | 75 28 136 Gasket 02, 03 • For cars with EGR. | 1 | |
| 14 | 93 65 404 Rubber mounting 02, 03 | 1 | |
| 19 | 40 21 598 Shield 1990- • 02, 03 | 1 | |
| 20 | 93 68 218 Screw 02, 03 | 2 | |
| 22 | 79 70 429 Cage nut 02, 03 | 2 | |
| 23 | 79 22 503 Screw 1990-1990 • 02, 03 | 2 | |
| 24 | 80 29 951 Washer 1990-1990 • 02, 03 | 2 | |
| 25 | 80 29 985 92 153 033 Washer 1990-1990 • 02, 03 | 3 | |
88 19 690 | X | ||
75 38 440 | X | ||
88 18 577 | X | ||
93 21 555 | X | ||
43 93 740 | X | ||
43 93 757 | X |
