Question 1

Where to find the exploded diagram for Short block on my Saab 900 1992?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 900 1992. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

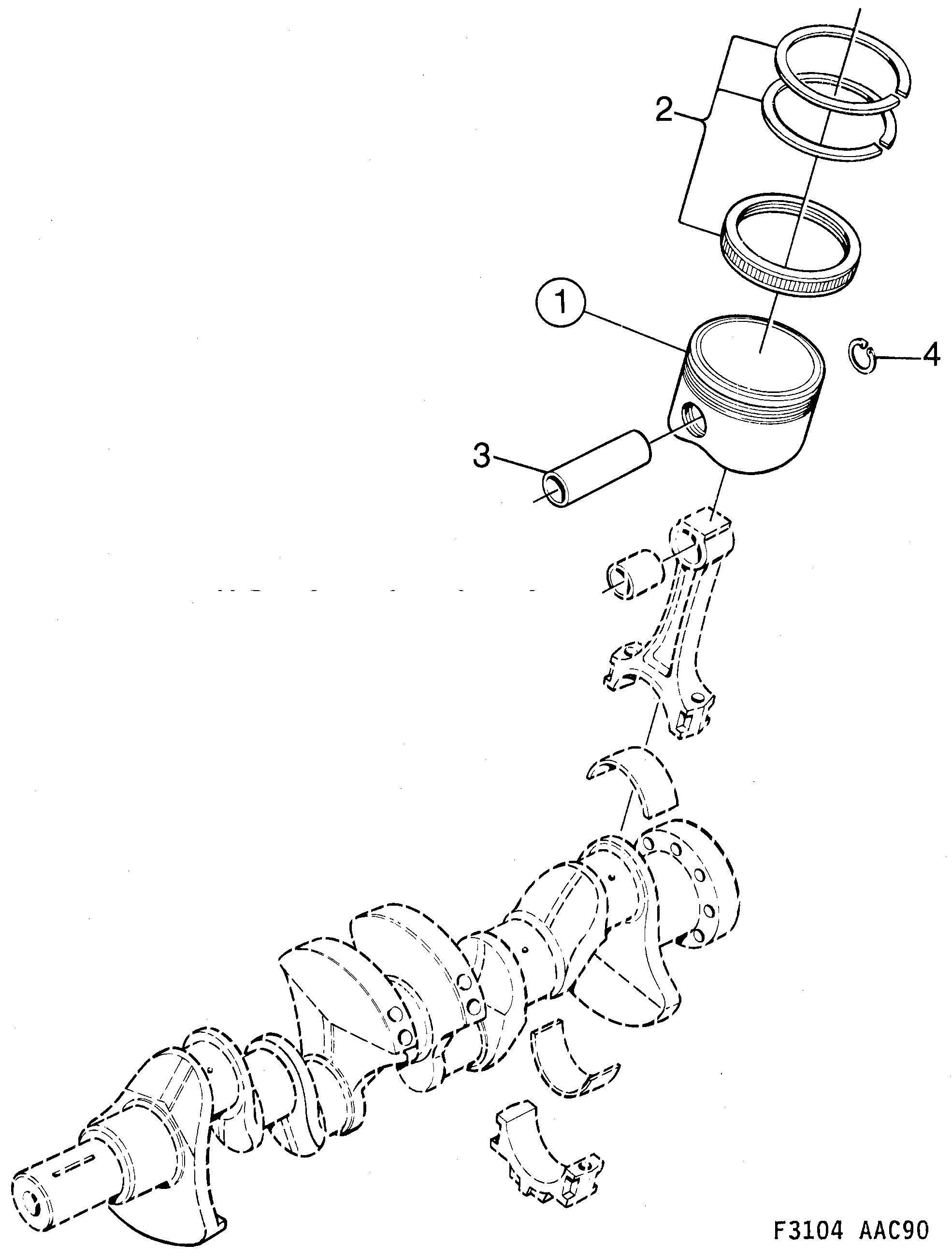

Pos.	Part No.	Description	Usage	Qty
1	91 33 968 30 540 436 Piston 1991- • B212I • CLASS A	Piston	1991- B212I CLASS A	4
1	91 33 976 Piston 1991- • B212I • CLASS B	Piston	1991- B212I CLASS B	4
1	91 33 984 Piston 1991- • B212I • CLASS C	Piston	1991- B212I CLASS C	4
1	91 33 992 Piston 1990-1992 • B212I • 0,50MM \| Oversize.	Piston	1990-1992 B212I 0,50MM \| Oversize.	4
1	91 34 008 Piston 1991- • B212I • 1,0MM \| Oversize.	Piston	1991- B212I 1,0MM \| Oversize.	4
2	93 21 472 Piston rings, set B212I • STD	Piston rings, set	B212I STD	4
2	93 21 480 Piston rings, set B212I • 0,50MM \| Oversize.	Piston rings, set	B212I 0,50MM \| Oversize.	4
2	93 21 498 Piston rings, set B212I • 1,0MM \| Oversize.	Piston rings, set	B212I 1,0MM \| Oversize.	4
3	75 68 934 Gudgeon pin B212I • L=60MM	Gudgeon pin	B212I L=60MM	4
3	91 94 564 Gudgeon pin B212I • L=62MM	Gudgeon pin	B212I L=62MM	4
4	88 59 514 55 557 265 Lock ring B212I	Lock ring	B212I	8

Pos.	Part No.	Description	Usage	Qty
1	91 33 968 30 540 436 Piston 1991- • B212I • CLASS A	Piston	1991- B212I CLASS A	4
1	91 33 976 Piston 1991- • B212I • CLASS B	Piston	1991- B212I CLASS B	4
1	91 33 984 Piston 1991- • B212I • CLASS C	Piston	1991- B212I CLASS C	4
1	91 33 992 Piston 1990-1992 • B212I • 0,50MM \| Oversize.	Piston	1990-1992 B212I 0,50MM \| Oversize.	4
1	91 34 008 Piston 1991- • B212I • 1,0MM \| Oversize.	Piston	1991- B212I 1,0MM \| Oversize.	4
2	93 21 472 Piston rings, set B212I • STD	Piston rings, set	B212I STD	4
2	93 21 480 Piston rings, set B212I • 0,50MM \| Oversize.	Piston rings, set	B212I 0,50MM \| Oversize.	4
2	93 21 498 Piston rings, set B212I • 1,0MM \| Oversize.	Piston rings, set	B212I 1,0MM \| Oversize.	4
3	75 68 934 Gudgeon pin B212I • L=60MM	Gudgeon pin	B212I L=60MM	4
3	91 94 564 Gudgeon pin B212I • L=62MM	Gudgeon pin	B212I L=62MM	4
4	88 59 514 55 557 265 Lock ring B212I	Lock ring	B212I	8

410: Engine - Short block - Piston
