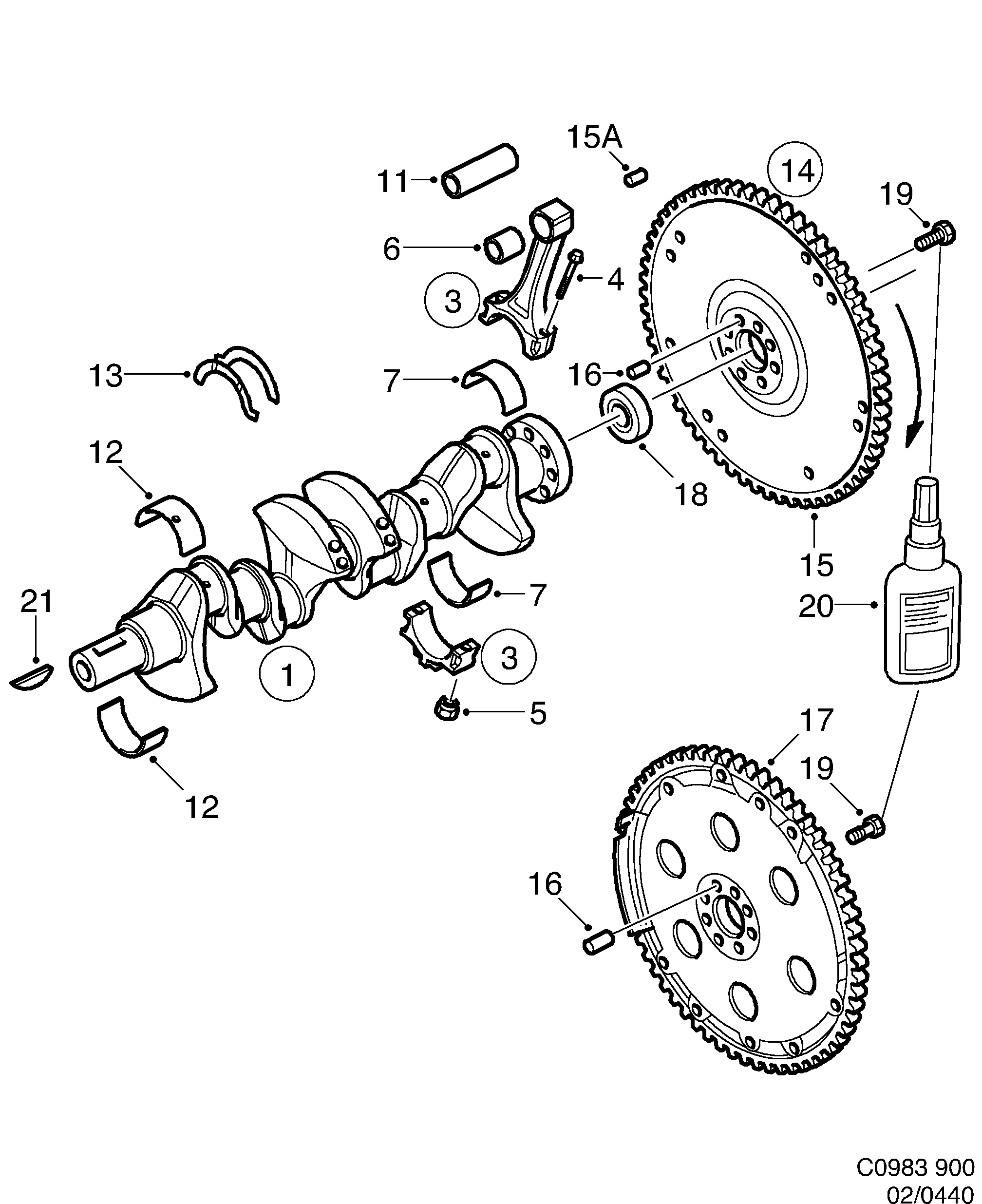

440: Engine - Short block - Crankshaft

(1990 - 1993) | For 900 (1992)

Also valid for CV 1994

100%

(N°410)

Section 440

(N°470)

Pos.	Part No.	Description	Usage	Qty
	87 87 228 Crankshaft PART OF 9321589	Crankshaft	PART OF 9321589	1
	78 56 172 Spacer PART OF 9321589	Spacer	PART OF 9321589	1
	91 16 443 Screw PART OF 9321589	Screw	PART OF 9321589	1
	91 16 864 30 520 452 Key PART OF 9321589	Key	PART OF 9321589	1
1	87 87 228 Crankshaft 1991-1993	Crankshaft	1991-1993	1
3	75 62 259 46 11 182 Connecting rod	Connecting rod		4
4	75 21 255 Screw	Screw		8
5	75 62 275 Nut	Nut		8
6	83 47 676 Bushing	Bushing		4
7	83 47 650 Connecting rod bearing Red	Connecting rod bearing	Red	8
7	83 55 349 Connecting rod bearing Blue	Connecting rod bearing	Blue	8
7	83 49 938 Connecting rod bearing 0,25MM \| Undersize. Yellow	Connecting rod bearing	0,25MM \| Undersize. Yellow	8
7	83 55 356 Connecting rod bearing 0,25MM \| Undersize. Green	Connecting rod bearing	0,25MM \| Undersize. Green	8
7	83 49 946 Connecting rod bearing 0,50MM \| Undersize. White	Connecting rod bearing	0,50MM \| Undersize. White	8
7	83 55 364 Connecting rod bearing 0,50MM \| Undersize. Brown	Connecting rod bearing	0,50MM \| Undersize. Brown	8
7	83 49 953 Connecting rod bearing 0,75MM \| Undersize.	Connecting rod bearing	0,75MM \| Undersize.	8
7	83 49 961 Connecting rod bearing 1,0MM \| Undersize.	Connecting rod bearing	1,0MM \| Undersize.	8
11	Gudgeon pinShort block B201	Gudgeon pinShort block B201
11	Gudgeon pinShort block B202	Gudgeon pinShort block B202
11	Gudgeon pinShort block B212	Gudgeon pinShort block B212
12	83 50 936 Main bearing Red	Main bearing	Red	10
12	83 55 315 Main bearing Blue	Main bearing	Blue	10
12	83 50 977 Main bearing 0,25MM \| Undersize. Yellow	Main bearing	0,25MM \| Undersize. Yellow	10
12	83 55 323 Main bearing 0,25MM \| Undersize. Green	Main bearing	0,25MM \| Undersize. Green	10
12	83 50 985 Main bearing 0,50MM \| Undersize. White	Main bearing	0,50MM \| Undersize. White	10
12	83 55 331 Main bearing 0,50MM \| Undersize. Brown	Main bearing	0,50MM \| Undersize. Brown	10
12	83 50 993 Main bearing 0,75MM \| Undersize.	Main bearing	0,75MM \| Undersize.	10
12	83 51 009 Main bearing 1,0 MM \| Undersize.	Main bearing	1,0 MM \| Undersize.	10
13	83 47 270 Thrust washer	Thrust washer		2
14	83 62 386 Flywheel	Flywheel		1
14	74 87 184 Flywheel TURBO	Flywheel	TURBO	1
15	83 65 058 Gear ring	Gear ring		1
15A	80 34 142 Pin	Pin		1
16	80 34 928 Pin	Pin		1
17	93 50 034 Companion disc 1991-1993	Companion disc	1991-1993	1
18	83 46 868 Ball bearing	Ball bearing		1
19	88 59 191 Screw	Screw		7
19	88 59 209 Screw	Screw		7
20	74 96 292 Nut lock 50 ML \| strong...	Nut lock	50 ML \| strong...	X
21	KeyShort block	KeyShort block
