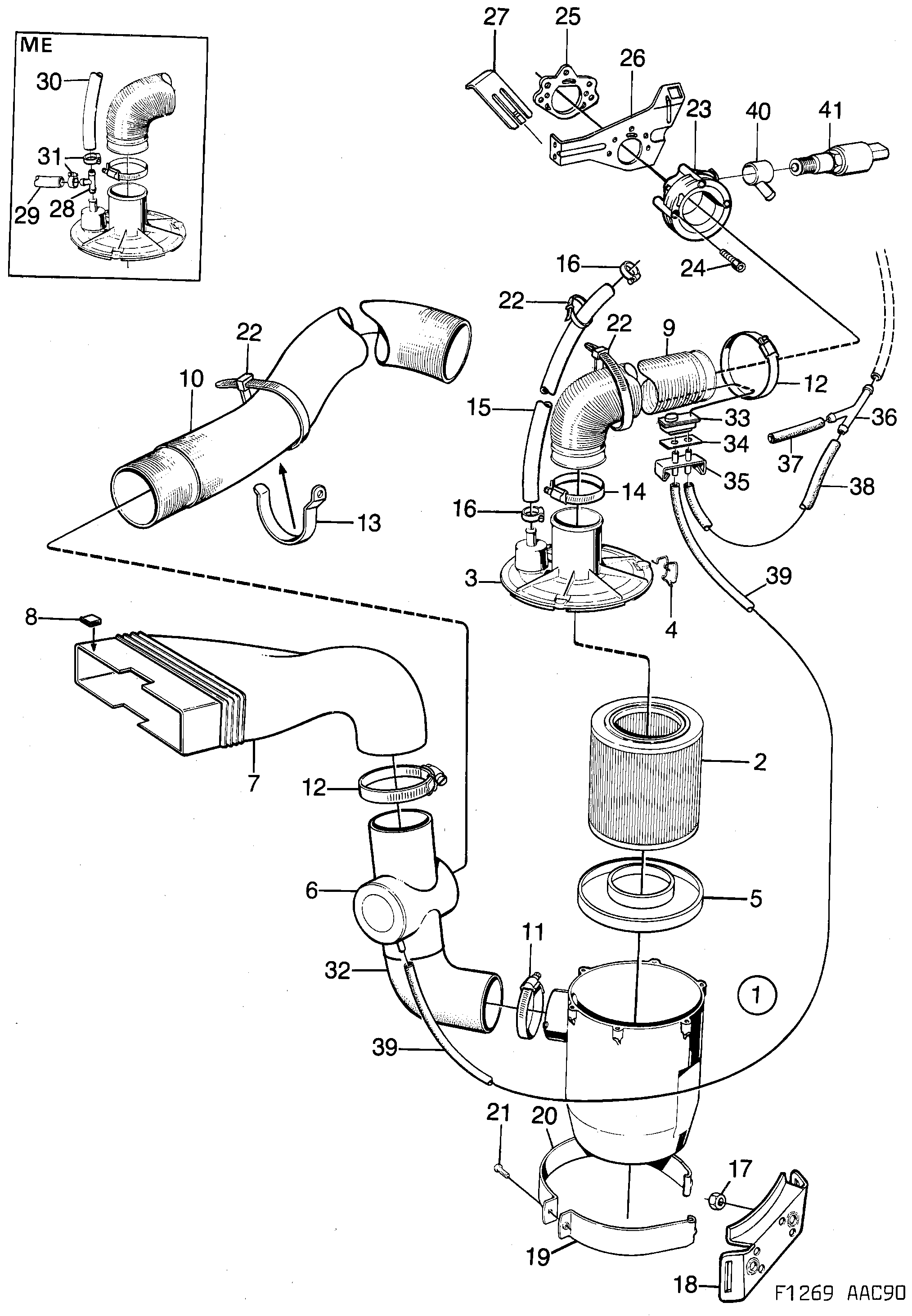

560: Engine - Fuel system - Air cleaner - carburettor engine
(1990 - 1993) | For 900 (1992)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 83 17 893 Air cleaner | 1 | |
| 2 | 93 18 502 Air filter | 1 | |
| 3 | 83 27 678 Cover | 1 | |
| 4 | 83 18 339 Clamp | 3 | |
| 5 | 83 17 919 Insert | 1 | |
| 6 | 75 29 852 Throttle body | 1 | |
| 7 | 75 36 576 Tube | 1 | |
| 8 | 93 19 526 Clamp | 4 | |
| 9 | 75 28 698 Pipe end | 1 | |
| 10 | 75 29 845 Hose | 1 | |
| 10 | 75 29 183 Hose | 1 | |
| 11 | 79 70 148 92 153 079 Hose clamp | 2 | |
| 12 | 79 70 163 92 150 224 Hose clamp | 2 | |
| 13 | 93 41 173 Clamp | 1 | |
| 14 | 83 27 561 Clamp | 1 | |
| 15 | 83 26 480 Hose | 1 | |
| 16 | 79 70 064 Hose clamp | 2 | |
| 17 | 81 51 227 Nut | 2 | |
| 18 | 92 88 432 Bracket | 1 | |
| 19 | 83 21 044 Tensioning band | 1 | |
| 20 | 83 21 051 Tensioning band | 1 | |
| 21 | 80 19 945 Screw | 1 | |
| 22 | 79 71 880 11 900 513 Tensioning band | 2 | |
| 23 | 75 80 244 Flange | 1 | |
| 24 | 80 98 139 Screw | 3 | |
| 25 | 75 06 959 Gasket | 2 | |
| 26 | 75 80 574 Bracket | 1 | |
| 27 | 93 62 542 Plate | 1 | |
| 28 | 83 17 828 Nipple | 1 | |
| 29 | 75 26 429 Hose | 1 | |
| 30 | 75 26 411 Hose | 1 | |
| 31 | 79 75 543 Hose clamp | 2 | |
| 32 | 75 29 860 Pipe end | 1 | |
| 33 | 75 36 931 Vacuum valve | 1 | |
| 34 | 75 29 886 Seal | 1 | |
| 35 | 75 29 894 Clip | 1 | |
| 36 | 85 09 002 Tube | 1 | |
| 37 | 91 36 243 Vacuum hose L=40 MM | Sold... | 1 | |
| 38 | 91 36 243 Vacuum hose L=400 MM | Sold... | 1 | |
| 39 | 91 36 243 Vacuum hose L=670 MM | Sold... | 1 | |
| 40 | 75 80 582 Nipple | 1 | |
| 41 | 75 81 317 Solenoid valve | 1 | |
91 36 243 Vacuum hose L=5000 MM | Sold... | X |
