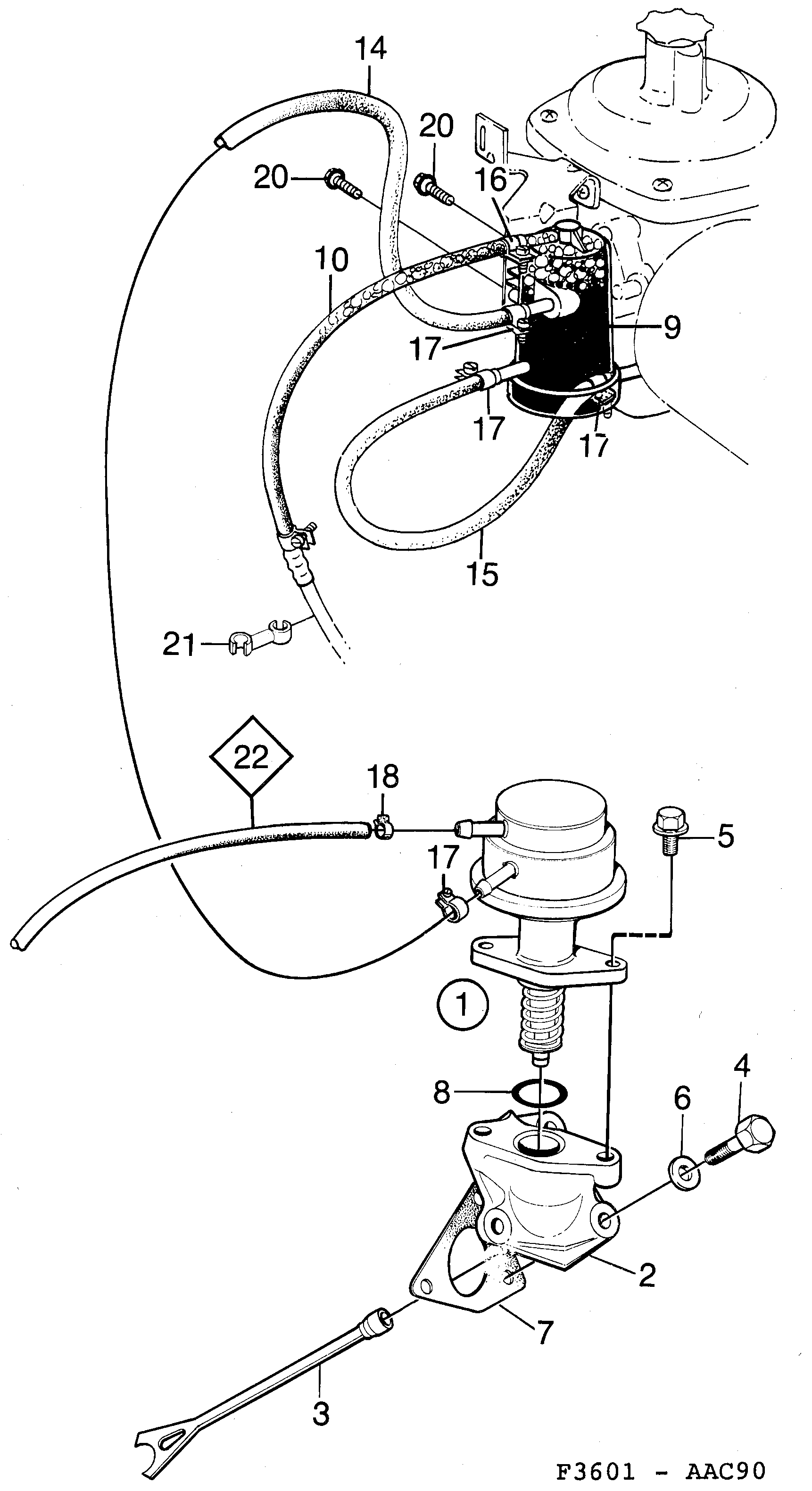

710: Engine - Fuel system - Fuel pump - carburettor engine
(1990 - 1993) | For 900 (1992)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 22 733 Fuel pump | 1 | |
| 2 | 93 06 705 Intermediate section | 1 | |
| 3 | 93 12 927 Push rod | 1 | |
| 4 | 91 66 331 Screw (8082968) | 3 | |
| 5 | 81 25 163 Screw | 2 | |
| 6 | 91 66 372 32 000 432 Washer (8029985) | 3 | |
| 7 | 75 66 458 Gasket | 1 | |
| 8 | 80 46 617 O-ring | 1 | |
| 9 | 75 86 795 Separator | 1 | |
| 10 | 93 63 284 Hose | 1 | |
| 14 | 75 04 160 Fuel hose | 1 | |
| 15 | 75 04 111 Hose | 1 | |
| 16 | 79 68 308 Hose clamp 1991-1993 • ALT TO 8975237 | 2 | |
| 17 | 75 03 758 Hose clamp | 4 | |
| 18 | 79 68 308 Hose clamp | 1 | |
| 20 | 75 81 333 Screw | 2 | |
| 21 | 93 45 257 Clip | 1 | |
| 22 | HoseFuel system |
