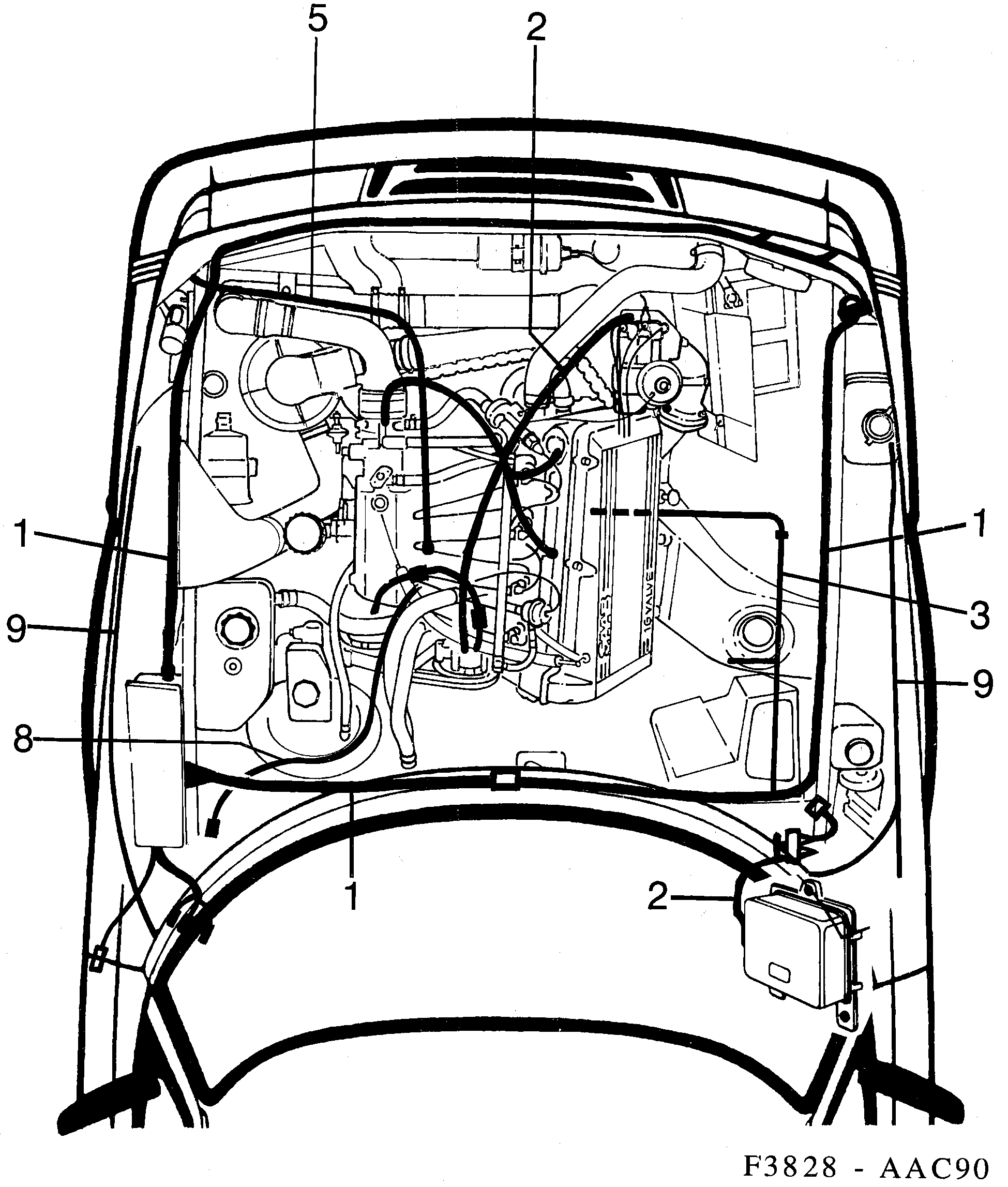

1130: Electrical, general - Wiring and fuses - Front and engine

(1992) | For 900 (1992)

100%

(N°920)

Section 1130

(N°1160)

Pos.	Part No.	Description	Usage	Qty
1	41 75 022 Cable harness B202I • With catalytic converter. With...	Cable harness	B202I With catalytic converter. With...	1
1	41 75 055 Cable harness RHD • B202I • With catalytic converter. With...	Cable harness	RHD B202I With catalytic converter. With...	1
1	41 75 030 Cable harness RHD • B202I • Without catalytic converter. With...	Cable harness	RHD B202I Without catalytic converter. With...	1
1	41 75 071 Cable harness With main fuse box....	Cable harness	With main fuse box....	1
1	41 75 089 Cable harness RHD • With main fuse box....	Cable harness	RHD With main fuse box....	1
1	41 75 048 Cable harness B202I • With catalytic converter. With...	Cable harness	B202I With catalytic converter. With...	1
1	41 75 113 Cable harness B202S • With main fuse box....	Cable harness	B202S With main fuse box....	1
1	41 75 121 Cable harness RHD • B202S • With main fuse box....	Cable harness	RHD B202S With main fuse box....	1
1	41 75 139 Cable harness B202TURBO • With main fuse box....	Cable harness	B202TURBO With main fuse box....	1
1	41 75 147 Cable harness RHD • B202TURBO • With main fuse box....	Cable harness	RHD B202TURBO With main fuse box....	1
1	41 75 097 Cable harness LHD • With main fuse box....	Cable harness	LHD With main fuse box....	1
1	41 75 154 Cable harness LHD • B202TURBO • With main fuse box....	Cable harness	LHD B202TURBO With main fuse box....	1
1	41 75 105 Cable harness With main fuse box....	Cable harness	With main fuse box....	1
1	41 75 162 Cable harness B202TURBO • With main fuse box....	Cable harness	B202TURBO With main fuse box....	1
2	41 10 458 Cable harness B202I • With catalytic converter. engine	Cable harness	B202I With catalytic converter. engine	1
2	91 21 757 Cable harness B202I • Without catalytic converter. engine	Cable harness	B202I Without catalytic converter. engine	1
2	41 76 301 Cable harness B212I • engine	Cable harness	B212I engine	1
2	41 10 060 Cable harness B202TURBO • With catalytic converter. engine	Cable harness	B202TURBO With catalytic converter. engine	1
2	41 10 078 Cable harness B202TURBO • Without catalytic converter. engine	Cable harness	B202TURBO Without catalytic converter. engine	1
2	41 10 466 Cable harness B202TURBO • engine	Cable harness	B202TURBO engine	1
3	85 69 386 Cable lambda sond	Cable	lambda sond	1
4	95 55 905 Cable B+	Cable	B+	1
5	95 61 804 Cable harness knock sensor	Cable harness	knock sensor	1
8	74 78 159 Cable harness Kits LH2.2 \| Without catalytic...	Cable harness Kits	LH2.2 \| Without catalytic...	1
9	46 63 019 Cable harness AIR-BAG,LH \| sensor	Cable harness	AIR-BAG,LH \| sensor	1
9	46 63 027 Cable harness AIR-BAG,RH \| sensor	Cable harness	AIR-BAG,RH \| sensor	1
	AirbagSteering assembly	AirbagSteering assembly
