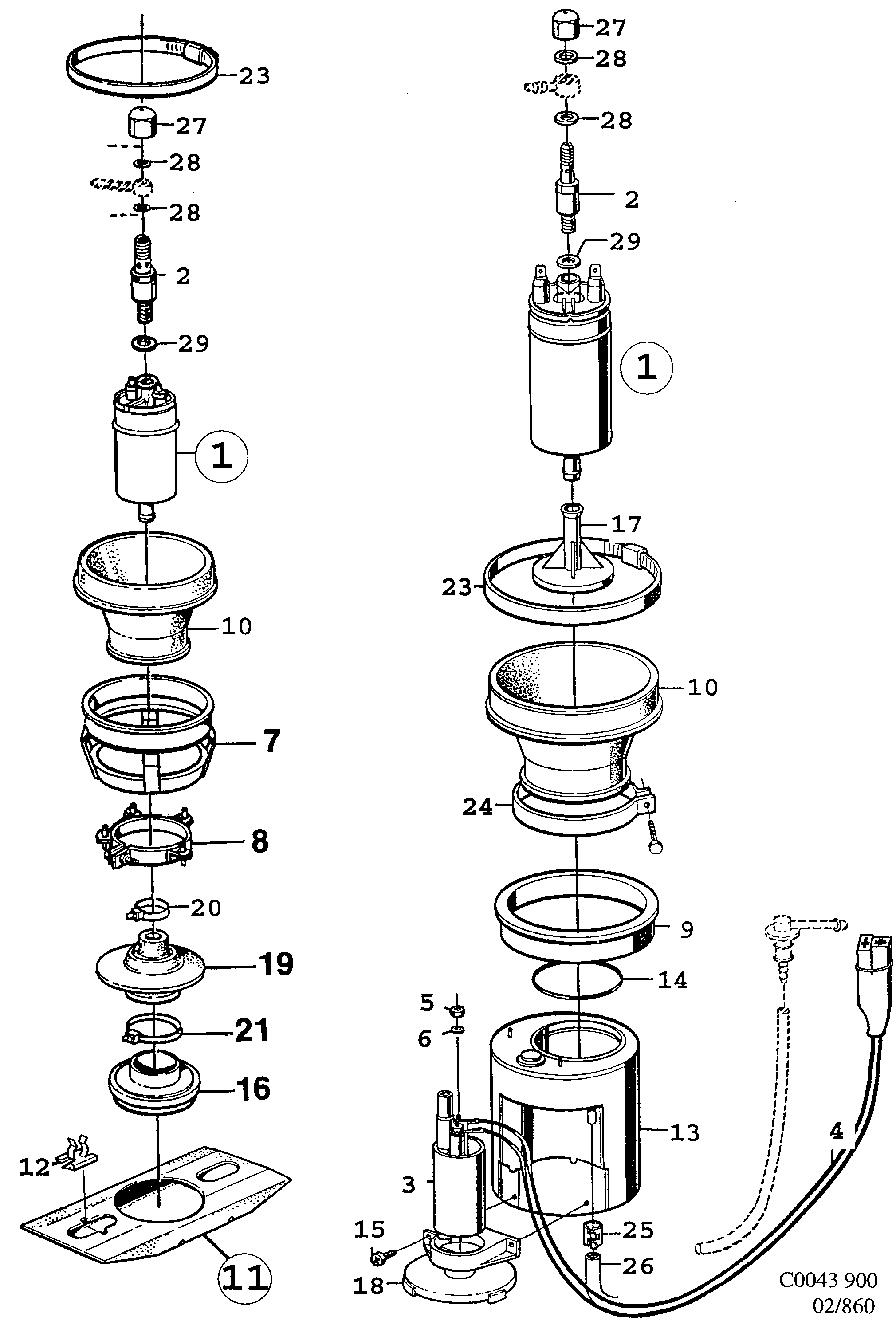

860: Engine - Fuel system - Fuel pump
(1990 - 1993) | For 900 (1993)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 36 923 Fuel pump 03 | 1 | |
| 2 | 93 37 510 Valve 03 | 1 | |
| 3 | 75 26 163 Fuel pump 03 • With catalytic converter. | 1 | |
| 4 | 93 63 540 Cable harness 03 | 1 | |
| 5 | 79 73 993 Nut 03 | 2 | |
| 6 | 79 10 516 Washer 03 | 2 | |
| 7 | 93 48 103 Pump bracket 03 | 1 | |
| 8 | 93 48 087 Clamp 03 | 1 | |
| 9 | 93 49 614 Support ring 03 | 1 | |
| 10 | 93 19 971 Seal 03 | 1 | |
| 11 | 93 62 153 Reservoir 03 | 1 | |
| 12 | 93 24 211 Clip 03 | 1 | |
| 13 | 75 13 666 Reservoir 03 | 1 | |
| 14 | 93 49 655 O-ring 03 | 1 | |
| 15 | 79 73 613 Screw 03 | 2 | |
| 16 | 83 31 159 Suction filter 03 | 1 | |
| 17 | 93 65 958 Strainer 03 | 1 | |
| 18 | 93 86 491 Strainer 03 | 1 | |
| 19 | 93 19 955 Bellows 03 | 1 | |
| 20 | 79 71 864 Tensioning band 03 | 1 | |
| 21 | 83 74 357 11 900 513 Tensioning band 03 | 1 | |
| 23 | 93 31 554 Hose clamp 03 | 1 | |
| 24 | 93 22 660 Clamp 03 | 1 | |
| 25 | 79 77 879 Hose clamp 03 | 1 | |
| 26 | 89 75 484 Return pipe 03 | 1 | |
| 27 | 93 61 668 Cap nut 03 | 1 | |
| 28 | 89 81 979 44 43 883 Seal 03 | 2 | |
| 29 | 93 37 528 Washer 03 | 1 |
