Question 1

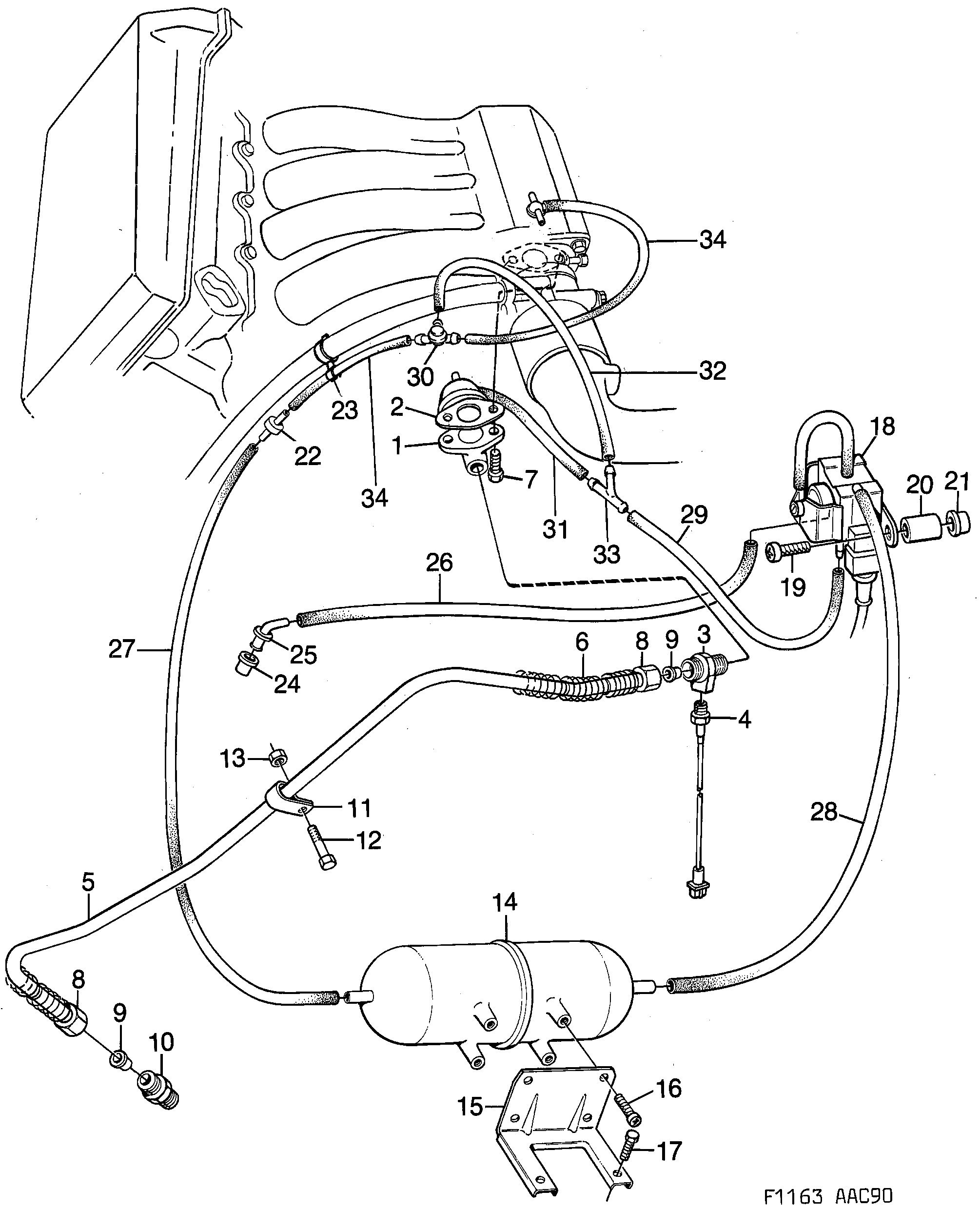

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1994?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1994. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	87 88 721 Valve	Valve		1
2	75 07 973 Gasket	Gasket		1
3	91 19 728 Nipple	Nipple		1
4	91 19 512 Sensor	Sensor		1
5	75 20 133 EGR-pipe	EGR-pipe		1
6	75 08 385 Protection	Protection		2
8	81 45 559 Nut	Nut		2
9	81 32 235 Ferrule	Ferrule		2
10	81 31 989 Nipple	Nipple		1
11	75 15 836 Clamp	Clamp		1
13	81 51 227 Nut	Nut		1
14	40 15 996 Vacuum tank	Vacuum tank		1
15	40 16 069 Bracket	Bracket		1
16	79 73 613 Screw	Screw		4
17	79 69 223 Screw	Screw		2
18	91 19 504 Timing valve	Timing valve		1
19	40 19 493 Screw	Screw		2
20	40 16 051 Spacer tube	Spacer tube		2
21	79 73 456 Expanding nut	Expanding nut		2
22	40 23 297 12 793 343 Non-return valve	Non-return valve		1
23	73 98 233 Clamp	Clamp		1
24	40 16 002 Bushing	Bushing		1
25	40 16 036 Nipple	Nipple		1
26	91 36 243 Vacuum hose L=500 MM \| Sold...	Vacuum hose	L=500 MM \| Sold...	1
27	91 36 243 Vacuum hose L=290 MM \| Sold...	Vacuum hose	L=290 MM \| Sold...	1
28	91 36 243 Vacuum hose L=400 MM \| Sold...	Vacuum hose	L=400 MM \| Sold...	1
29	91 36 243 Vacuum hose L=550 MM \| Sold...	Vacuum hose	L=550 MM \| Sold...	1
30	40 23 701 Delivery valve	Delivery valve		1
31	91 36 243 Vacuum hose L=50 MM \| Sold...	Vacuum hose	L=50 MM \| Sold...	1
32	91 36 243 Vacuum hose L=400 MM \| Sold...	Vacuum hose	L=400 MM \| Sold...	1
33	85 09 002 Tube	Tube		1
34	91 36 243 Vacuum hose L=115 MM \| Sold...	Vacuum hose	L=115 MM \| Sold...	2
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

Pos.	Part No.	Description	Usage	Qty
1	87 88 721 Valve	Valve		1
2	75 07 973 Gasket	Gasket		1
3	91 19 728 Nipple	Nipple		1
4	91 19 512 Sensor	Sensor		1
5	75 20 133 EGR-pipe	EGR-pipe		1
6	75 08 385 Protection	Protection		2
8	81 45 559 Nut	Nut		2
9	81 32 235 Ferrule	Ferrule		2
10	81 31 989 Nipple	Nipple		1
11	75 15 836 Clamp	Clamp		1
13	81 51 227 Nut	Nut		1
14	40 15 996 Vacuum tank	Vacuum tank		1
15	40 16 069 Bracket	Bracket		1
16	79 73 613 Screw	Screw		4
17	79 69 223 Screw	Screw		2
18	91 19 504 Timing valve	Timing valve		1
19	40 19 493 Screw	Screw		2
20	40 16 051 Spacer tube	Spacer tube		2
21	79 73 456 Expanding nut	Expanding nut		2
22	40 23 297 12 793 343 Non-return valve	Non-return valve		1
23	73 98 233 Clamp	Clamp		1
24	40 16 002 Bushing	Bushing		1
25	40 16 036 Nipple	Nipple		1
26	91 36 243 Vacuum hose L=500 MM \| Sold...	Vacuum hose	L=500 MM \| Sold...	1
27	91 36 243 Vacuum hose L=290 MM \| Sold...	Vacuum hose	L=290 MM \| Sold...	1
28	91 36 243 Vacuum hose L=400 MM \| Sold...	Vacuum hose	L=400 MM \| Sold...	1
29	91 36 243 Vacuum hose L=550 MM \| Sold...	Vacuum hose	L=550 MM \| Sold...	1
30	40 23 701 Delivery valve	Delivery valve		1
31	91 36 243 Vacuum hose L=50 MM \| Sold...	Vacuum hose	L=50 MM \| Sold...	1
32	91 36 243 Vacuum hose L=400 MM \| Sold...	Vacuum hose	L=400 MM \| Sold...	1
33	85 09 002 Tube	Tube		1
34	91 36 243 Vacuum hose L=115 MM \| Sold...	Vacuum hose	L=115 MM \| Sold...	2
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

1430: Engine - Intake and exhaust system - EGR system - Electronic
