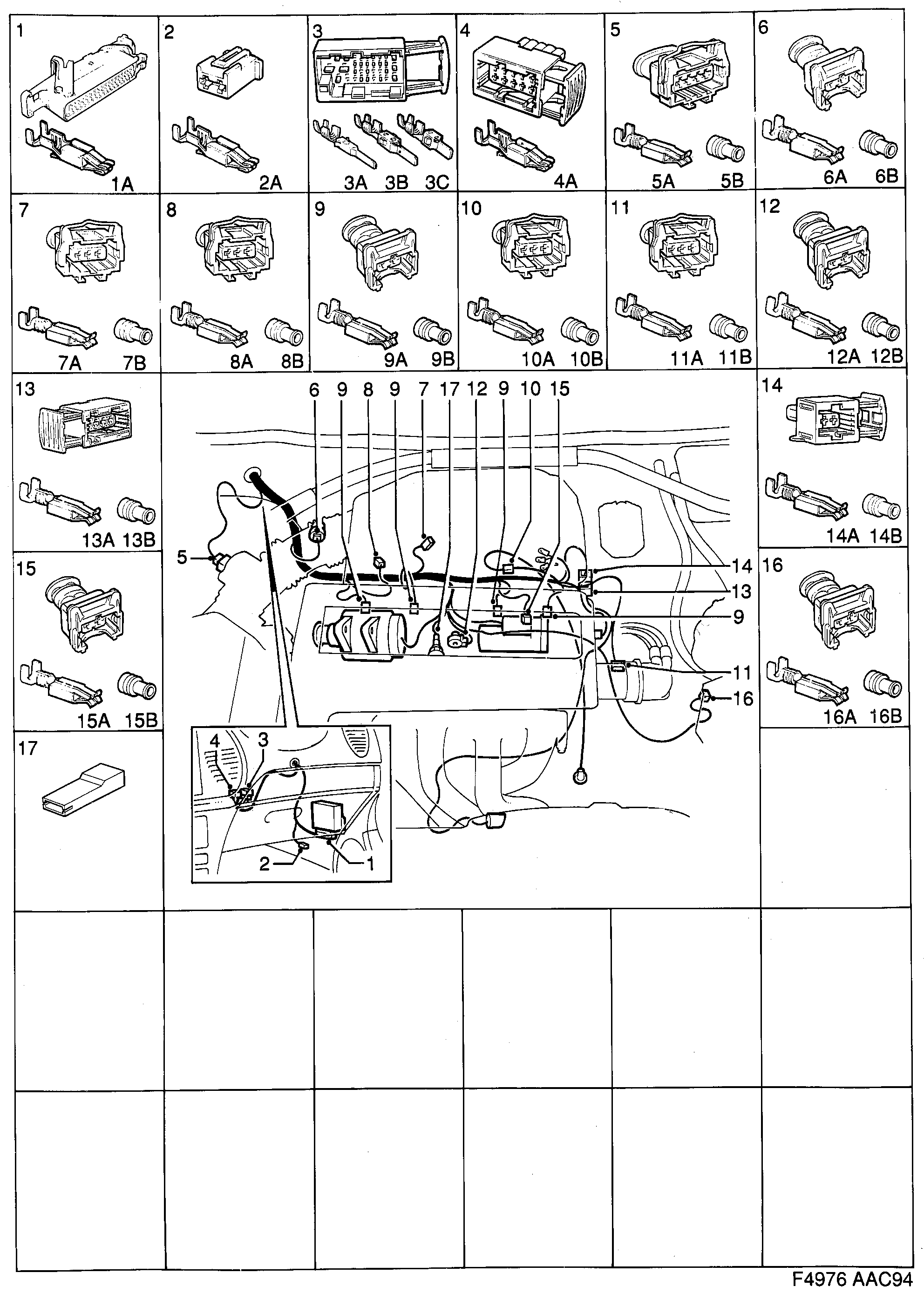

210: Electrical, connector - Contact housing etc - Engine

(1994 | PETROL) | For 900 (1994)

100%

(N°180)

Section 210

(N°240)

Pos.	Part No.	Description	Usage	Qty
1	42 22 311 Connector housing PETROL • 55-pin, female electronic unit...	Connector housing	PETROL 55-pin, female electronic unit...	1
1A	91 20 957 12 789 796 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	44
2	91 23 548 12 790 106 Contact housing PETROL • 2-pin, female connection coding	Contact housing	PETROL 2-pin, female connection coding	1
2A	91 20 957 12 789 796 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
3	41 73 852 12 798 080 Contact housing PETROL • 33-pin, male connection	Contact housing	PETROL 33-pin, male connection	1
3A	41 15 457 12 790 614 Cable terminal PETROL • AREA 0,5-1,0 MM2	Cable terminal	PETROL AREA 0,5-1,0 MM2	16
3B	41 15 077 12 789 934 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	8
3C	41 15 580 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
4	41 14 005 12 788 954 Connector housing PETROL • 10-pin, female connection	Connector housing	PETROL 10-pin, female connection	1
4A	91 20 957 12 789 796 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	1
5	44 32 357 Connector housing PETROL • 4-pin, female mass air...	Connector housing	PETROL 4-pin, female mass air...	1
5A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	4
5B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	4
6	41 78 414 12 790 247 Connector housing PETROL • 2-pin, female EVAP CP...	Connector housing	PETROL 2-pin, female EVAP CP...	1
6A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
6B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
7	44 32 316 12 790 262 Connector housing PETROL • 3-pin, female throttle position...	Connector housing	PETROL 3-pin, female throttle position...	1
7A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
7B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
8	44 32 324 Connector housing PETROL • 3-pin, female idle speed...	Connector housing	PETROL 3-pin, female idle speed...	1
8A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
8B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
9	41 78 414 12 790 247 Connector housing PETROL • 2-pin, female injection valves	Connector housing	PETROL 2-pin, female injection valves	1
9A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
9B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
10	44 32 316 12 790 262 Connector housing PETROL • 3-pin, female crank shaft...	Connector housing	PETROL 3-pin, female crank shaft...	1
10A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
10B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
