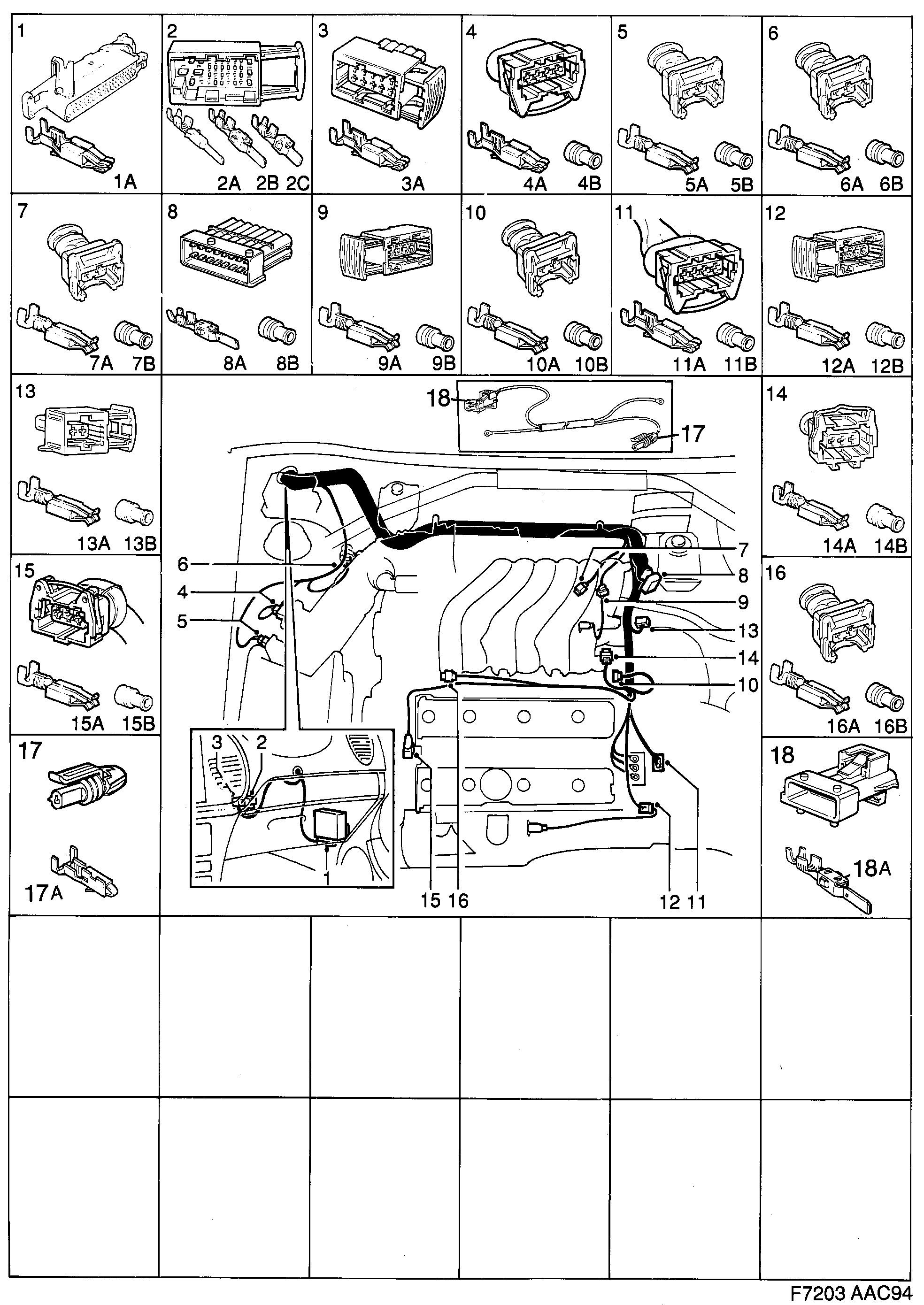

360: Electrical, connector - Contact housing etc - Engine

(1994 | B258I) | For 900 (1994)

100%

(N°330)

Section 360

(N°390)

Pos.	Part No.	Description	Usage	Qty
11	44 32 357 Connector housing B258I • 4-pin, female ignition coil	Connector housing	B258I 4-pin, female ignition coil	1
11A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	4
11B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	4
12	41 13 601 12 788 993 Connector housing B258I • 4-pin, female lambda sond...	Connector housing	B258I 4-pin, female lambda sond...	1
12A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	3
12B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	3
13	41 13 205 12 788 933 Connector housing B258I • 2-pin, female temperature sensor...	Connector housing	B258I 2-pin, female temperature sensor...
13A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
13B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	2
14	44 32 316 12 790 262 Connector housing B258I • 3-pin, female crank shaft...	Connector housing	B258I 3-pin, female crank shaft...	1
14A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	3
14B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	3
15	44 32 316 12 790 262 Connector housing B258I • 3-pin, female sensor camshaft	Connector housing	B258I 3-pin, female sensor camshaft	1
15A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	3
15B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	3
16	41 78 414 12 790 247 Connector housing B258I • 2-pin, female knock sensor...	Connector housing	B258I 2-pin, female knock sensor...	1
16A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
16B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	2
17	42 03 378 Connector housing B258I • 1-pin, female engine oil...	Connector housing	B258I 1-pin, female engine oil...	1
17A	44 18 505 Cable terminal B258I • AREA 0,5-1,0 MM2	Cable terminal	B258I AREA 0,5-1,0 MM2	1
18	41 13 650 12 788 998 Connector housing B258I • 4-pin, male connection	Connector housing	B258I 4-pin, male connection	1
18A	41 15 192 12 789 934 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	3
