Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1995?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1995. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	42 39 042 Front heated oxygen sensor 1994-1995 • 41 • Front.	Front heated oxygen sensor	1994-1995 41 Front.	2
1	42 39 596 Front heated oxygen sensor 41 • Front. Lead resistant	Front heated oxygen sensor	41 Front. Lead resistant	2
2	42 29 944 Connector holder 41	Connector holder	41	2
3	40 87 185 Hexagon screw 41	Hexagon screw	41	2
4	79 71 880 11 900 513 Tensioning band 41	Tensioning band	41	2
	46 60 197 Rear heated oxygen sensor 41	Rear heated oxygen sensor	41	1
	49 02 235 Conversion kit 41 • Not as separate spare...	Conversion kit	41 Not as separate spare...	1

Pos.	Part No.	Description	Usage	Qty
1	42 39 042 Front heated oxygen sensor 1994-1995 • 41 • Front.	Front heated oxygen sensor	1994-1995 41 Front.	2
1	42 39 596 Front heated oxygen sensor 41 • Front. Lead resistant	Front heated oxygen sensor	41 Front. Lead resistant	2
2	42 29 944 Connector holder 41	Connector holder	41	2
3	40 87 185 Hexagon screw 41	Hexagon screw	41	2
4	79 71 880 11 900 513 Tensioning band 41	Tensioning band	41	2
	46 60 197 Rear heated oxygen sensor 41	Rear heated oxygen sensor	41	1
	49 02 235 Conversion kit 41 • Not as separate spare...	Conversion kit	41 Not as separate spare...	1

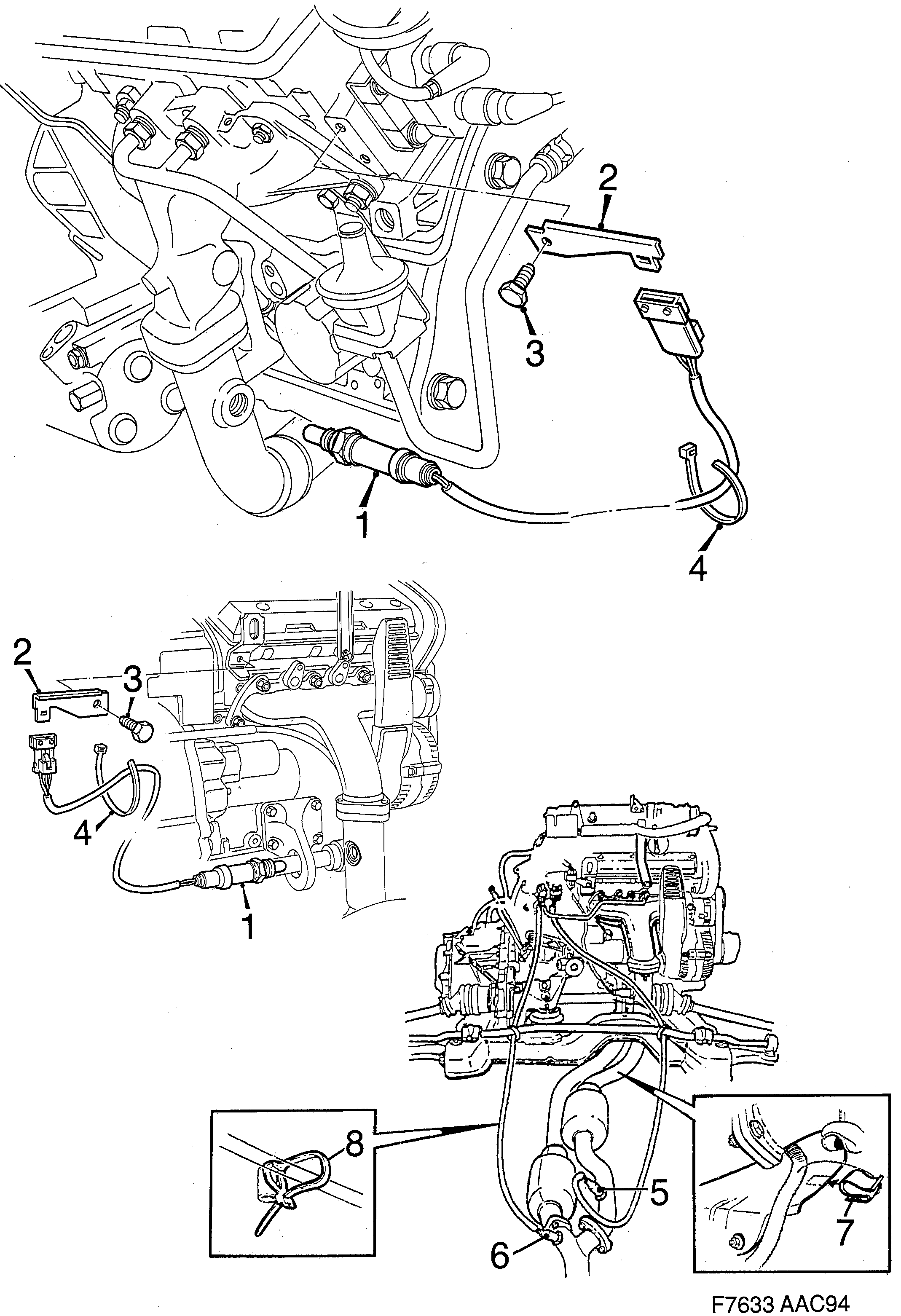

1470: Engine - Intake and exhaust system - Oxygen sensor
