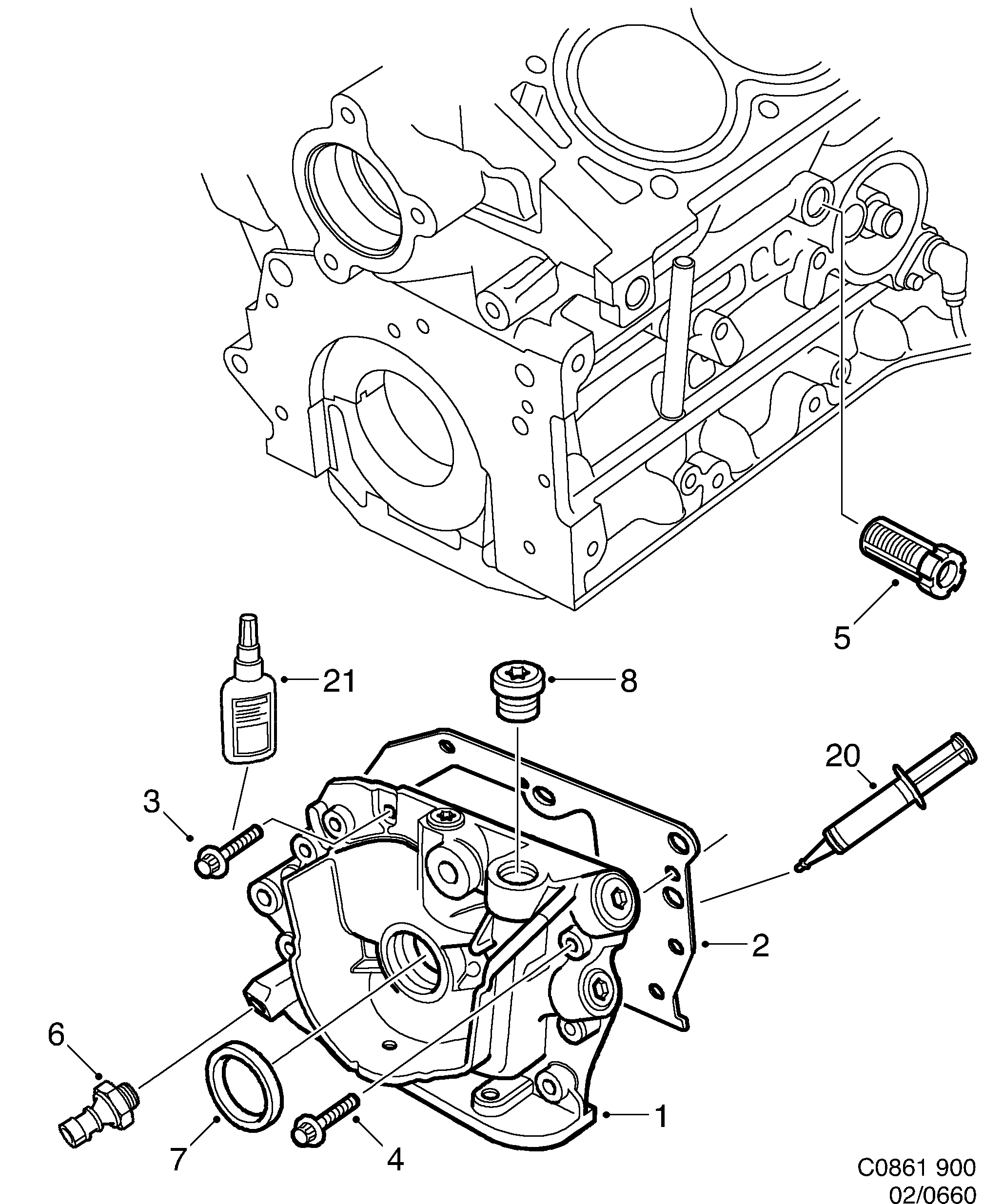

660: Engine - Lubricating system - Oil pump
(1994 - 1997 | 6-CYL) | For 900 (1995)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 02 241 90 571 901 Oil pump 1994-1996 • 41 | 1 | |
| 2 | 45 02 258 90 572 461 Gasket 1994-1996 • 41 | 1 | |
| 3 | 45 02 274 11 093 872 Screw 1994-1996 • 41 | 1 | |
| 4 | 45 00 732 11 093 782 Screw 41 | 5 | |
| 5 | 45 00 419 90 136 113 By-pass valve 41 | 1 | |
| 6 | 45 04 585 Engine oil pressure sensor 1994-1995 • 41 | 1 | |
| 7 | 90 322 669 Seal 41 • (46 22 296) | 1 | |
| 8 | 45 02 290 55 350 692 Screw plug 41 | 1 | |
| 20 | 90 297 970 Flange sealant 41 • 50 ML | X | |
| 21 | 74 96 268 Nut lock 41 • 50 ML | normal... | X |
