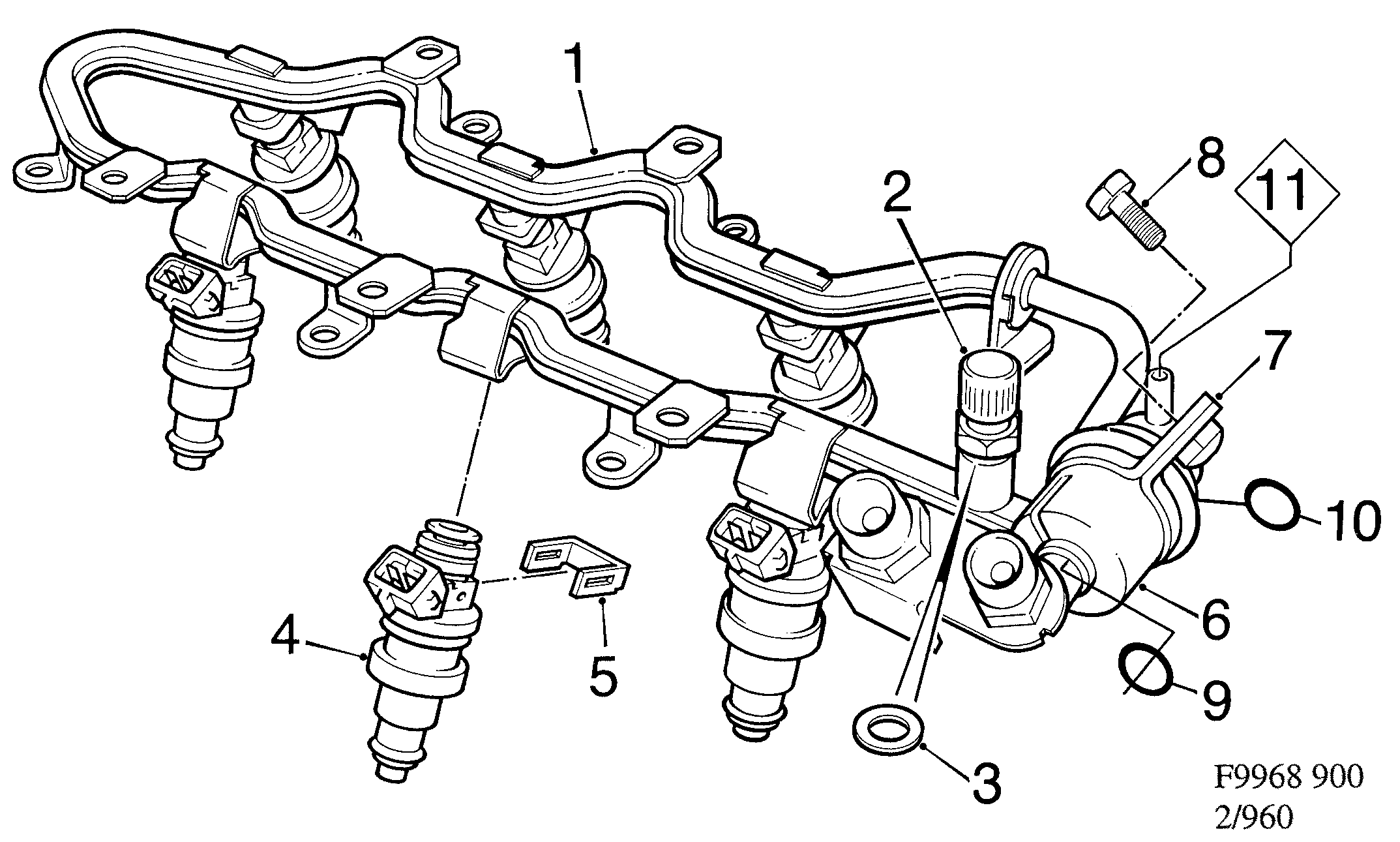

960: Engine - Fuel system - Fuel rail
(1994 - 1997 | 6-CYL) | For 900 (1995)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 03 728 90 412 460 Fuel rail 41 | 1 | |
| 2 | 45 03 744 Valve 41 | 1 | |
| 3 | 45 03 751 Washer 41 | 1 | |
| 4 | 45 03 777 59 59 622 Injector 1994-1995 • 41 • Also available as exchange... | 6 | |
| 5 | 45 03 785 Spring clamp 41 | 6 | |
| 6 | 45 03 793 91 18 850 Fuel pressure regulator 1994-1995 • 41 | 1 | |
| 7 | 45 03 819 95 42 424 Clamp 41 | 1 | |
| 8 | 45 03 835 Screw 41 | 1 | |
| 9 | 90 511 961 O-ring 1995-1997 • 41 | 1 | |
| 10 | 90 511 960 Washer 1995-1997 • 41 • (47 70 434) | 1 | |
| 11 | Throttle bodyIntake and exhaust system 41 |
