Question 1

Where to find the exploded diagram for Wiring and fuses on my Saab 900 1995?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Wiring and fuses on Saab 900 1995. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Wiring and fuses?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Wiring and fuses?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Wiring and fuses, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Wiring and fuses suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	45 81 120 Cable harness -1995	Cable harness	-1995	1
1	45 81 112 Cable harness -1995 • With intake air heat...	Cable harness	-1995 With intake air heat...	1
1	45 85 576 Cable harness 1995- • I	Cable harness	1995- I	1
1	45 85 568 Cable harness 1995- • TURBO	Cable harness	1995- TURBO	1
1	45 85 584 Cable harness 1995-	Cable harness	1995-	1
2	46 74 248 Cable harness 1995- • Without rear window wiper....	Cable harness	1995- Without rear window wiper....	1
2	46 74 222 Cable harness 1995- • With rear window wiper....	Cable harness	1995- With rear window wiper....	1
3	47 37 417 Cable harness 1995- • cooling fan	Cable harness	1995- cooling fan	1
4	46 63 480 Cable harness LH,ABS	Cable harness	LH,ABS	1
5	46 63 498 Cable harness RH,ABS	Cable harness	RH,ABS	1
6	47 39 702 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
7	47 39 710 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
8	47 39 678 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
9	47 39 694 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
10	47 39 686 Cable harness Also applies to modified...	Cable harness	Also applies to modified...

Pos.	Part No.	Description	Usage	Qty
1	45 81 120 Cable harness -1995	Cable harness	-1995	1
1	45 81 112 Cable harness -1995 • With intake air heat...	Cable harness	-1995 With intake air heat...	1
1	45 85 576 Cable harness 1995- • I	Cable harness	1995- I	1
1	45 85 568 Cable harness 1995- • TURBO	Cable harness	1995- TURBO	1
1	45 85 584 Cable harness 1995-	Cable harness	1995-	1
2	46 74 248 Cable harness 1995- • Without rear window wiper....	Cable harness	1995- Without rear window wiper....	1
2	46 74 222 Cable harness 1995- • With rear window wiper....	Cable harness	1995- With rear window wiper....	1
3	47 37 417 Cable harness 1995- • cooling fan	Cable harness	1995- cooling fan	1
4	46 63 480 Cable harness LH,ABS	Cable harness	LH,ABS	1
5	46 63 498 Cable harness RH,ABS	Cable harness	RH,ABS	1
6	47 39 702 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
7	47 39 710 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
8	47 39 678 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
9	47 39 694 Cable harness Also applies to modified...	Cable harness	Also applies to modified...	1
10	47 39 686 Cable harness Also applies to modified...	Cable harness	Also applies to modified...

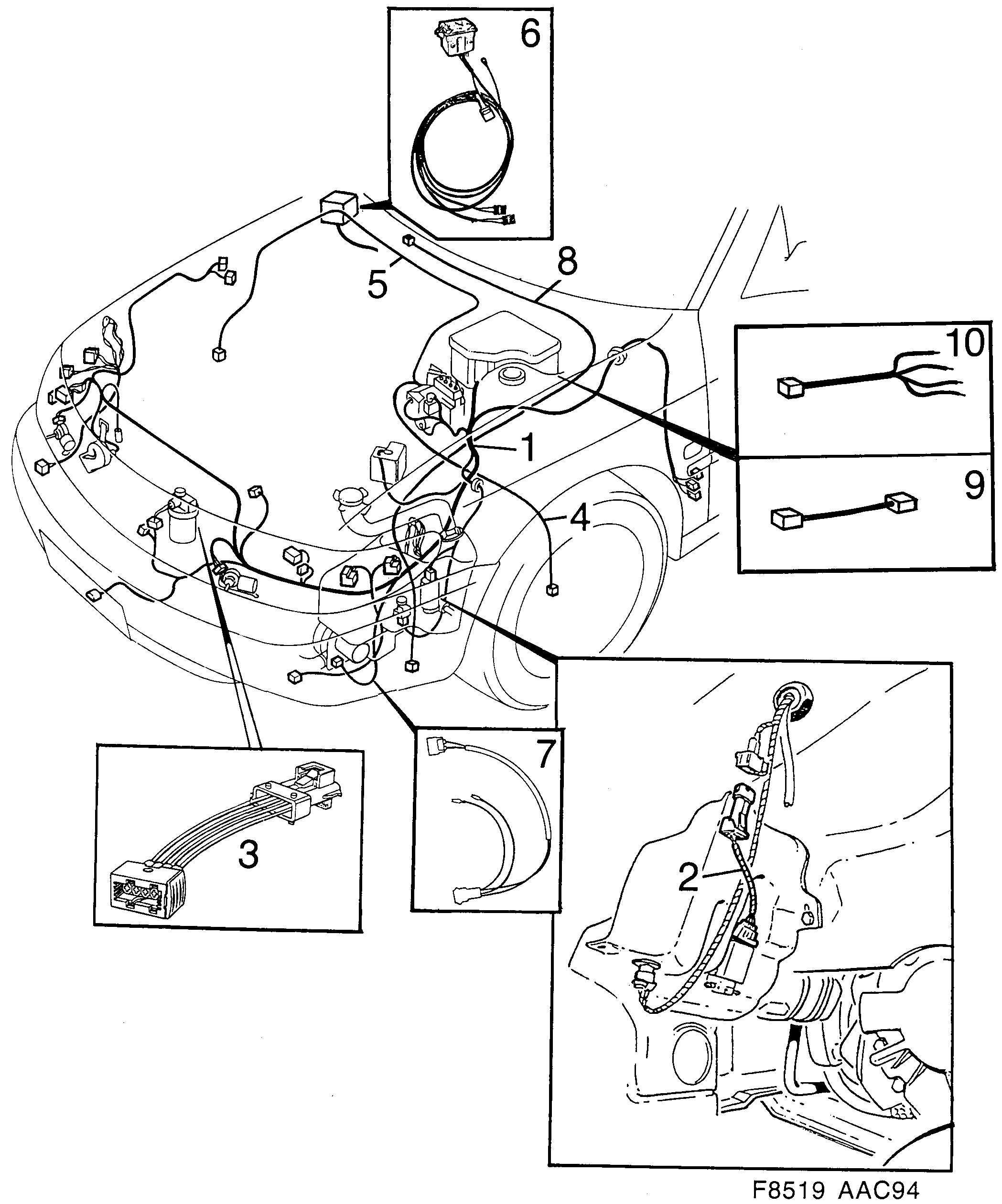

1290: Electrical, general - Wiring and fuses - Front
