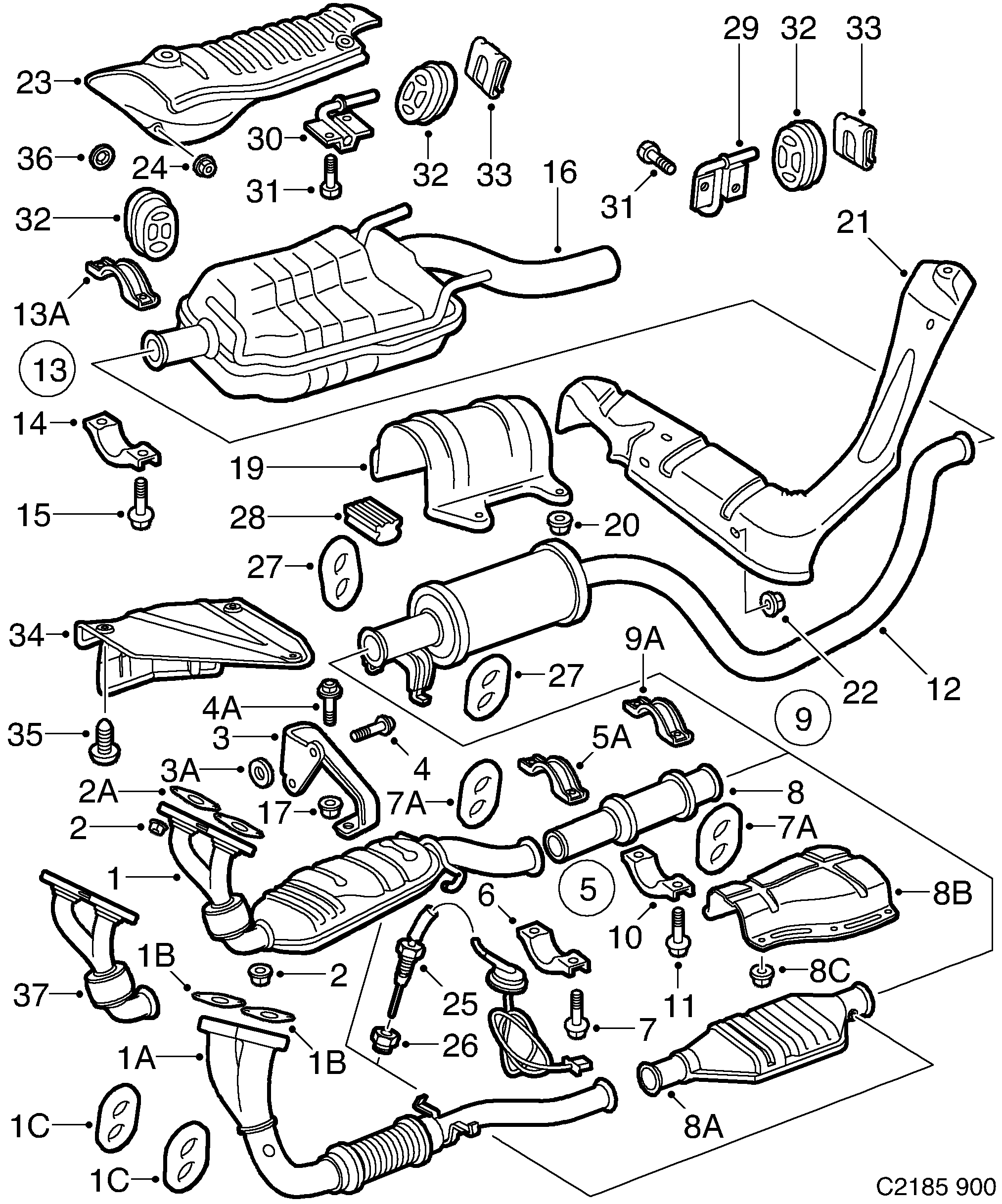

1500: Engine - Intake and exhaust system - Exhaust system

(1994 - 1996 | PETROL) | For 900 (1996)

100%

(N°1470)

Section 1500

(N°1560)

Pos.	Part No.	Description	Usage	Qty
1	45 26 844 Three way catalytic converter 1996-1996, LHD • B234I	Three way catalytic converter	1996-1996, LHD B234I	1
1	44 45 441 93 167 223 Three way catalytic converter 1995- • B234I, B204I, B206I • With heat shield mounted...	Three way catalytic converter	1995- B234I, B204I, B206I With heat shield mounted...	1
1A	44 44 527 Exhaust pipe B204I, B206I	Exhaust pipe	B204I, B206I	1
1B	46 24 383 Gasket 1995-1996 • B204I, B206I	Gasket	1995-1996 B204I, B206I	2
1C	93 65 404 Rubber mounting B204I, B206I	Rubber mounting	B204I, B206I	2
2	79 79 503 Nut PETROL	Nut	PETROL	4
2A	46 24 383 Gasket 1995-1996 • B234I	Gasket	1995-1996 B234I	2
3A	79 82 317 Washer PETROL	Washer	PETROL	2
5	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
5A	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
6	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
7	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
7A	93 65 404 Rubber mounting 1995- • PETROL	Rubber mounting	1995- PETROL	2
8	44 45 516 47 50 741 Intermediate pipe PETROL • (4229456)	Intermediate pipe	PETROL (4229456)	1
8A	45 26 968 Three way catalytic converter 1995-1996 • B204I	Three way catalytic converter	1995-1996 B204I	1
8A	46 23 054 Three way catalytic converter 1996- • B204I	Three way catalytic converter	1996- B204I	1
8A	45 26 976 Three way catalytic converter 1995-1996 • B204I • With heat shield mounted...	Three way catalytic converter	1995-1996 B204I With heat shield mounted...	1
8A	46 23 062 Three way catalytic converter 1996- • B204I • With heat shield mounted...	Three way catalytic converter	1996- B204I With heat shield mounted...	1
8B	42 35 347 Heat shield B204I, B206I	Heat shield	B204I, B206I	1
8C	43 45 138 11 089 471 Hexagon nut B204I, B206I	Hexagon nut	B204I, B206I	4
9	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
9A	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
10	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
11	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
12	42 26 320 49 66 859 Silencer PETROL	Silencer	PETROL	1
13	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
13A	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
14	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
15	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
16	42 25 751 51 74 990 Silencer PETROL • Without tail pipe sleeve	Silencer	PETROL Without tail pipe sleeve	1
19	43 94 235 Heat shield PETROL	Heat shield	PETROL	1
20	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	4
21	42 35 362 Heat shield PETROL	Heat shield	PETROL	1
22	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	3
23	43 94 128 Heat shield PETROL	Heat shield	PETROL	1
24	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	4
25	44 33 488 Sensor B204I, B206I	Sensor	B204I, B206I	1
25	45 87 515 Sensor 1995-1996 • B204I, B234I	Sensor	1995-1996 B204I, B234I	1
26	42 26 395 Reduction nipple PETROL	Reduction nipple	PETROL	1
27	42 35 396 Rubber mounting PETROL	Rubber mounting	PETROL	2
28	42 35 412 Rubber damper PETROL	Rubber damper	PETROL	1
29	42 29 225 Bracket PETROL	Bracket	PETROL	1
30	42 29 209 Bracket PETROL	Bracket	PETROL	1
31	79 72 623 92 153 212 Screw PETROL	Screw	PETROL	4
32	42 35 404 Rubber mounting PETROL	Rubber mounting	PETROL	3
33	42 29 910 92 152 112 Clip PETROL	Clip	PETROL	2
34	91 44 676 Heat shield PETROL	Heat shield	PETROL	1
	oil sump PETROL	oil sump	PETROL
35	79 71 294 Screw PETROL	Screw	PETROL	3
36	40 87 722 Lock washer PETROL	Lock washer	PETROL	1
37	51 71 798 Exhaust pipe B204I, B206I, B234I	Exhaust pipe	B204I, B206I, B234I	1
