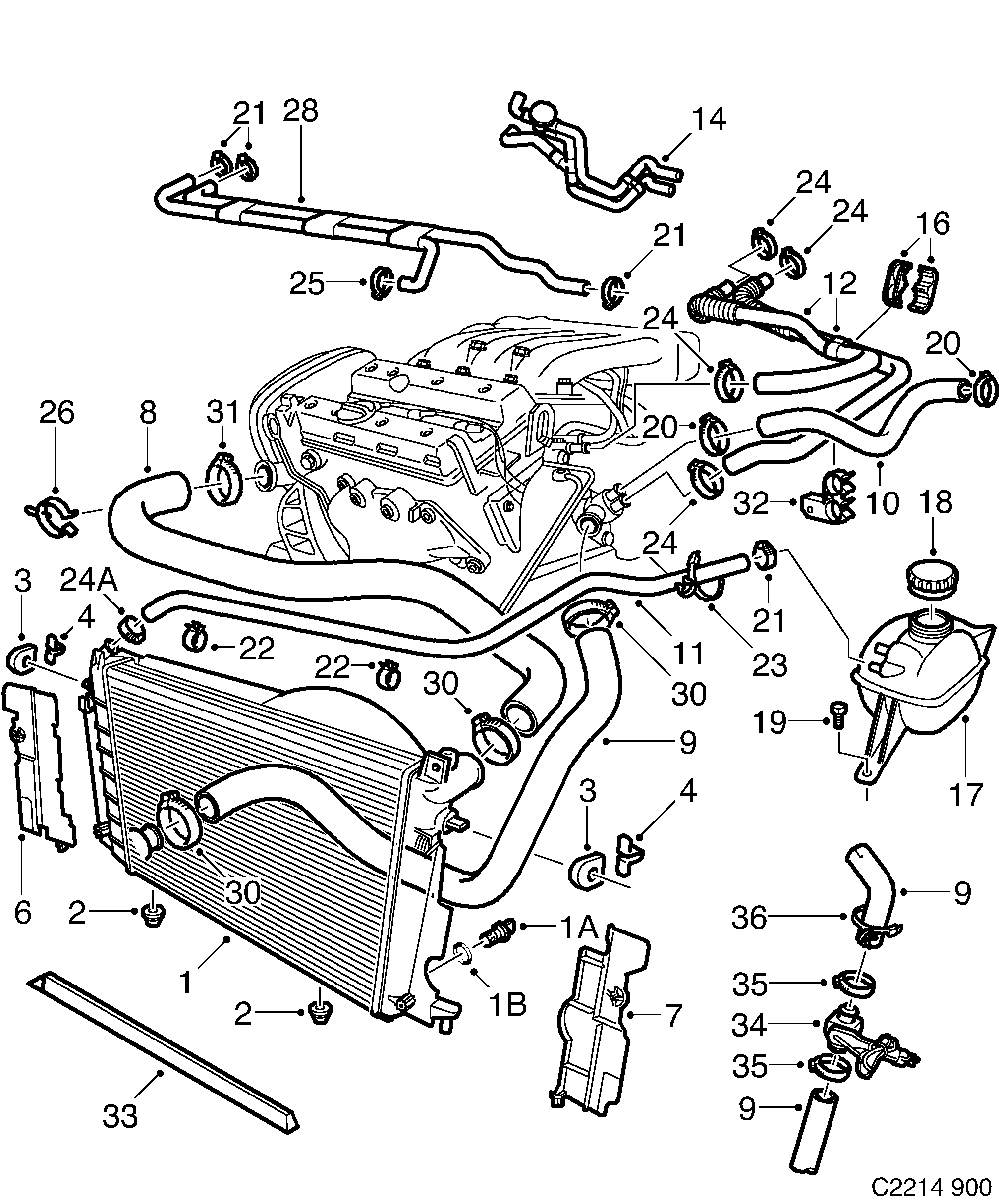

1710: Engine - Cooling system

(1994 - 1997 | 6-CYL) | For 900 (1996)

100%

(N°1680)

Section 1710

(N°1740)

Pos.	Part No.	Description	Usage	Qty
1	42 83 438 47 29 562 Radiator 1994-1997 • 41	Radiator	1994-1997 41	1
1	43 57 927 47 29 588 Radiator 1994-1997 • 41 • AC,ACC	Radiator	1994-1997 41 AC,ACC	1
1	43 57 794 47 29 596 Radiator 1994-1997 • 41	Radiator	1994-1997 41	1
1A	43 56 408 Draining plug 41	Draining plug	41	1
1B	43 56 416 O-ring 41	O-ring	41	1
2	47 27 871 Rubber bushing 1996-1997 • 41	Rubber bushing	1996-1997 41	2
3	47 27 863 Rubber bushing 1996-1997 • 41	Rubber bushing	1996-1997 41	2
4	42 83 586 Clip 41	Clip	41	2
6	42 83 347 Air shield 41	Air shield	41	1
7	42 83 453 Air shield 41	Air shield	41	1
10	43 56 838 Radiator hose 41	Radiator hose	41	1
11	43 57 968 48 76 603 Radiator hose 1994-1996 • 41	Radiator hose	1994-1996 41	1
12	48 76 306 Radiator hose LHD • 41 • ALT. SEE POS 14	Radiator hose	LHD 41 ALT. SEE POS 14	1
12	48 76 330 Radiator hose RHD • 41 • ALT. SEE POS 14	Radiator hose	RHD 41 ALT. SEE POS 14	1
14	43 95 695 48 76 504 Radiator hose kit 1995-1996, LHD • 41 • For tropical market; ME,...	Radiator hose kit	1995-1996, LHD 41 For tropical market; ME,...	1
14	43 95 703 Radiator hose kit 1995-1996, RHD • 41 • For tropical market; ME,...	Radiator hose kit	1995-1996, RHD 41 For tropical market; ME,...	1
16	43 58 107 Clamp 1994-1996 • 41	Clamp	1994-1996 41	2
17	42 83 305 Expansion tank 41	Expansion tank	41	1
18	43 95 513 Cover 1995-1997 • 41	Cover	1995-1997 41	1
19	79 78 661 Hexagon screw 41	Hexagon screw	41	1
20	79 70 072 Hose clamp 41	Hose clamp	41	1
21	79 70 049 Hose clamp 41	Hose clamp	41	2
22	85 36 419 11 900 515 Clip 41	Clip	41	2
23	75 39 984 Clamp 41	Clamp	41	2
24	79 70 064 Hose clamp 41	Hose clamp	41	5
24A	79 70 056 90 572 589 Hose clamp 41	Hose clamp	41	1
25	79 70 114 Hose clamp 41	Hose clamp	41	4
26	43 58 701 Clamp 41	Clamp	41	2
28	90 469 794 Hose 41 • (45 03 348)	Hose	41 (45 03 348)	1
30	79 70 106 Hose clamp 41	Hose clamp	41	3
31	79 70 122 Hose clamp 41	Hose clamp	41	1
32	73 98 530 Clamp 41 • AC,ACC	Clamp	41 AC,ACC	1
33	43 60 012 Air shield 41 • For tropical market; ME,...	Air shield	41 For tropical market; ME,...	1
34	43 97 295 Engine heater 41	Engine heater	41	1
35	79 70 106 Hose clamp 41	Hose clamp	41	2
36	40 87 086 Holder 41	Holder	41	1
