Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	91 65 952 Intake manifold I	Intake manifold	I	1
2	91 65 945 30 551 958 Intake manifold TURBO	Intake manifold	TURBO	1
3	91 38 884 Gasket -1997 • PETROL	Gasket	-1997 PETROL	1
4	40 87 805 11 900 368 Screw 1995-1998 • PETROL	Screw	1995-1998 PETROL	8
4	79 78 224 11 900 368 Screw 1997- • PETROL	Screw	1997- PETROL	8
5	91 48 768 Brace I	Brace	I	1
6	91 48 776 Brace TURBO	Brace	TURBO	1
6	91 66 711 Brace -1997 • PETROL • For cars with intake...	Brace	-1997 PETROL For cars with intake...	1
7	79 78 182 92 150 012 Screw 1996-1998 • PETROL	Screw	1996-1998 PETROL	2
8	91 66 000 30 556 715 Intake air heat plate 1995-1998 • PETROL • For cars with intake...	Intake air heat plate	1995-1998 PETROL For cars with intake...	1
9	80 29 985 92 153 033 Washer -1997 • PETROL • For cars with intake...	Washer	-1997 PETROL For cars with intake...	8

Pos.	Part No.	Description	Usage	Qty
1	91 65 952 Intake manifold I	Intake manifold	I	1
2	91 65 945 30 551 958 Intake manifold TURBO	Intake manifold	TURBO	1
3	91 38 884 Gasket -1997 • PETROL	Gasket	-1997 PETROL	1
4	40 87 805 11 900 368 Screw 1995-1998 • PETROL	Screw	1995-1998 PETROL	8
4	79 78 224 11 900 368 Screw 1997- • PETROL	Screw	1997- PETROL	8
5	91 48 768 Brace I	Brace	I	1
6	91 48 776 Brace TURBO	Brace	TURBO	1
6	91 66 711 Brace -1997 • PETROL • For cars with intake...	Brace	-1997 PETROL For cars with intake...	1
7	79 78 182 92 150 012 Screw 1996-1998 • PETROL	Screw	1996-1998 PETROL	2
8	91 66 000 30 556 715 Intake air heat plate 1995-1998 • PETROL • For cars with intake...	Intake air heat plate	1995-1998 PETROL For cars with intake...	1
9	80 29 985 92 153 033 Washer -1997 • PETROL • For cars with intake...	Washer	-1997 PETROL For cars with intake...	8

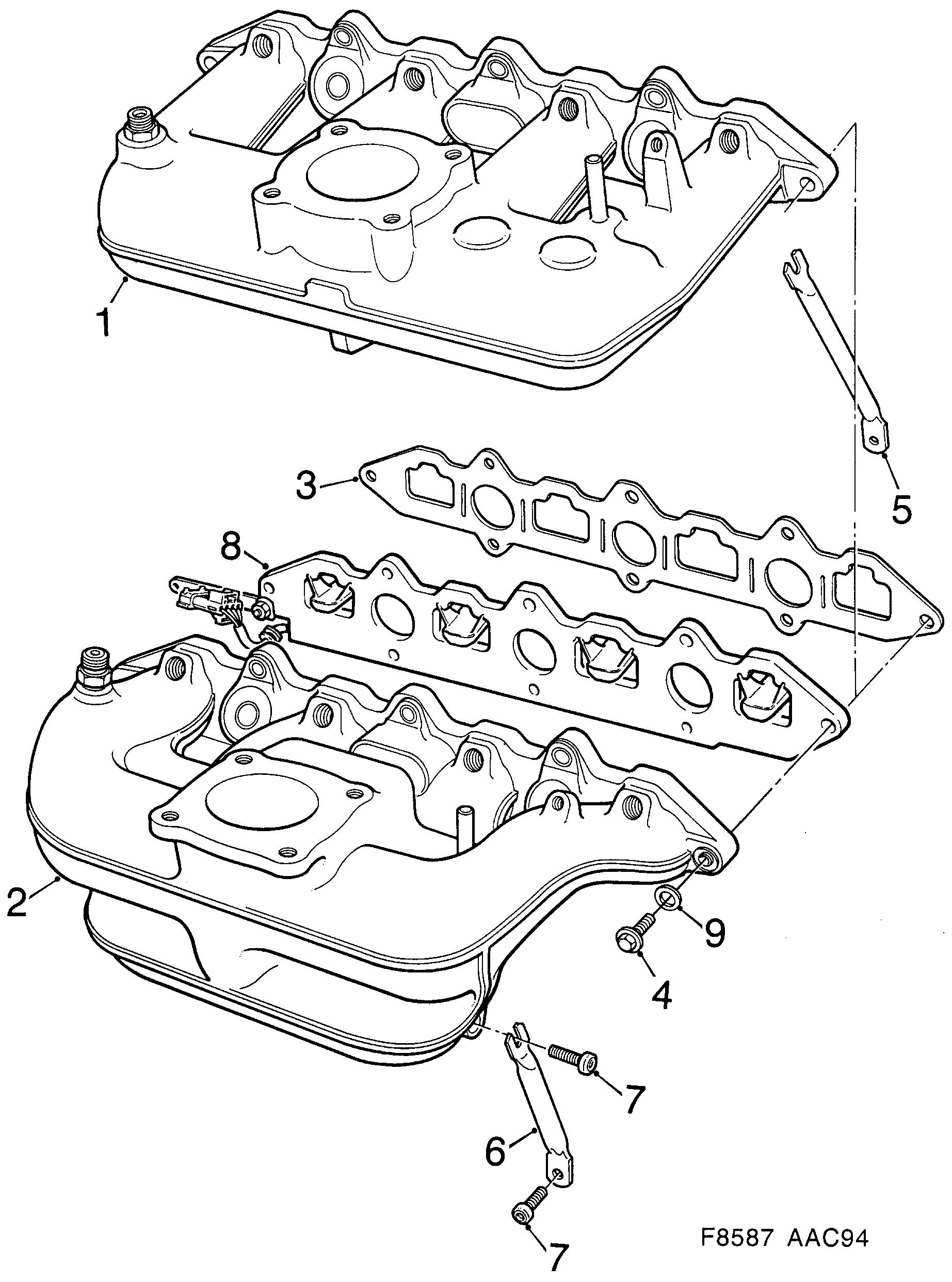

1080: Engine - Intake and exhaust system - Intake manifold - 4-cylinder

Frequently Asked Questions

1080: Engine - Intake and exhaust system - Intake manifold - 4-cylinder
