Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

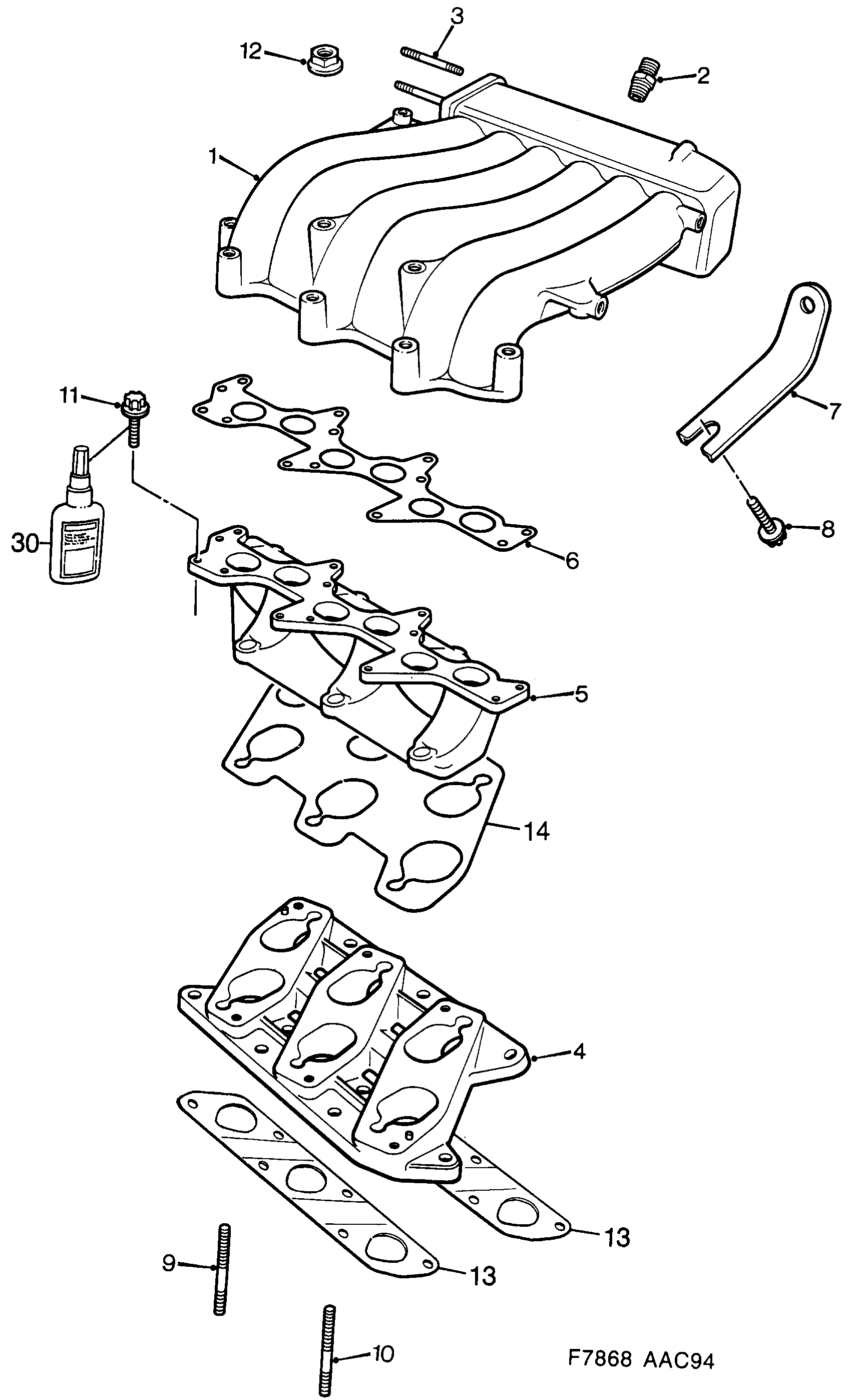

Pos.	Part No.	Description	Usage	Qty
1	45 03 207 Intake manifold 41	Intake manifold	41	1
2	43 46 508 Nipple 41	Nipple	41	1
3	45 03 256 Stud 41	Stud	41	4
4	46 20 118 Flange 41	Flange	41	1
5	45 03 850 Intake manifold 41	Intake manifold	41	1
6	45 03 512 90 412 126 Gasket 41	Gasket	41	1
7	45 03 546 Brace 41	Brace	41	1
8	43 46 854 11 093 601 Screw 41	Screw	41	2
9	45 03 868 90 412 461 Stud 41 • M8X61MM	Stud	41 M8X61MM	5
10	45 03 876 Stud 41 • M8X96MM	Stud	41 M8X96MM	2
11	45 01 110 11 093 611 Screw 41	Screw	41	10
12	45 03 538 11 082 413 Nut 41	Nut	41	7
13	45 04 973 90 412 128 Gasket 41	Gasket	41	2
14	45 04 965 90 412 127 Gasket 41	Gasket	41	1
30	74 96 268 Nut lock 41 • 50 ML \| normal...	Nut lock	41 50 ML \| normal...	X

Pos.	Part No.	Description	Usage	Qty
1	45 03 207 Intake manifold 41	Intake manifold	41	1
2	43 46 508 Nipple 41	Nipple	41	1
3	45 03 256 Stud 41	Stud	41	4
4	46 20 118 Flange 41	Flange	41	1
5	45 03 850 Intake manifold 41	Intake manifold	41	1
6	45 03 512 90 412 126 Gasket 41	Gasket	41	1
7	45 03 546 Brace 41	Brace	41	1
8	43 46 854 11 093 601 Screw 41	Screw	41	2
9	45 03 868 90 412 461 Stud 41 • M8X61MM	Stud	41 M8X61MM	5
10	45 03 876 Stud 41 • M8X96MM	Stud	41 M8X96MM	2
11	45 01 110 11 093 611 Screw 41	Screw	41	10
12	45 03 538 11 082 413 Nut 41	Nut	41	7
13	45 04 973 90 412 128 Gasket 41	Gasket	41	2
14	45 04 965 90 412 127 Gasket 41	Gasket	41	1
30	74 96 268 Nut lock 41 • 50 ML \| normal...	Nut lock	41 50 ML \| normal...	X

1110: Engine - Intake and exhaust system - Intake manifold
