Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	90 490 002 Electronic throttle actuator 41 • (45 03 298)	Electronic throttle actuator	41 (45 03 298)	1
2	49 02 300 Throttle body 1997-1997 • 41	Throttle body	1997-1997 41	1
3	45 03 504 90 409 531 Gasket 41	Gasket	41	2
4	45 03 330 Nut 41	Nut	41	4
5	45 04 908 Vacuum pipe 41	Vacuum pipe	41	1
6	45 03 488 90 572 322 Hose 41	Hose	41	2
7	83 35 614 Plug 41	Plug	41	1
8	Fuel railFuel system 41	Fuel railFuel system 41
9	91 28 090 Screw 41	Screw	41	2

Pos.	Part No.	Description	Usage	Qty
1	90 490 002 Electronic throttle actuator 41 • (45 03 298)	Electronic throttle actuator	41 (45 03 298)	1
2	49 02 300 Throttle body 1997-1997 • 41	Throttle body	1997-1997 41	1
3	45 03 504 90 409 531 Gasket 41	Gasket	41	2
4	45 03 330 Nut 41	Nut	41	4
5	45 04 908 Vacuum pipe 41	Vacuum pipe	41	1
6	45 03 488 90 572 322 Hose 41	Hose	41	2
7	83 35 614 Plug 41	Plug	41	1
8	Fuel railFuel system 41	Fuel railFuel system 41
9	91 28 090 Screw 41	Screw	41	2

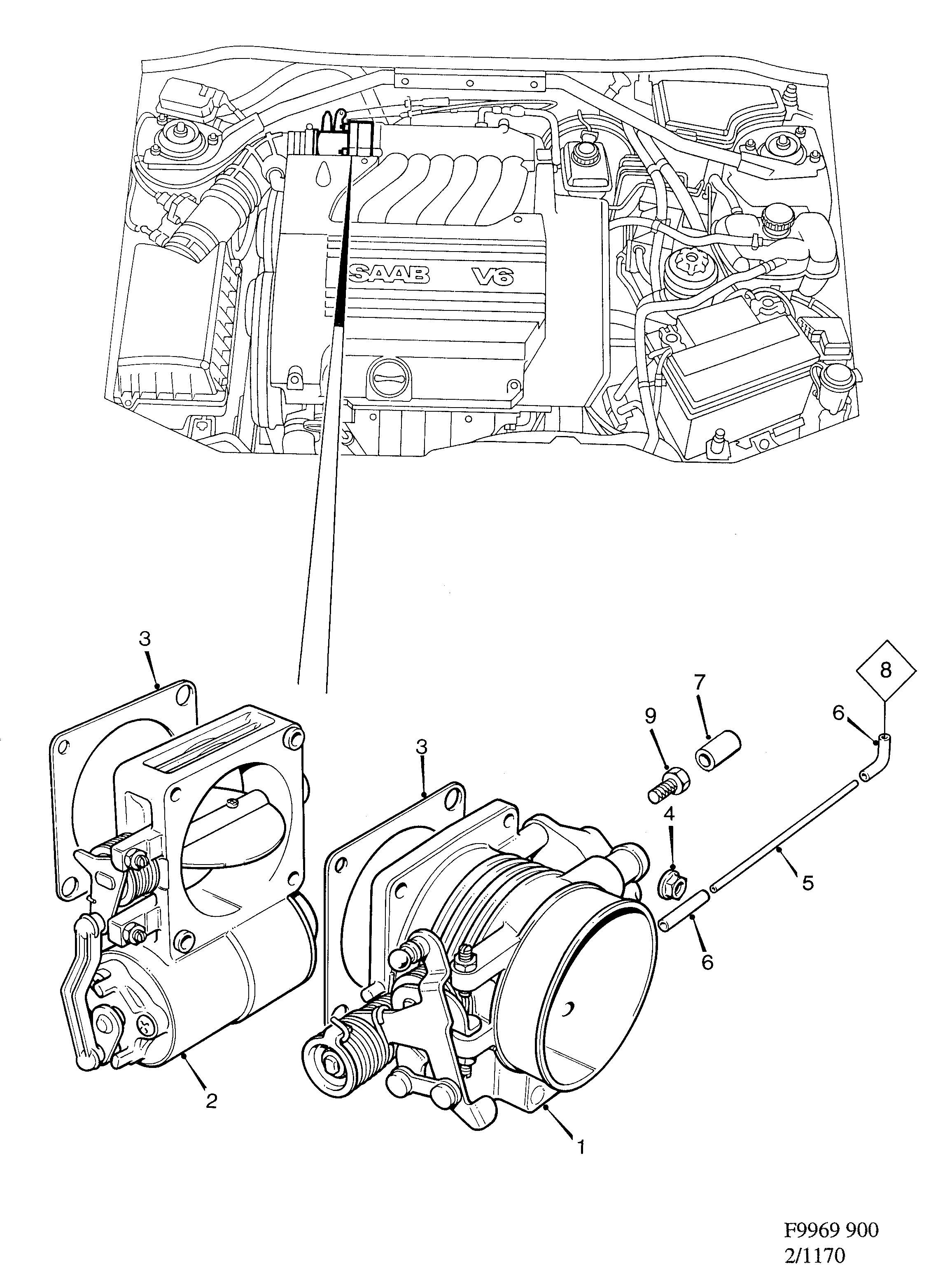

1170: Engine - Intake and exhaust system - Throttle body

Frequently Asked Questions

1170: Engine - Intake and exhaust system - Throttle body
