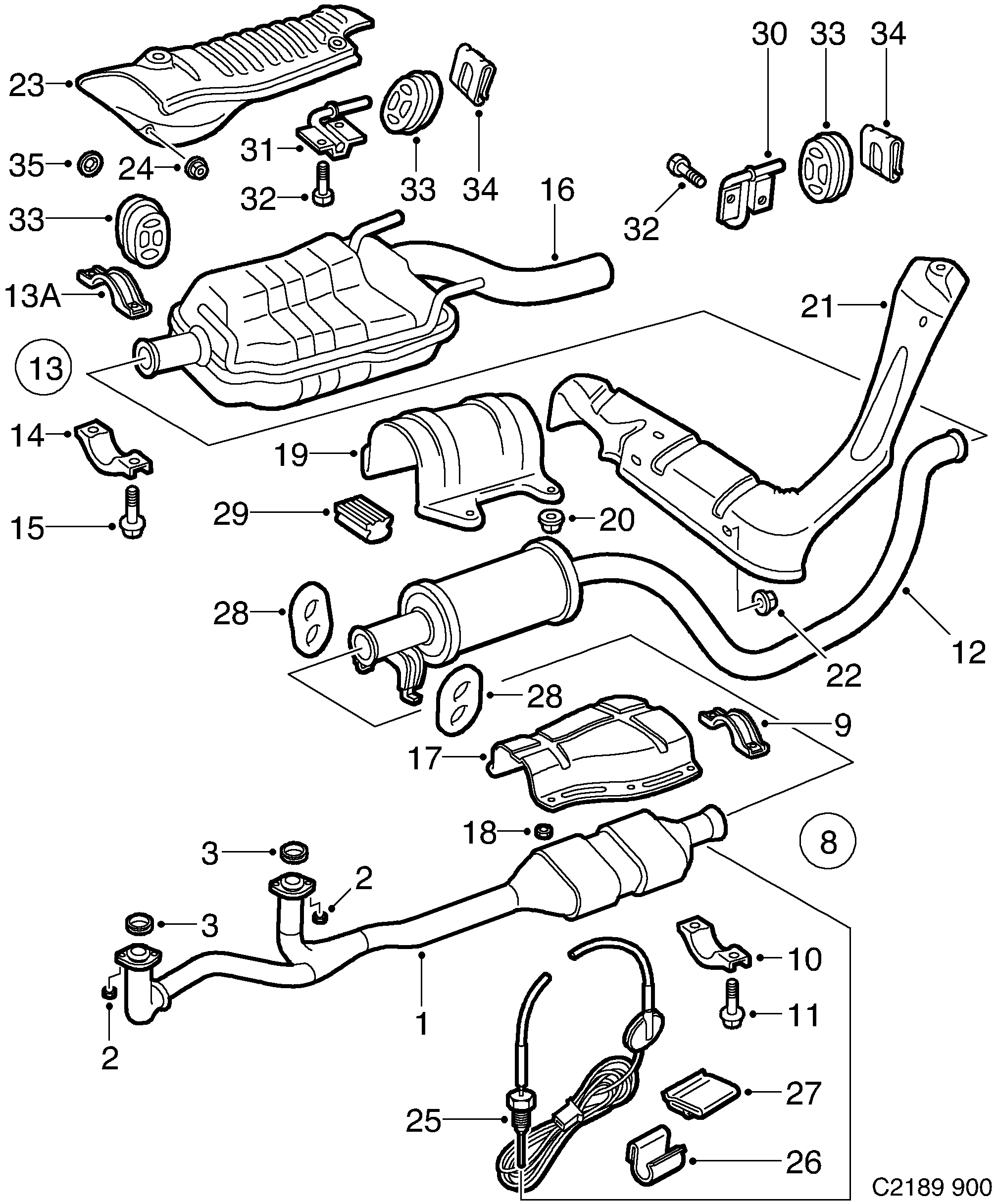

1620: Engine - Intake and exhaust system - Exhaust system

(1996 - 1997 | B258I) | For 900 (1997)

100%

(N°1560)

Section 1620

(N°1650)

Pos.	Part No.	Description	Usage	Qty
1	47 26 634 Three way catalytic converter 1997-1997 • B258I	Three way catalytic converter	1997-1997 B258I	1
1	46 24 110 Three way catalytic converter B258I • With heat shield mounted...	Three way catalytic converter	B258I With heat shield mounted...	1
2	46 85 830 Nut 1996- • B258I	Nut	1996- B258I	4
3	44 43 958 Exhaust gasket B258I	Exhaust gasket	B258I	2
8	54 65 950 Exhaust pipe clamp B258I • Assy	Exhaust pipe clamp	B258I Assy	1
9	42 29 829 Exhaust pipe clamp B258I	Exhaust pipe clamp	B258I	1
10	42 29 811 Exhaust pipe clamp B258I	Exhaust pipe clamp	B258I	1
11	79 78 190 55 566 034 Screw B258I	Screw	B258I	2
12	42 26 320 49 66 859 Silencer -1997 • B258I	Silencer	-1997 B258I	1
12	49 60 936 49 66 859 Silencer 1997- • B258I	Silencer	1997- B258I	1
13	54 65 950 Exhaust pipe clamp B258I • Assy	Exhaust pipe clamp	B258I Assy	1
13A	42 29 829 Exhaust pipe clamp B258I	Exhaust pipe clamp	B258I	1
14	42 29 811 Exhaust pipe clamp B258I	Exhaust pipe clamp	B258I	1
15	79 78 190 55 566 034 Screw B258I	Screw	B258I	2
16	42 35 990 54 67 204 Silencer -1997 • B258I	Silencer	-1997 B258I	1
16	45 28 261 54 67 204 Silencer 1997- • B258I	Silencer	1997- B258I	1
17	47 28 663 53 24 058 Heat shield 1997-1997 • B258I	Heat shield	1997-1997 B258I	1
18	40 87 664 92 151 935 Nut 1997-1997 • B258I	Nut	1997-1997 B258I	8
19	43 94 235 Heat shield -1997 • B258I	Heat shield	-1997 B258I	1
19	47 50 949 Heat shield 1997- • B258I	Heat shield	1997- B258I	1
20	43 45 138 11 089 471 Hexagon nut B258I	Hexagon nut	B258I	4
21	42 35 362 Heat shield B258I	Heat shield	B258I	1
22	43 45 138 11 089 471 Hexagon nut B258I	Hexagon nut	B258I	3
23	43 94 128 Heat shield B258I	Heat shield	B258I	1
24	43 45 138 11 089 471 Hexagon nut B258I	Hexagon nut	B258I	4
25	44 33 488 Sensor B258I	Sensor	B258I	1
26	44 33 561 Clip B258I	Clip	B258I	1
27	44 33 579 Clip B258I	Clip	B258I	2
28	42 35 396 Rubber mounting B258I	Rubber mounting	B258I	2
29	42 35 412 Rubber damper B258I	Rubber damper	B258I	1
30	42 29 225 Bracket B258I	Bracket	B258I	1
31	42 29 209 Bracket B258I	Bracket	B258I	1
32	79 72 623 92 153 212 Screw B258I	Screw	B258I	4
33	42 35 404 Rubber mounting B258I	Rubber mounting	B258I	3
34	42 29 910 92 152 112 Clip -1997 • B258I	Clip	-1997 B258I	2
34	46 85 608 92 152 112 Clip 1997- • B258I	Clip	1997- B258I	2
35	40 87 722 Lock washer B258I	Lock washer	B258I	1
