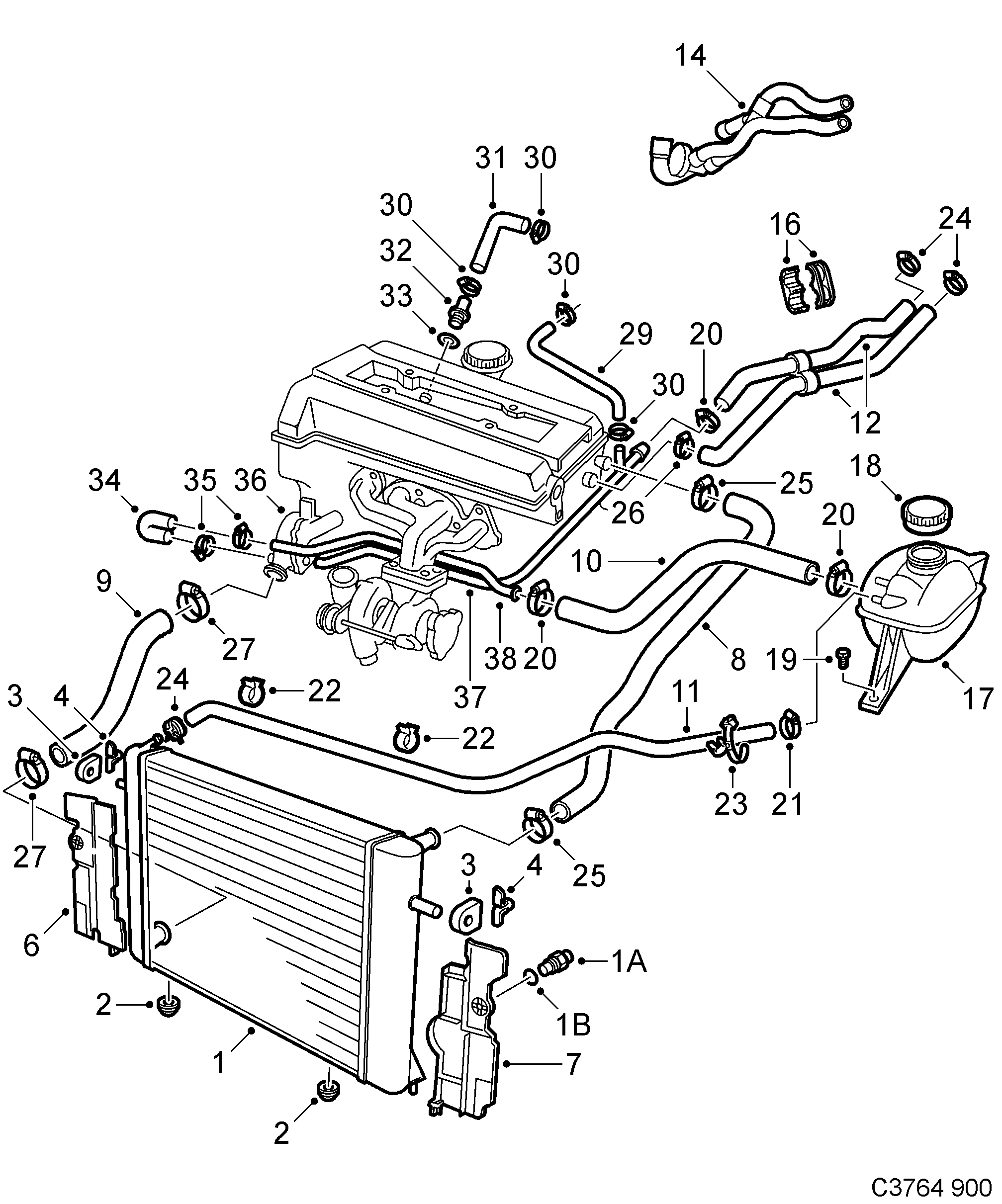

1680: Engine - Cooling system
(1994 - 1998 | PETROL) | For 900 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 42 83 339 47 29 554 Radiator 1994-1997 • PETROL | 1 | |
| 1 | 42 83 438 47 29 562 Radiator 1994-1997 • PETROL • AC,ACC | 1 | |
| 1 | 42 83 495 47 29 570 Radiator 1994-1997 • I | 1 | |
| 1 | 43 57 794 47 29 596 Radiator 1994-1997 • TURBO | 1 | |
| 1A | 43 56 408 Draining plug PETROL | 1 | |
| 1B | 43 56 416 O-ring PETROL | 1 | |
| 2 | 47 27 871 Rubber bushing 1996-1998 • PETROL | 2 | |
| 3 | 47 27 863 Rubber bushing 1996-1998 • PETROL | 2 | |
| 4 | 42 83 586 Clip PETROL | 2 | |
| 6 | 42 83 347 Air shield PETROL • AC,ACC | 1 | |
| 7 | 42 83 453 Air shield I • AC,ACC | 1 | |
| 8 | 48 76 207 49 64 789 Radiator hose 1997- • PETROL | 1 | |
| 9 | 48 76 215 Radiator hose 1997- • PETROL | 1 | |
| 10 | 48 76 595 49 61 363 Radiator hose 1997-1998 • PETROL | 1 | |
| 11 | 48 76 603 Radiator hose 1997-1998 • PETROL | 1 | |
| 12 | 48 76 223 49 61 074 Radiator hose LHD • PETROL • ALT. SEE POS 14 | 1 | |
| 12 | 48 76 256 49 61 090 Radiator hose RHD • PETROL • ALT. SEE POS 14 | 1 | |
| 14 | 48 76 413 49 61 116 Radiator hose kit 1997-1998, LHD • PETROL • For tropical market; ME,... | 1 | |
| 14 | 48 76 470 49 61 132 Radiator hose kit 1997-1998, RHD • PETROL • For tropical market; ME,... | 1 | |
| 17 | 43 56 382 Expansion tank PETROL | 1 | |
| 17 | 43 56 390 Expansion tank PETROL • With level sensor | 1 | |
| 18 | 43 95 513 Cover 1995-1998 • PETROL | 1 | |
| 19 | 79 78 661 Hexagon screw PETROL | 1 | |
| 20 | 79 70 072 Hose clamp -1997 • PETROL | 3 | |
| 20 | 46 85 947 Hose clamp 1997- • PETROL | 3 | |
| 21 | 79 70 049 Hose clamp PETROL | 1 | |
| 22 | 85 36 419 11 900 515 Clip PETROL | 2 | |
| 23 | 75 39 984 Clamp PETROL | 1 | |
| 24 | 79 70 064 Hose clamp -1997 • PETROL | 2 | |
| 24 | 49 40 326 Hose clamp 1997- • PETROL | 2 | |
| 25 | 79 70 106 Hose clamp PETROL | 3 | |
| 26 | 79 70 098 Hose clamp -1997 • PETROL | 1 | |
| 26 | 49 40 318 Hose clamp 1997- • PETROL | 1 | |
| 27 | 79 70 122 Hose clamp PETROL | 1 | |
| 29 | 91 49 071 Hose PETROL | 1 | |
| 30 | 40 87 649 Hose clamp PETROL | 4 | |
| 31 | 91 38 587 Hose PETROL | 1 | |
| 32 | 74 86 806 Nipple PETROL | 1 | |
| 33 | 83 26 712 41 61 162 Seal PETROL | 1 | |
| 34 | 91 78 849 55 558 952 Hose 1997-1998 • PETROL | 1 | |
| 35 | 46 85 947 Hose clamp 1997-1998 • PETROL | 2 | |
| 36 | Coolant pumpCooling system PETROL | ||
| 37 | TubeCooling system PETROL | ||
| 38 | TubeCooling system PETROL |
