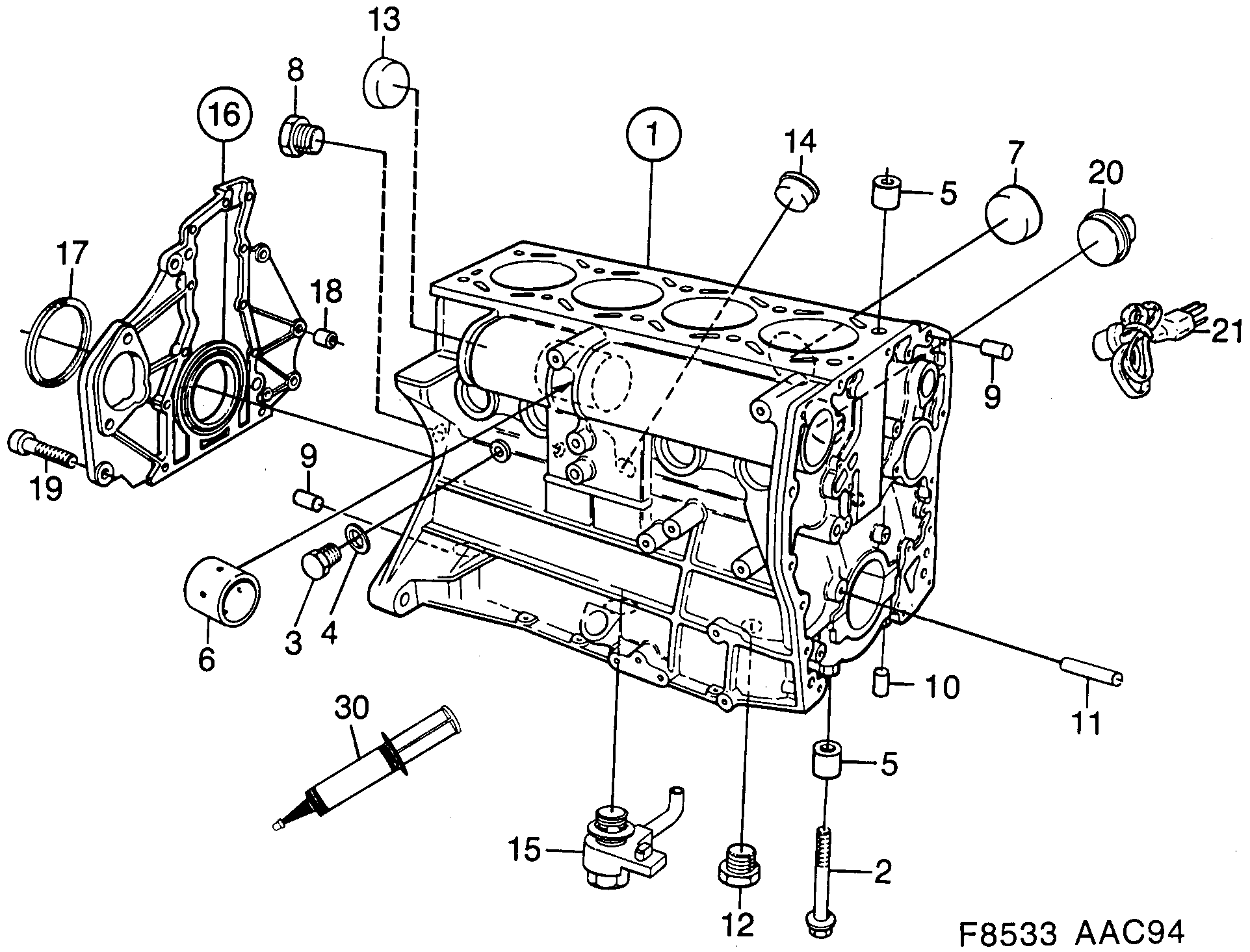

210: Engine - Short block - Cylinder block
(1994 - 1998 | PETROL) | For 900 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 39 262 Cylinder block -1998 • B206I | 1 | |
| 1 | 91 74 228 30 558 267 Cylinder block -1998 • B204I | 1 | |
| 1 | 91 39 312 Cylinder block -1998 • B234I | 1 | |
| 1 | 91 39 304 Cylinder block -1998 • B204L | 1 | |
| 2 | 91 28 687 Screw PETROL | 10 | |
| 3 | 81 23 721 75 63 042 Plug PETROL | 1 | |
| 4 | 81 24 141 92 150 435 Gasket PETROL | 1 | |
| 5 | 83 46 470 Guide PETROL | 5 | |
| 6 | 75 88 684 Bushing -1998 • PETROL | 2 | |
| 7 | 79 85 120 Sealing washer PETROL | 7 | |
| 8 | 83 48 047 Plug PETROL | 1 | |
| 9 | 75 85 052 Guide PETROL | 4 | |
| 10 | 79 49 548 Pin PETROL | 5 | |
| 11 | 79 50 033 Pin B206I | 1 | |
| 11 | 79 50 066 Pin PETROL | 1 | |
| 12 | 91 15 049 30 520 417 Plug PETROL | 4 | |
| 13 | 81 23 259 92 151 501 Sealing washer PETROL | 2 | |
| 14 | 81 23 218 Sealing washer PETROL | 1 | |
| 15 | 91 67 677 Piston cooling jet B204L, B234I | 4 | |
| 16 | 91 74 194 55 557 715 Plate 1997-1998 • PETROL | 1 | |
| 17 | 91 74 202 55 557 240 Seal 1997-1998 • PETROL • crankshaft rear | 1 | |
| 18 | 91 29 800 Guide sleeve PETROL | 2 | |
| 19 | 79 78 109 11 900 354 Screw 1997-1998 • PETROL | 12 | |
| 20 | 47 25 883 Engine heater PETROL | 1 | |
| 21 | 43 97 311 Extension cable PETROL | 1 | |
| 30 | 90 297 970 Flange sealant PETROL • 50 ML | X |
