Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

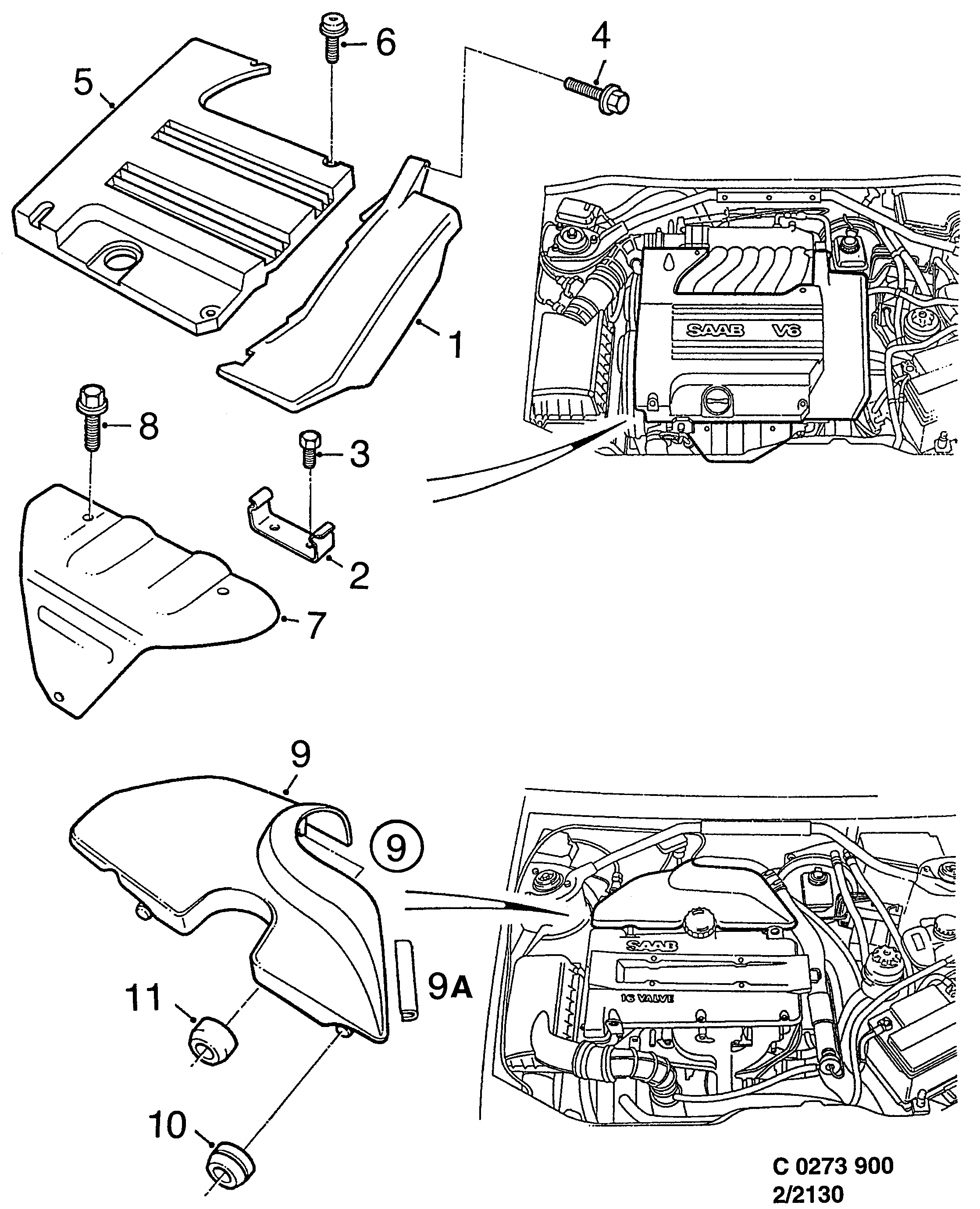

Pos.	Part No.	Description	Usage	Qty
1	43 94 334 Cover 1994-1997 • B258	Cover	1994-1997 B258	1
2	44 43 339 Clamp 1994-1997 • B258	Clamp	1994-1997 B258	1
3	79 78 091 11 900 353 Screw 1994-1997 • B258	Screw	1994-1997 B258	2
4	79 78 174 Screw 1994-1997 • B258	Screw	1994-1997 B258	1
5	42 29 068 Engine cover 1994-1997 • B258	Engine cover	1994-1997 B258	1
6	91 45 764 30 551 902 Screw 1994-1997 • B258	Screw	1994-1997 B258	4
7	45 04 916 47 26 659 Cover 1994-1997 • B258	Cover	1994-1997 B258	1
8	45 02 076 11 093 971 Screw 1994-1997 • B258	Screw	1994-1997 B258	1
9	46 24 458 Cover B204L	Cover	B204L	1
9	42 28 169 46 24 458 Cover B204L	Cover	B204L	1
9A	46 24 466 Protecting moulding B204L	Protecting moulding	B204L	1
10	40 27 488 Rubber bushing B204L	Rubber bushing	B204L	2
11	43 94 318 Bushing B204L	Bushing	B204L	1

Pos.	Part No.	Description	Usage	Qty
1	43 94 334 Cover 1994-1997 • B258	Cover	1994-1997 B258	1
2	44 43 339 Clamp 1994-1997 • B258	Clamp	1994-1997 B258	1
3	79 78 091 11 900 353 Screw 1994-1997 • B258	Screw	1994-1997 B258	2
4	79 78 174 Screw 1994-1997 • B258	Screw	1994-1997 B258	1
5	42 29 068 Engine cover 1994-1997 • B258	Engine cover	1994-1997 B258	1
6	91 45 764 30 551 902 Screw 1994-1997 • B258	Screw	1994-1997 B258	4
7	45 04 916 47 26 659 Cover 1994-1997 • B258	Cover	1994-1997 B258	1
8	45 02 076 11 093 971 Screw 1994-1997 • B258	Screw	1994-1997 B258	1
9	46 24 458 Cover B204L	Cover	B204L	1
9	42 28 169 46 24 458 Cover B204L	Cover	B204L	1
9A	46 24 466 Protecting moulding B204L	Protecting moulding	B204L	1
10	40 27 488 Rubber bushing B204L	Rubber bushing	B204L	2
11	43 94 318 Bushing B204L	Bushing	B204L	1

2130: Engine - Engine bay cover
