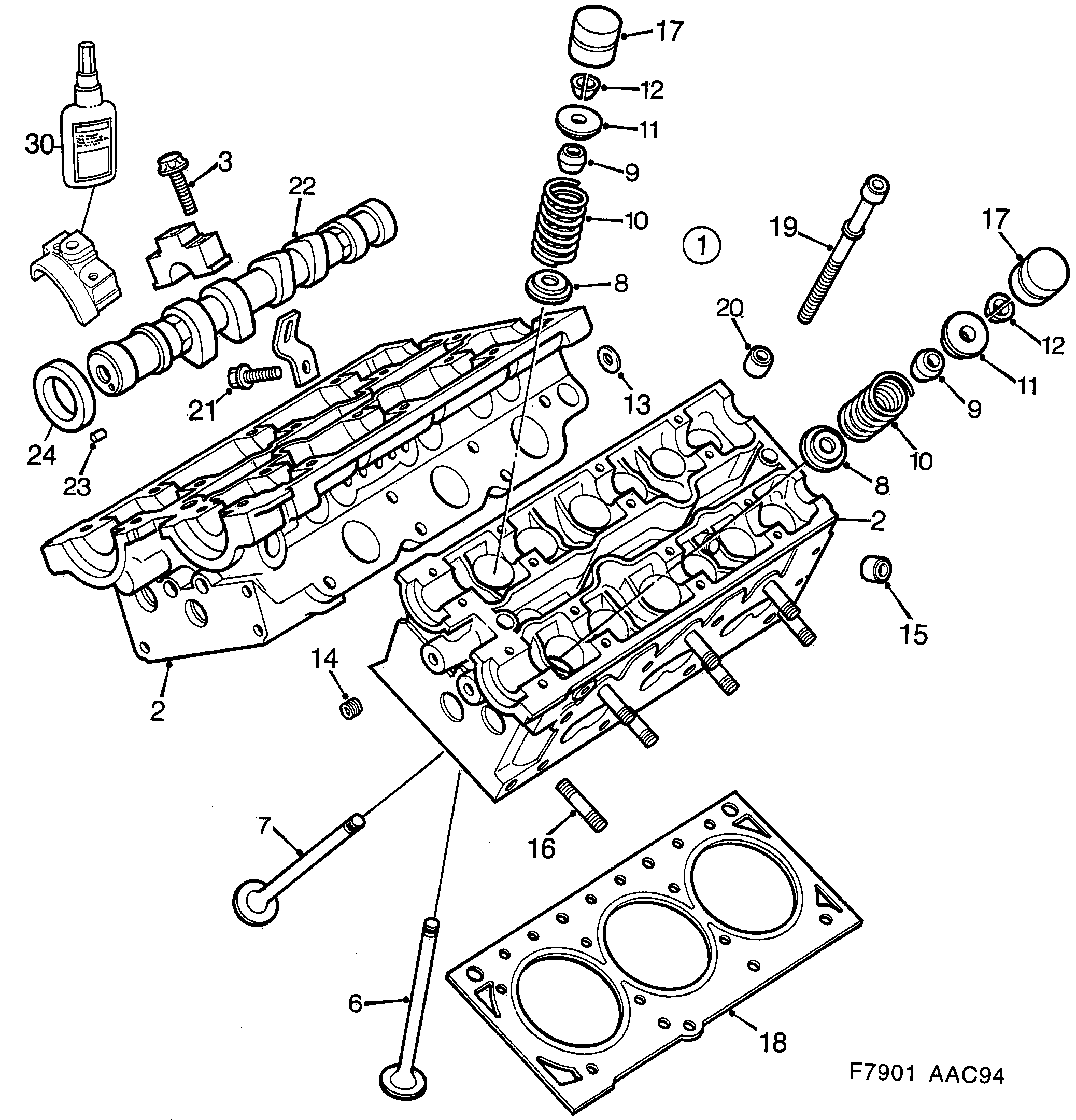

390: Engine - Short block - Cylinder head

(1994 - 1997 | 6-CYL) | For 900 (1997)

100%

(N°360)

Section 390

(N°420)

Pos.	Part No.	Description	Usage	Qty
1	88 22 090 Cylinder head 41 • REAR,(CYL.1,3,5) \| Also available...	Cylinder head	41 REAR,(CYL.1,3,5) \| Also available...	1
1	88 22 108 88 28 782 Cylinder head 41 • FRONT,(CYL.2,4,6) \| Also available...	Cylinder head	41 FRONT,(CYL.2,4,6) \| Also available...	1
2	45 00 534 Cylinder head 41 • REAR,(CYL.1,3,5)	Cylinder head	41 REAR,(CYL.1,3,5)	1
2	45 00 542 88 28 782 Cylinder head 41 • FRONT,(CYL.2,4,6)	Cylinder head	41 FRONT,(CYL.2,4,6)	1
3	45 00 732 11 093 782 Screw 41	Screw	41	16
6	45 00 849 90 412 277 Inlet valve 41 • INLET	Inlet valve	41 INLET	12
6	88 22 355 Inlet valve 41 • 0,075MM,INLET \| Oversize.	Inlet valve	41 0,075MM,INLET \| Oversize.	12
6	88 22 363 Inlet valve 41 • 0,150MM,INLET \| Oversize.	Inlet valve	41 0,150MM,INLET \| Oversize.	12
7	45 00 864 90 410 813 Exhaust valve 41 • EXHAUST	Exhaust valve	41 EXHAUST	12
7	88 22 371 Exhaust valve 41 • 0,075MM,EXHAUST \| Oversize.	Exhaust valve	41 0,075MM,EXHAUST \| Oversize.	12
7	88 22 389 Exhaust valve 41 • 0,150MM,EXHAUST \| Oversize.	Exhaust valve	41 0,150MM,EXHAUST \| Oversize.	12
8	45 00 880 90 410 740 Spring washer 41	Spring washer	41	24
9	45 00 898 90 410 741 Seal 41	Seal	41	24
10	45 00 906 90 448 050 Valve spring 41	Valve spring	41	24
11	45 00 914 90 354 649 Valve spring washer 41	Valve spring washer	41	24
12	45 00 922 90 354 648 Valve cone 41	Valve cone	41	48
13	47 70 004 90 502 542 Sealing washer 41 • (4500765)	Sealing washer	41 (4500765)	8
14	45 00 195 11 095 512 Screw plug 41	Screw plug	41	8
15	45 00 823 90 500 009 Sleeve -2008 • 41	Sleeve	-2008 41	4
16	47 73 370 90 106 924 Stud 1997-1997 • 41	Stud	1997-1997 41	14
17	47 70 301 91 17 903 Tappet 1995-1997 • 41 • (4621298)	Tappet	1995-1997 41 (4621298)	24
18	47 73 487 Gasket 1997-1997 • 41	Gasket	1997-1997 41	2
19	45 01 060 90 466 480 Screw 41	Screw	41	16
20	43 46 854 11 093 601 Screw 41	Screw	41	1
21	45 01 110 11 093 611 Screw 41	Screw	41	1
22	47 70 343 90 540 002 Camshaft 1996-1997 • 41	Camshaft	1996-1997 41	4
23	46 21 314 90 501 111 Sleeve 1995-1997 • 41	Sleeve	1995-1997 41	1
24	45 03 983 90 298 390 Sealing ring 41 • (4770251)	Sealing ring	41 (4770251)	4
30	74 96 268 Nut lock 41 • 50 ML \| normal...	Nut lock	41 50 ML \| normal...	X
