Question 1

Where to find the exploded diagram for Short block on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	46 23 732 90 501 638 Valve cover 1995-1997 • 41 • REAR,(CYL.1,3,5)	Valve cover	1995-1997 41 REAR,(CYL.1,3,5)	1
1	46 23 740 90 501 637 Valve cover 1995-1997 • 41 • FRONT,(CYL.2,4,6)	Valve cover	1995-1997 41 FRONT,(CYL.2,4,6)	1
2	45 04 247 90 411 826 O-ring 41	O-ring	41	8
3	47 70 319 Gasket kit Kits 1995-1997 • 41	Gasket kit Kits	1995-1997 41	1
4	45 02 274 11 093 872 Screw 41	Screw	41	16
5	45 02 340 90 412 508 Oil filler cap 41	Oil filler cap	41	1
	45 02 357 Oil filler cap 41 • Not as separate spare...	Oil filler cap	41 Not as separate spare...	1
6	45 02 373 90 448 217 Seal 41	Seal	41	1
7	47 28 309 12 786 704 Oil trap 1997-1997 • 41	Oil trap	1997-1997 41	1
8	45 02 373 90 448 217 Seal 1997-1997 • 41	Seal	1997-1997 41	1
10	87 81 841 93 165 267 Flange sealant 41 • 280 ML	Flange sealant	41 280 ML	X

Pos.	Part No.	Description	Usage	Qty
1	46 23 732 90 501 638 Valve cover 1995-1997 • 41 • REAR,(CYL.1,3,5)	Valve cover	1995-1997 41 REAR,(CYL.1,3,5)	1
1	46 23 740 90 501 637 Valve cover 1995-1997 • 41 • FRONT,(CYL.2,4,6)	Valve cover	1995-1997 41 FRONT,(CYL.2,4,6)	1
2	45 04 247 90 411 826 O-ring 41	O-ring	41	8
3	47 70 319 Gasket kit Kits 1995-1997 • 41	Gasket kit Kits	1995-1997 41	1
4	45 02 274 11 093 872 Screw 41	Screw	41	16
5	45 02 340 90 412 508 Oil filler cap 41	Oil filler cap	41	1
	45 02 357 Oil filler cap 41 • Not as separate spare...	Oil filler cap	41 Not as separate spare...	1
6	45 02 373 90 448 217 Seal 41	Seal	41	1
7	47 28 309 12 786 704 Oil trap 1997-1997 • 41	Oil trap	1997-1997 41	1
8	45 02 373 90 448 217 Seal 1997-1997 • 41	Seal	1997-1997 41	1
10	87 81 841 93 165 267 Flange sealant 41 • 280 ML	Flange sealant	41 280 ML	X

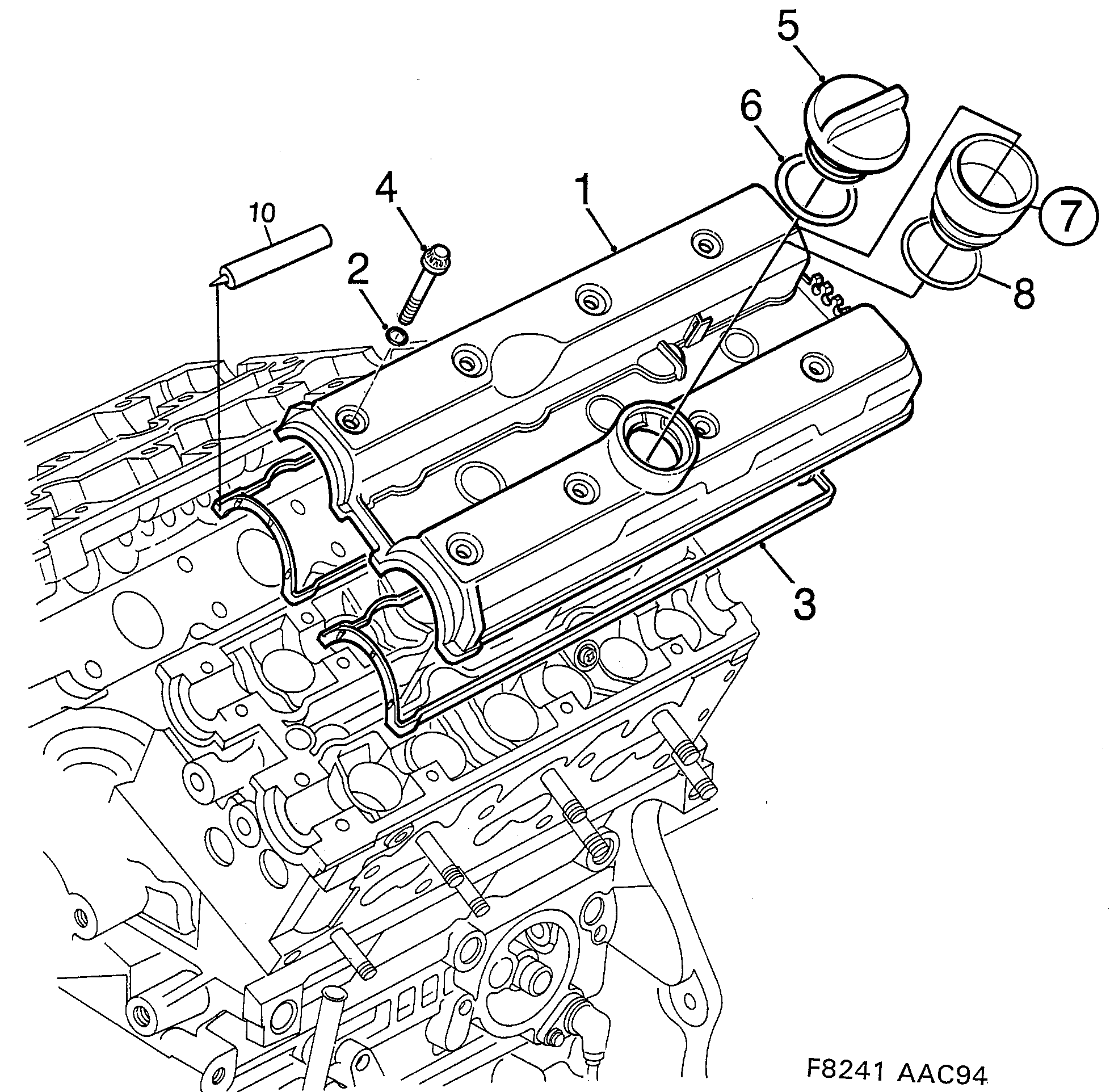

420: Engine - Short block - Valve cover
