Question 1

Where to find the exploded diagram for Short block on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

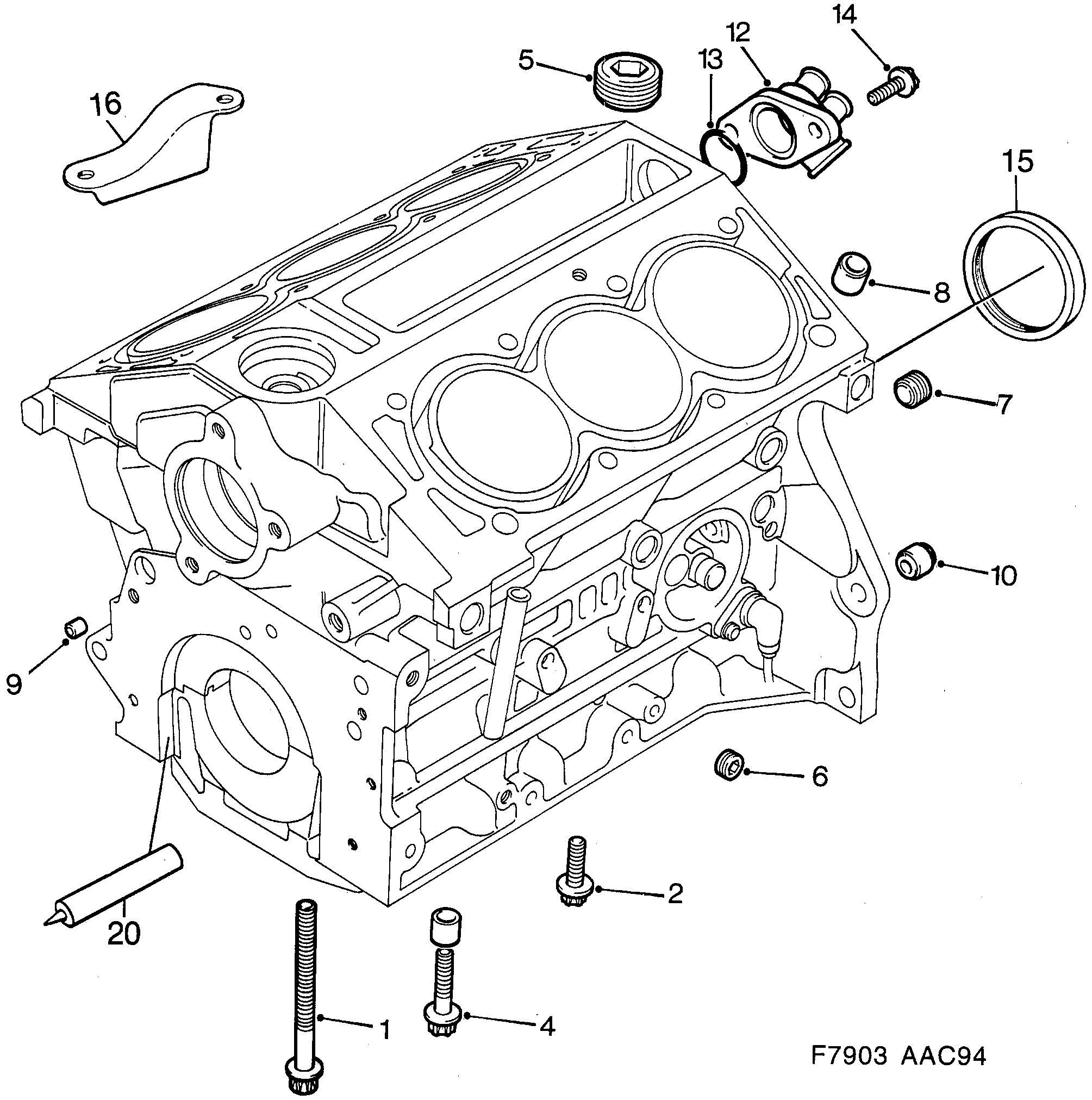

Pos.	Part No.	Description	Usage	Qty
1	45 00 302 90 412 156 Screw 41	Screw	41	8
2	45 00 351 11 093 961 Screw 41	Screw	41	2
4	45 00 401 90 412 158 Screw 41	Screw	41	4
5	45 00 229 11 085 731 Screw plug 41 • M30X12MM	Screw plug	41 M30X12MM	3
6	45 00 195 11 095 512 Screw plug 41 • M14X8MM	Screw plug	41 M14X8MM	3
7	45 00 179 11 049 133 Screw plug 41 • M10X10MM	Screw plug	41 M10X10MM	3
8	45 00 245 90 353 654 Sleeve 41 • 16X12MM	Sleeve	41 16X12MM	4
9	45 00 328 90 351 709 Sleeve 41 • 10X6,5MM	Sleeve	41 10X6,5MM	2
10	45 00 336 90 351 708 Sleeve 41 • 12X15,5MM	Sleeve	41 12X15,5MM	2
12	43 94 797 59 62 923 Pipe end 41	Pipe end	41	1
13	43 46 839 O-ring 41	O-ring	41	1
14	43 46 854 11 093 601 Screw 41	Screw	41	2
15	47 70 095 90 325 572 Sealing ring 1995-1997 • 41	Sealing ring	1995-1997 41	1
16	45 00 344 90 466 550 Shield plate 41	Shield plate	41	1
20	87 81 841 93 165 267 Flange sealant 41 • 280 ML	Flange sealant	41 280 ML	X

Pos.	Part No.	Description	Usage	Qty
1	45 00 302 90 412 156 Screw 41	Screw	41	8
2	45 00 351 11 093 961 Screw 41	Screw	41	2
4	45 00 401 90 412 158 Screw 41	Screw	41	4
5	45 00 229 11 085 731 Screw plug 41 • M30X12MM	Screw plug	41 M30X12MM	3
6	45 00 195 11 095 512 Screw plug 41 • M14X8MM	Screw plug	41 M14X8MM	3
7	45 00 179 11 049 133 Screw plug 41 • M10X10MM	Screw plug	41 M10X10MM	3
8	45 00 245 90 353 654 Sleeve 41 • 16X12MM	Sleeve	41 16X12MM	4
9	45 00 328 90 351 709 Sleeve 41 • 10X6,5MM	Sleeve	41 10X6,5MM	2
10	45 00 336 90 351 708 Sleeve 41 • 12X15,5MM	Sleeve	41 12X15,5MM	2
12	43 94 797 59 62 923 Pipe end 41	Pipe end	41	1
13	43 46 839 O-ring 41	O-ring	41	1
14	43 46 854 11 093 601 Screw 41	Screw	41	2
15	47 70 095 90 325 572 Sealing ring 1995-1997 • 41	Sealing ring	1995-1997 41	1
16	45 00 344 90 466 550 Shield plate 41	Shield plate	41	1
20	87 81 841 93 165 267 Flange sealant 41 • 280 ML	Flange sealant	41 280 ML	X

450: Engine - Short block - Cylinder block
