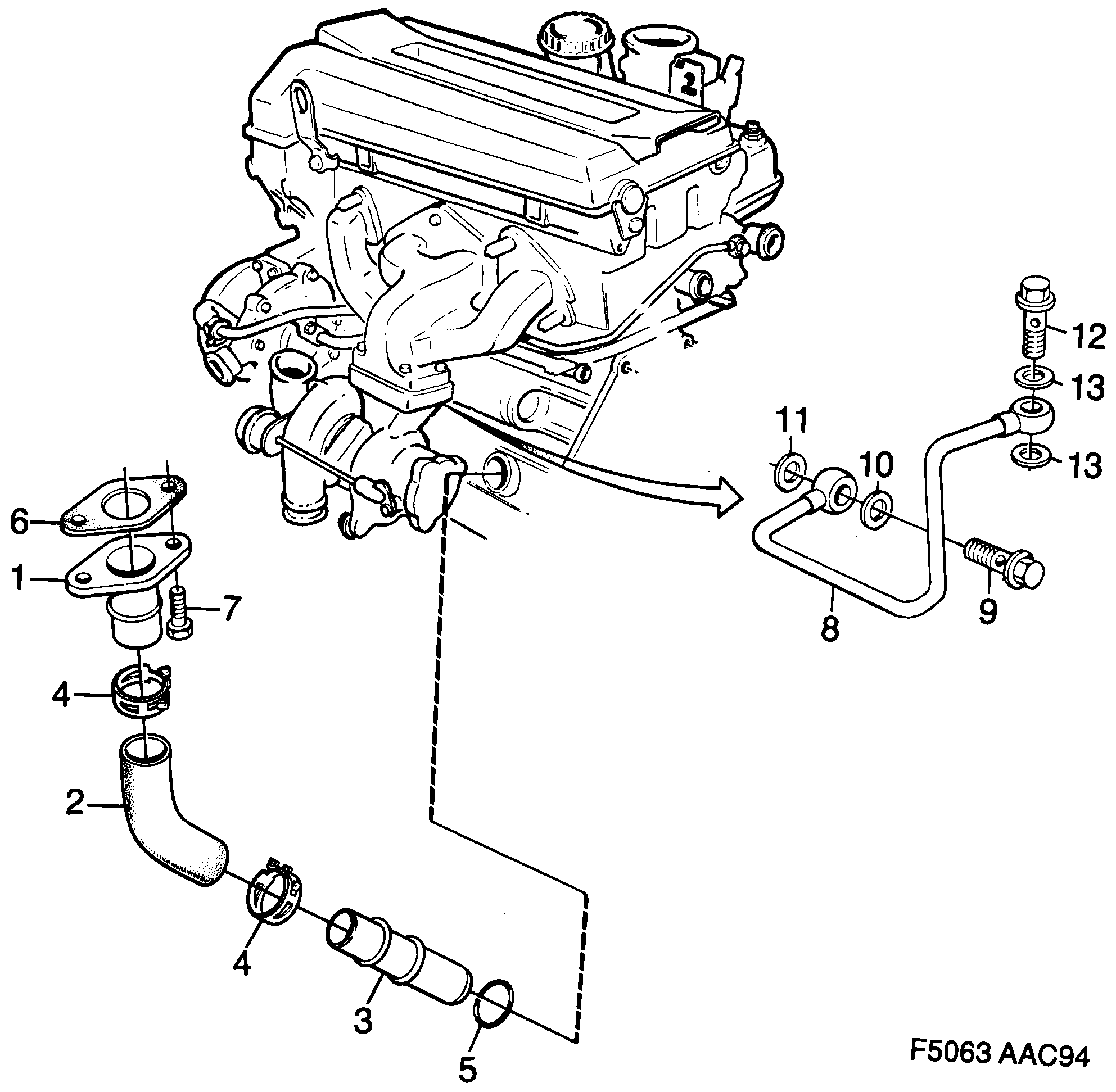

750: Engine - Lubricating system - Oil pipe - Turbo
(1994 - 1998 | TURBO) | For 900 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 44 130 Tube 44 | 1 | |
| 2 | 91 36 441 91 88 665 Hose 44 | 1 | |
| 3 | 91 29 396 30 551 796 Tube 44 | 1 | |
| 4 | 75 86 050 Clamp 44 | 2 | |
| 5 | 75 02 263 O-ring 44 | 1 | |
| 6 | 91 14 075 Gasket 44 | 1 | |
| 7 | 43 48 215 11 097 411 Screw 1997-1998 • 44 | 2 | |
| 8 | 91 65 473 Tube 44 | 1 | |
| 9 | 91 43 967 90 490 325 Banjo screw 44 | 1 | |
| 10 | 81 24 141 92 150 435 Gasket 44 | 1 | |
| 11 | 83 26 712 41 61 162 Seal 44 | 1 | |
| 12 | 91 36 524 90 490 324 Banjo screw 44 | 1 | |
| 13 | 81 24 133 11 066 422 Gasket 44 | 2 |
