Question 1

Where to find the exploded diagram for Fuel system on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

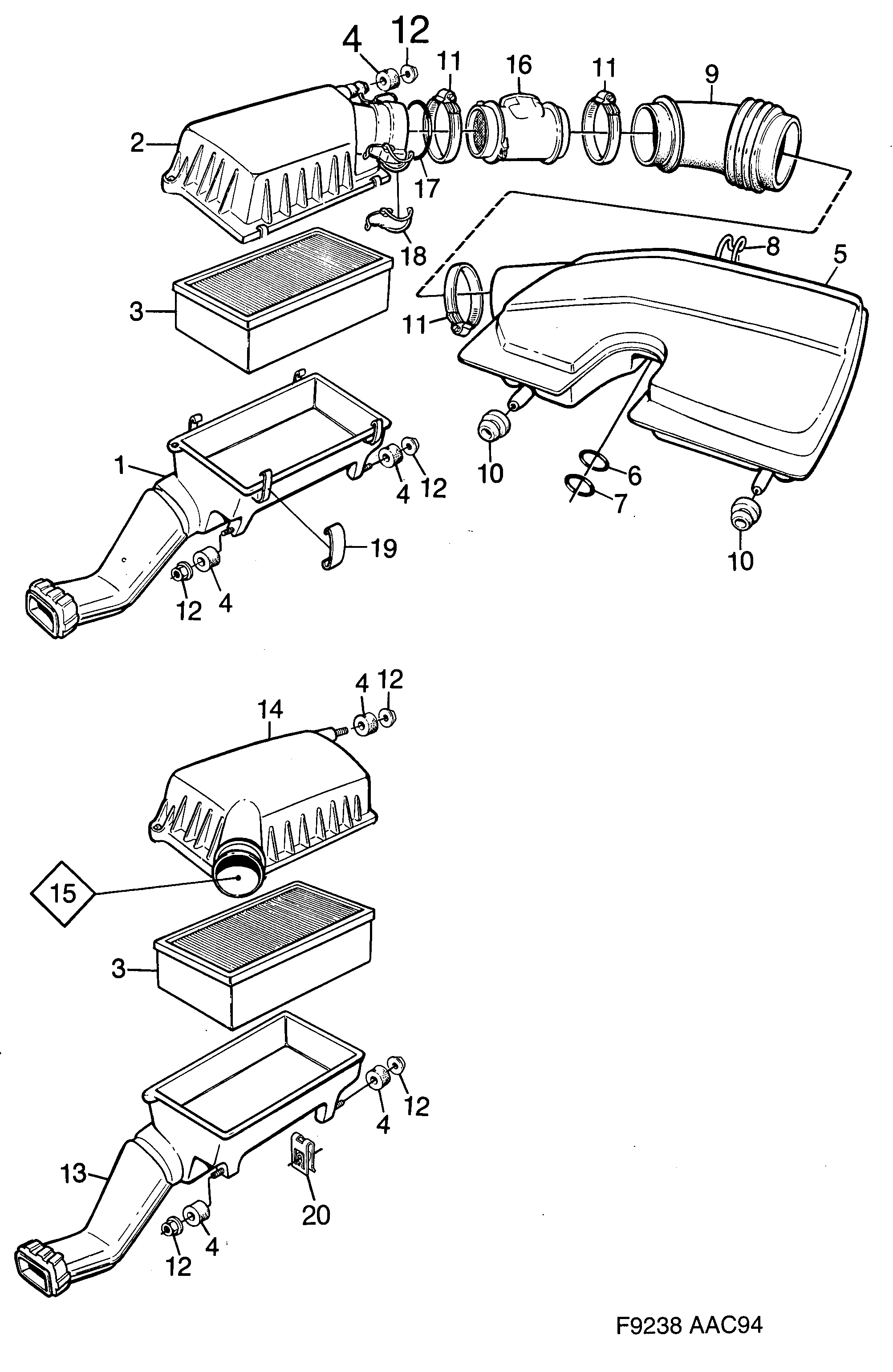

Pos.	Part No.	Description	Usage	Qty
1	42 36 014 Air cleaner I	Air cleaner	I	1
2	42 36 022 Cover I	Cover	I	1
3	42 36 030 Air filter I	Air filter	I	1
4	42 35 768 92 81 374 Rubber spacer PETROL	Rubber spacer	PETROL	3
5	42 35 230 Silencer I	Silencer	I	1
6	42 29 522 O-ring PETROL	O-ring	PETROL	1
7	42 29 530 O-ring PETROL	O-ring	PETROL	1
8	42 29 548 Clamp PETROL	Clamp	PETROL	1
9	42 35 222 Hose I	Hose	I	1
10	40 27 488 Rubber bushing PETROL	Rubber bushing	PETROL	2
11	79 70 155 92 153 080 Hose clamp PETROL	Hose clamp	PETROL	2
12	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	3
13	42 36 014 Air cleaner TURBO	Air cleaner	TURBO	1
14	42 36 089 Air cleaner TURBO	Air cleaner	TURBO	1
15	HoseSupercharging system PETROL	HoseSupercharging system PETROL			1
16	47 80 185 Mass air flow sensor 1997-1998 • PETROL	Mass air flow sensor	1997-1998 PETROL	1
17	41 56 295 O-ring I	O-ring	I	1
18	44 45 854 Clip PETROL	Clip	PETROL	2
19	44 45 862 Clip PETROL	Clip	PETROL	4
20	44 45 847 Clip PETROL	Clip	PETROL	3

Pos.	Part No.	Description	Usage	Qty
1	42 36 014 Air cleaner I	Air cleaner	I	1
2	42 36 022 Cover I	Cover	I	1
3	42 36 030 Air filter I	Air filter	I	1
4	42 35 768 92 81 374 Rubber spacer PETROL	Rubber spacer	PETROL	3
5	42 35 230 Silencer I	Silencer	I	1
6	42 29 522 O-ring PETROL	O-ring	PETROL	1
7	42 29 530 O-ring PETROL	O-ring	PETROL	1
8	42 29 548 Clamp PETROL	Clamp	PETROL	1
9	42 35 222 Hose I	Hose	I	1
10	40 27 488 Rubber bushing PETROL	Rubber bushing	PETROL	2
11	79 70 155 92 153 080 Hose clamp PETROL	Hose clamp	PETROL	2
12	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	3
13	42 36 014 Air cleaner TURBO	Air cleaner	TURBO	1
14	42 36 089 Air cleaner TURBO	Air cleaner	TURBO	1
15	HoseSupercharging system PETROL	HoseSupercharging system PETROL			1
16	47 80 185 Mass air flow sensor 1997-1998 • PETROL	Mass air flow sensor	1997-1998 PETROL	1
17	41 56 295 O-ring I	O-ring	I	1
18	44 45 854 Clip PETROL	Clip	PETROL	2
19	44 45 862 Clip PETROL	Clip	PETROL	4
20	44 45 847 Clip PETROL	Clip	PETROL	3

780: Engine - Fuel system - Air cleaner - 4-cylinder
