Question 1

Where to find the exploded diagram for Fuel system on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	42 36 048 Air cleaner 41	Air cleaner	41	1
2	42 36 055 Air cleaner 41	Air cleaner	41	1
3	42 36 063 Filter cartridge 41	Filter cartridge	41	1
4	46 61 302 Hose 1996-1997 • 41	Hose	1996-1997 41	1
5	46 60 593 Intake air temperature sensor 1996-1997 • 41	Intake air temperature sensor	1996-1997 41	1
6	42 36 113 Hose 41	Hose	41	1
7	42 29 563 Silencer 41	Silencer	41	1
8	42 29 704 O-ring 41	O-ring	41	1
9	42 36 154 Connecting sleeve 41	Connecting sleeve	41	1
10	42 36 147 Hose 41	Hose	41	1
11	79 77 465 92 153 149 Screw 41	Screw	41	1
12	42 35 768 92 81 374 Rubber spacer 41	Rubber spacer	41	3
13	43 45 138 11 089 471 Hexagon nut 41	Hexagon nut	41	3
14	79 70 163 92 150 224 Hose clamp 41	Hose clamp	41	4
15	43 38 679 Adapter 41	Adapter	41	1
16	47 80 177 Mass air flow sensor 1997-1997 • 41	Mass air flow sensor	1997-1997 41	1
17	44 45 854 Clip 41	Clip	41	2
18	46 22 890 Clip 1994- • 41	Clip	1994- 41	4
19	44 45 847 Clip 41	Clip	41	3
20	46 22 908 Screw 1994- • 41	Screw	1994- 41	2
21	46 22 916 Nut 1994- • 41	Nut	1994- 41	2

Pos.	Part No.	Description	Usage	Qty
1	42 36 048 Air cleaner 41	Air cleaner	41	1
2	42 36 055 Air cleaner 41	Air cleaner	41	1
3	42 36 063 Filter cartridge 41	Filter cartridge	41	1
4	46 61 302 Hose 1996-1997 • 41	Hose	1996-1997 41	1
5	46 60 593 Intake air temperature sensor 1996-1997 • 41	Intake air temperature sensor	1996-1997 41	1
6	42 36 113 Hose 41	Hose	41	1
7	42 29 563 Silencer 41	Silencer	41	1
8	42 29 704 O-ring 41	O-ring	41	1
9	42 36 154 Connecting sleeve 41	Connecting sleeve	41	1
10	42 36 147 Hose 41	Hose	41	1
11	79 77 465 92 153 149 Screw 41	Screw	41	1
12	42 35 768 92 81 374 Rubber spacer 41	Rubber spacer	41	3
13	43 45 138 11 089 471 Hexagon nut 41	Hexagon nut	41	3
14	79 70 163 92 150 224 Hose clamp 41	Hose clamp	41	4
15	43 38 679 Adapter 41	Adapter	41	1
16	47 80 177 Mass air flow sensor 1997-1997 • 41	Mass air flow sensor	1997-1997 41	1
17	44 45 854 Clip 41	Clip	41	2
18	46 22 890 Clip 1994- • 41	Clip	1994- 41	4
19	44 45 847 Clip 41	Clip	41	3
20	46 22 908 Screw 1994- • 41	Screw	1994- 41	2
21	46 22 916 Nut 1994- • 41	Nut	1994- 41	2

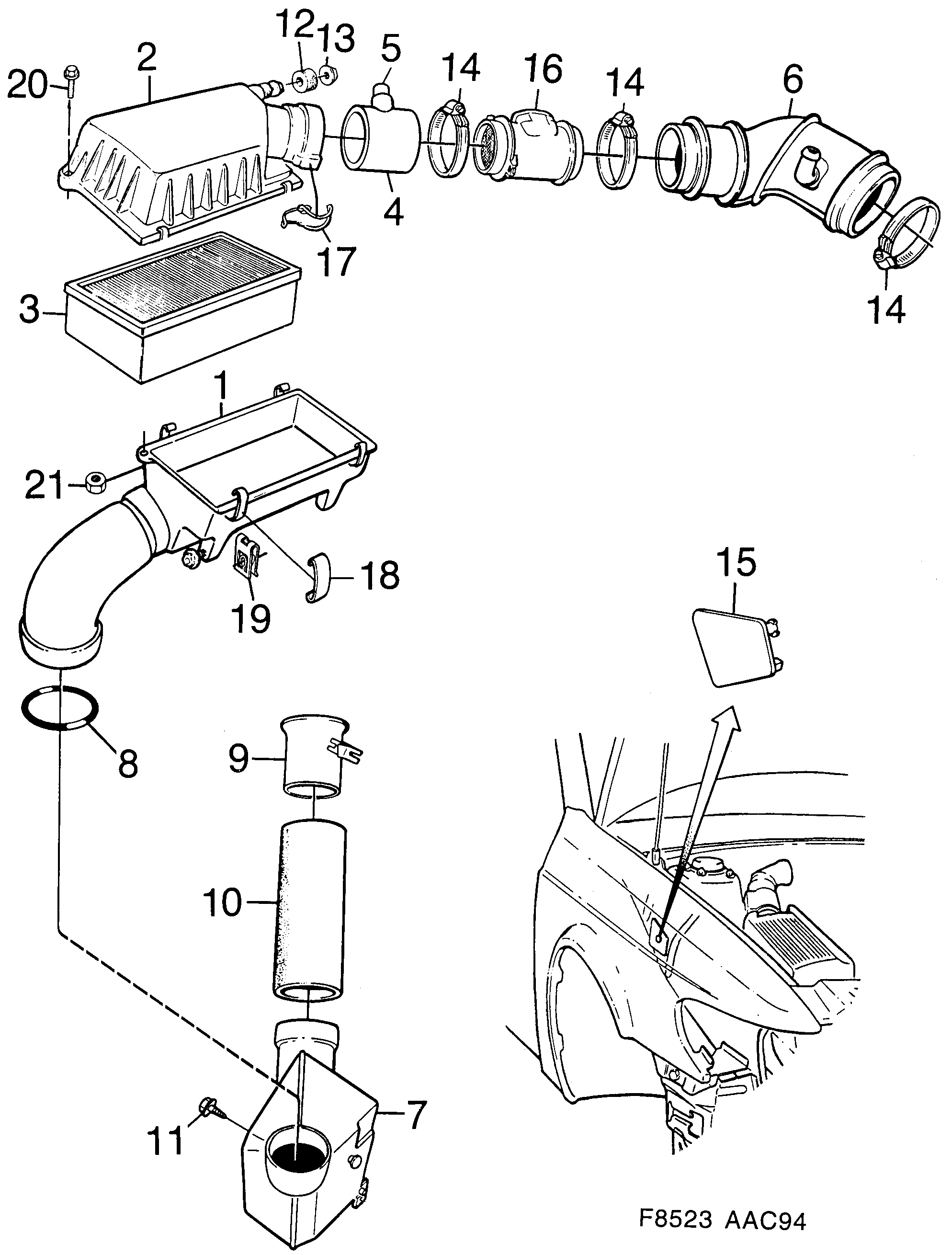

810: Engine - Fuel system - Air cleaner
