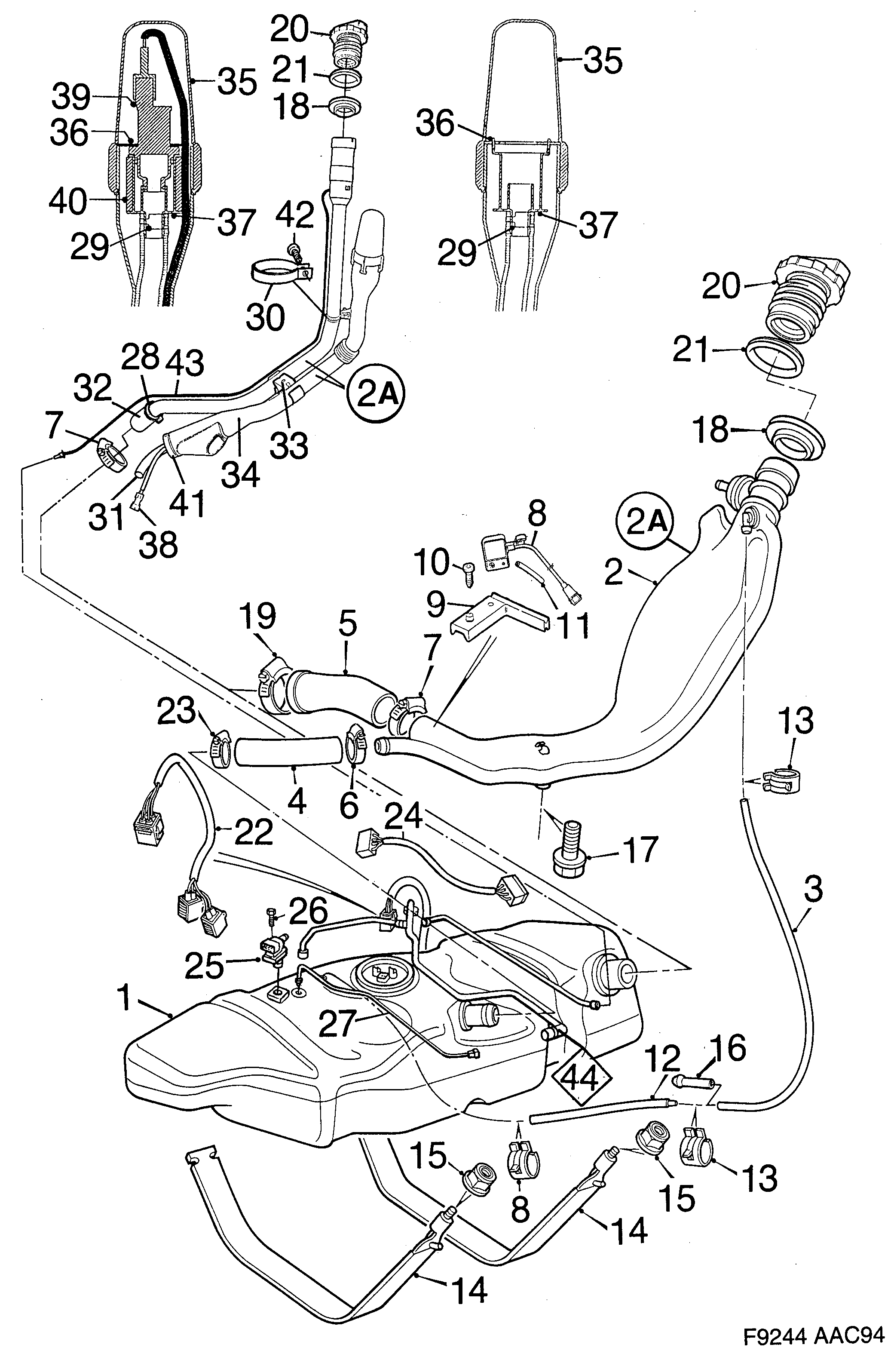

840: Engine - Fuel system - Fuel tank
(1994 - 1998) | For 900 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 43 94 441 51 96 126 Tank 1996-1998 | 1 | |
| 2A | 44 44 626 Filler pipe 1996-1997, LHD • B204L, B258I | 1 | |
| 2A | 44 45 979 54 62 346 Filler pipe 1996-1997, LHD | 1 | |
| 2A | 46 22 585 Filler pipe 1996-1997, LHD • B204L, B258I | 1 | |
| 2A | 46 22 593 Filler pipe 1996-1997, LHD | 1 | |
| 2A | 43 97 006 Filler pipe 1996-1998 • RU | 1 | |
| 2A | 43 97 030 Filler pipe 1996-1998 • RU | 1 | |
| 3 | 44 45 631 Hose 1996-1998 • Not as separate spare... | 1 | |
| 4 | 44 40 244 Hose | 1 | |
| 4 | 43 94 508 Hose 1996-1998, LHD | 1 | |
| 5 | 46 22 015 Hose 1996-1998 | 1 | |
| 5 | 43 94 490 Hose 1996-1998, LHD | 1 | |
| 6 | 45 26 836 Hose clamp | 1 | |
| 7 | 46 22 304 Hose clamp 1996-1998 | 1 | |
| 7 | 49 40 029 Hose clamp 1996-1998, LHD | 1 | |
| 9 | 43 96 263 Bracket 1996-1998, LHD | 1 | |
| 10 | 79 67 771 Screw 1996-1998, LHD | 1 | |
| 11 | 43 96 313 Hose 1996-1998, LHD | 1 | |
| 8 | 44 44 758 Pressure sensor 1996-1998, LHD • NLS | 1 | |
| 14 | 42 35 040 Tensioning band | 2 | |
| 15 | 79 71 922 92 150 143 Nut | 1 | |
| 17 | 42 26 023 Screw 1994-1997 | 1 | |
| 18 | 42 27 294 51 95 201 Sealing collar | 1 | |
| 19 | 46 22 304 Hose clamp 1996-1998 | 1 | |
| 20 | 47 27 038 Filler cap 1996-1998, LHD • Name of the substance... | 1 | |
| 21 | 75 11 751 Gasket | 1 | |
| 22 | Connection | ||
| 23 | 45 26 836 Hose clamp 1996-1998 | 1 |
