Question 1

Where to find the exploded diagram for Battery on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Battery on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Battery?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Battery?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Battery, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Battery suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

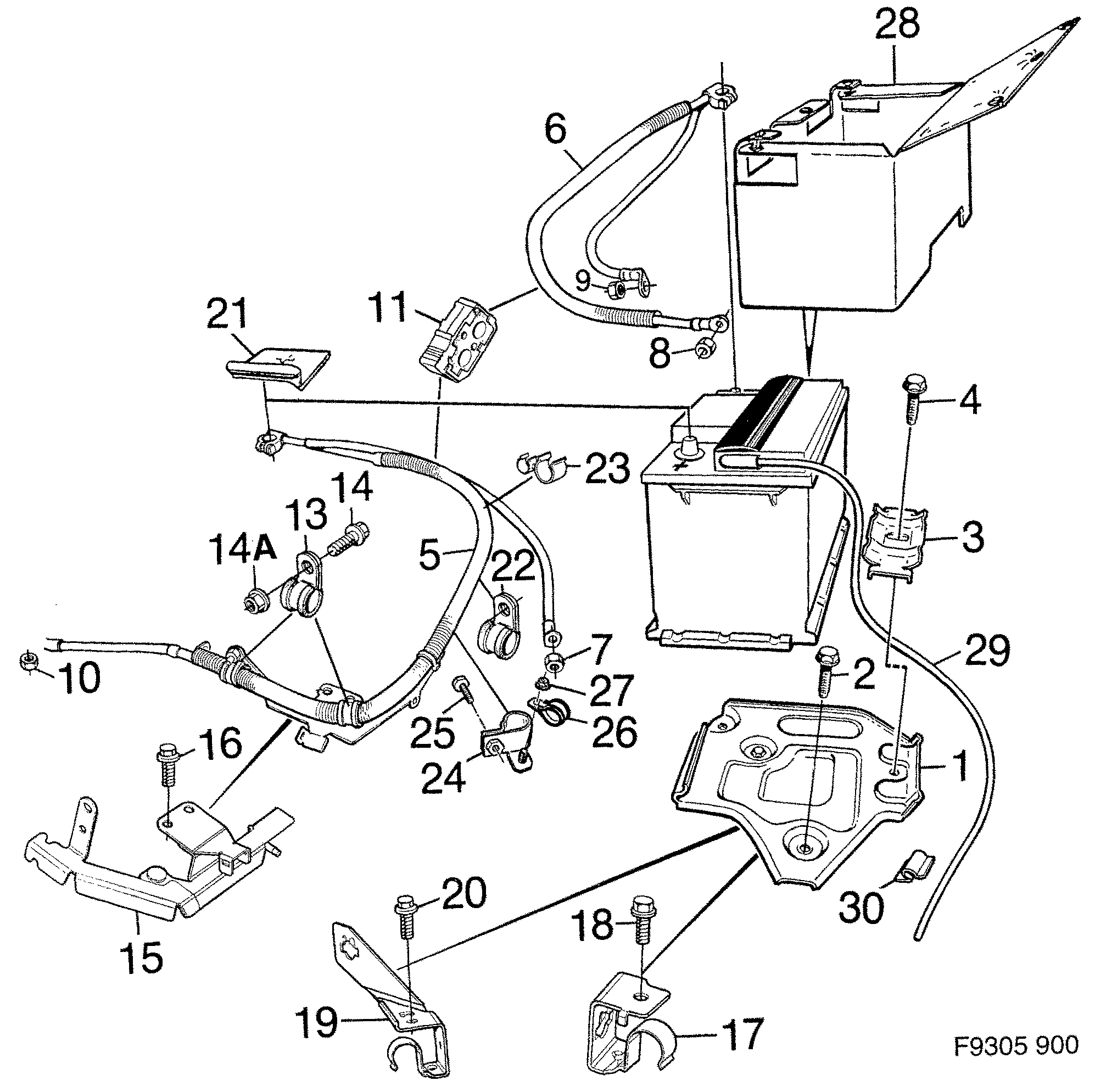

Pos.	Part No.	Description	Usage	Qty
	Battery See accessories catalogue	Battery	See accessories catalogue
1	43 35 527 Battery shelf	Battery shelf		1
2	79 78 091 11 900 353 Screw	Screw		2
3	42 22 667 90 228 223 Brace	Brace		1
4	79 78 216 11 900 367 Hexagon screw	Hexagon screw		1
5	44 08 597 52 43 555 Cable -1997 • +	Cable	-1997 +	1
5	49 46 158 52 43 555 Cable 1997- • +	Cable	1997- +	1
5	45 84 249 52 43 555 Cable 1995-1997	Cable	1995-1997	1
5	49 46 166 52 43 555 Cable 1997-	Cable	1997-	1
6	42 21 875 49 46 182 Cable -1997 • -	Cable	-1997 -	1
6	49 46 182 Cable 1997- • -	Cable	1997- -	1
6	44 10 486 49 46 174 Cable -1997 • -	Cable	-1997 -	1
6	49 46 174 Cable 1997- • -	Cable	1997- -	1
7	79 77 952 11 900 452 Hexagon nut alternator	Hexagon nut	alternator	1
8	79 77 952 11 900 452 Hexagon nut starter motor	Hexagon nut	starter motor	1
9	81 51 243 Nut gearbox	Nut	gearbox	1
10	79 77 929 11 900 451 Nut ground	Nut	ground	1
11	44 11 369 Clip	Clip		1
13	79 69 405 Clamp 4-CYL	Clamp	4-CYL	2
13	40 87 557 Clamp 1994-1997 • 6-CYL	Clamp	1994-1997 6-CYL	2
14	79 72 607 92 153 146 Screw 1995- • 4-CYL	Screw	1995- 4-CYL	2
14	79 78 133 Screw 1994-1997 • 6-CYL	Screw	1994-1997 6-CYL	2
14A	79 77 929 11 900 451 Nut 1994-1997 • 6-CYL	Nut	1994-1997 6-CYL	2
15	44 66 959 Cable protection 1994-1997 • 6-CYL	Cable protection	1994-1997 6-CYL	1
16	79 78 091 11 900 353 Screw 1994-1997 • 6-CYL	Screw	1994-1997 6-CYL	3
17	45 36 090 Bracket 1995-1998 • battery cable	Bracket	1995-1998 battery cable	1
18	79 78 091 11 900 353 Screw 1995-1998	Screw	1995-1998	1
19	45 36 090 Bracket 1995-1998 • 4-CYL • battery cable	Bracket	1995-1998 4-CYL battery cable	1
20	79 78 091 11 900 353 Screw 1995-1998	Screw	1995-1998	1
21	45 82 425 Cover +	Cover	+	1
22	79 85 658 49 40 771 Clamp 1994-1997 • 6-CYL	Clamp	1994-1997 6-CYL	2
23	45 88 695 Clip 1995-1997 • 6-CYL	Clip	1995-1997 6-CYL	1
26	46 85 384 Clamp 1996- • TURBO	Clamp	1996- TURBO	1
27	80 73 512 92 150 265 Lock nut 1996-1998 • TURBO	Lock nut	1996-1998 TURBO	1

Pos.	Part No.	Description	Usage	Qty
	Battery See accessories catalogue	Battery	See accessories catalogue
1	43 35 527 Battery shelf	Battery shelf		1
2	79 78 091 11 900 353 Screw	Screw		2
3	42 22 667 90 228 223 Brace	Brace		1
4	79 78 216 11 900 367 Hexagon screw	Hexagon screw		1
5	44 08 597 52 43 555 Cable -1997 • +	Cable	-1997 +	1
5	49 46 158 52 43 555 Cable 1997- • +	Cable	1997- +	1
5	45 84 249 52 43 555 Cable 1995-1997	Cable	1995-1997	1
5	49 46 166 52 43 555 Cable 1997-	Cable	1997-	1
6	42 21 875 49 46 182 Cable -1997 • -	Cable	-1997 -	1
6	49 46 182 Cable 1997- • -	Cable	1997- -	1
6	44 10 486 49 46 174 Cable -1997 • -	Cable	-1997 -	1
6	49 46 174 Cable 1997- • -	Cable	1997- -	1
7	79 77 952 11 900 452 Hexagon nut alternator	Hexagon nut	alternator	1
8	79 77 952 11 900 452 Hexagon nut starter motor	Hexagon nut	starter motor	1
9	81 51 243 Nut gearbox	Nut	gearbox	1
10	79 77 929 11 900 451 Nut ground	Nut	ground	1
11	44 11 369 Clip	Clip		1
13	79 69 405 Clamp 4-CYL	Clamp	4-CYL	2
13	40 87 557 Clamp 1994-1997 • 6-CYL	Clamp	1994-1997 6-CYL	2
14	79 72 607 92 153 146 Screw 1995- • 4-CYL	Screw	1995- 4-CYL	2
14	79 78 133 Screw 1994-1997 • 6-CYL	Screw	1994-1997 6-CYL	2
14A	79 77 929 11 900 451 Nut 1994-1997 • 6-CYL	Nut	1994-1997 6-CYL	2
15	44 66 959 Cable protection 1994-1997 • 6-CYL	Cable protection	1994-1997 6-CYL	1
16	79 78 091 11 900 353 Screw 1994-1997 • 6-CYL	Screw	1994-1997 6-CYL	3
17	45 36 090 Bracket 1995-1998 • battery cable	Bracket	1995-1998 battery cable	1
18	79 78 091 11 900 353 Screw 1995-1998	Screw	1995-1998	1
19	45 36 090 Bracket 1995-1998 • 4-CYL • battery cable	Bracket	1995-1998 4-CYL battery cable	1
20	79 78 091 11 900 353 Screw 1995-1998	Screw	1995-1998	1
21	45 82 425 Cover +	Cover	+	1
22	79 85 658 49 40 771 Clamp 1994-1997 • 6-CYL	Clamp	1994-1997 6-CYL	2
23	45 88 695 Clip 1995-1997 • 6-CYL	Clip	1995-1997 6-CYL	1
26	46 85 384 Clamp 1996- • TURBO	Clamp	1996- TURBO	1
27	80 73 512 92 150 265 Lock nut 1996-1998 • TURBO	Lock nut	1996-1998 TURBO	1

120: Electrical, general - Battery
