Question 1

Where to find the exploded diagram for Wiring and fuses on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Wiring and fuses on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Wiring and fuses?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Wiring and fuses?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Wiring and fuses, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Wiring and fuses suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	48 07 855 Cable harness I • engine	Cable harness	I engine	1
1	48 07 863 Cable harness I • engine	Cable harness	I engine	1
1	48 07 889 Cable harness LHD • I • engine	Cable harness	LHD I engine	1
1	48 07 897 Cable harness LHD • I • engine	Cable harness	LHD I engine	1
2	47 38 704 Cable harness -1997 • TURBO • engine	Cable harness	-1997 TURBO engine	1
2	47 38 720 Cable harness 1997- • TURBO • engine	Cable harness	1997- TURBO engine	1
2	47 38 712 Cable harness -1997 • TURBO • engine	Cable harness	-1997 TURBO engine	1
2	47 38 738 Cable harness 1997- • TURBO • engine	Cable harness	1997- TURBO engine	1
2	47 38 753 Cable harness LHD • TURBO • engine	Cable harness	LHD TURBO engine	1
2	47 38 761 Cable harness LHD • TURBO • engine	Cable harness	LHD TURBO engine	1
5	46 65 998 Ground cable PETROL	Ground cable	PETROL	1
6	79 77 952 11 900 452 Hexagon nut PETROL	Hexagon nut	PETROL	1
7	79 77 929 11 900 451 Nut PETROL	Nut	PETROL	1

Pos.	Part No.	Description	Usage	Qty
1	48 07 855 Cable harness I • engine	Cable harness	I engine	1
1	48 07 863 Cable harness I • engine	Cable harness	I engine	1
1	48 07 889 Cable harness LHD • I • engine	Cable harness	LHD I engine	1
1	48 07 897 Cable harness LHD • I • engine	Cable harness	LHD I engine	1
2	47 38 704 Cable harness -1997 • TURBO • engine	Cable harness	-1997 TURBO engine	1
2	47 38 720 Cable harness 1997- • TURBO • engine	Cable harness	1997- TURBO engine	1
2	47 38 712 Cable harness -1997 • TURBO • engine	Cable harness	-1997 TURBO engine	1
2	47 38 738 Cable harness 1997- • TURBO • engine	Cable harness	1997- TURBO engine	1
2	47 38 753 Cable harness LHD • TURBO • engine	Cable harness	LHD TURBO engine	1
2	47 38 761 Cable harness LHD • TURBO • engine	Cable harness	LHD TURBO engine	1
5	46 65 998 Ground cable PETROL	Ground cable	PETROL	1
6	79 77 952 11 900 452 Hexagon nut PETROL	Hexagon nut	PETROL	1
7	79 77 929 11 900 451 Nut PETROL	Nut	PETROL	1

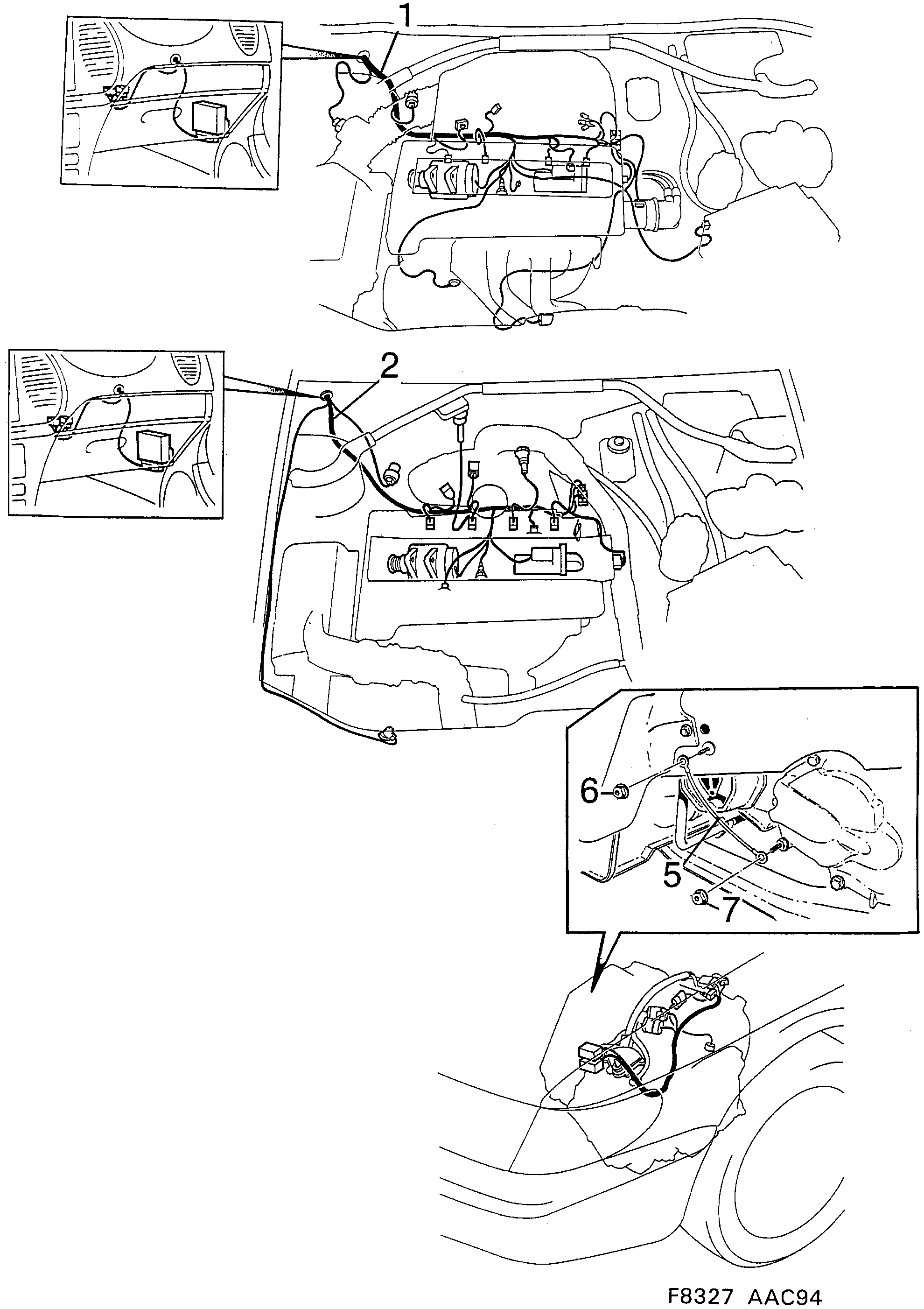

1740: Electrical, general - Wiring and fuses - Engine, gearbox
