Question 1

Where to find the exploded diagram for Lighting on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lighting on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lighting?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lighting?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lighting, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lighting suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	46 73 257 Stop light 1995-	Stop light	1995-	1
2	44 69 110 Socket, bulb	Socket, bulb		4
3	95 12 880 93 190 471 Bulb	Bulb		4
4	43 99 036 Bracket	Bracket		1
4	44 80 448 Bracket	Bracket		1
5	79 77 929 11 900 451 Nut	Nut		2

Pos.	Part No.	Description	Usage	Qty
1	46 73 257 Stop light 1995-	Stop light	1995-	1
2	44 69 110 Socket, bulb	Socket, bulb		4
3	95 12 880 93 190 471 Bulb	Bulb		4
4	43 99 036 Bracket	Bracket		1
4	44 80 448 Bracket	Bracket		1
5	79 77 929 11 900 451 Nut	Nut		2

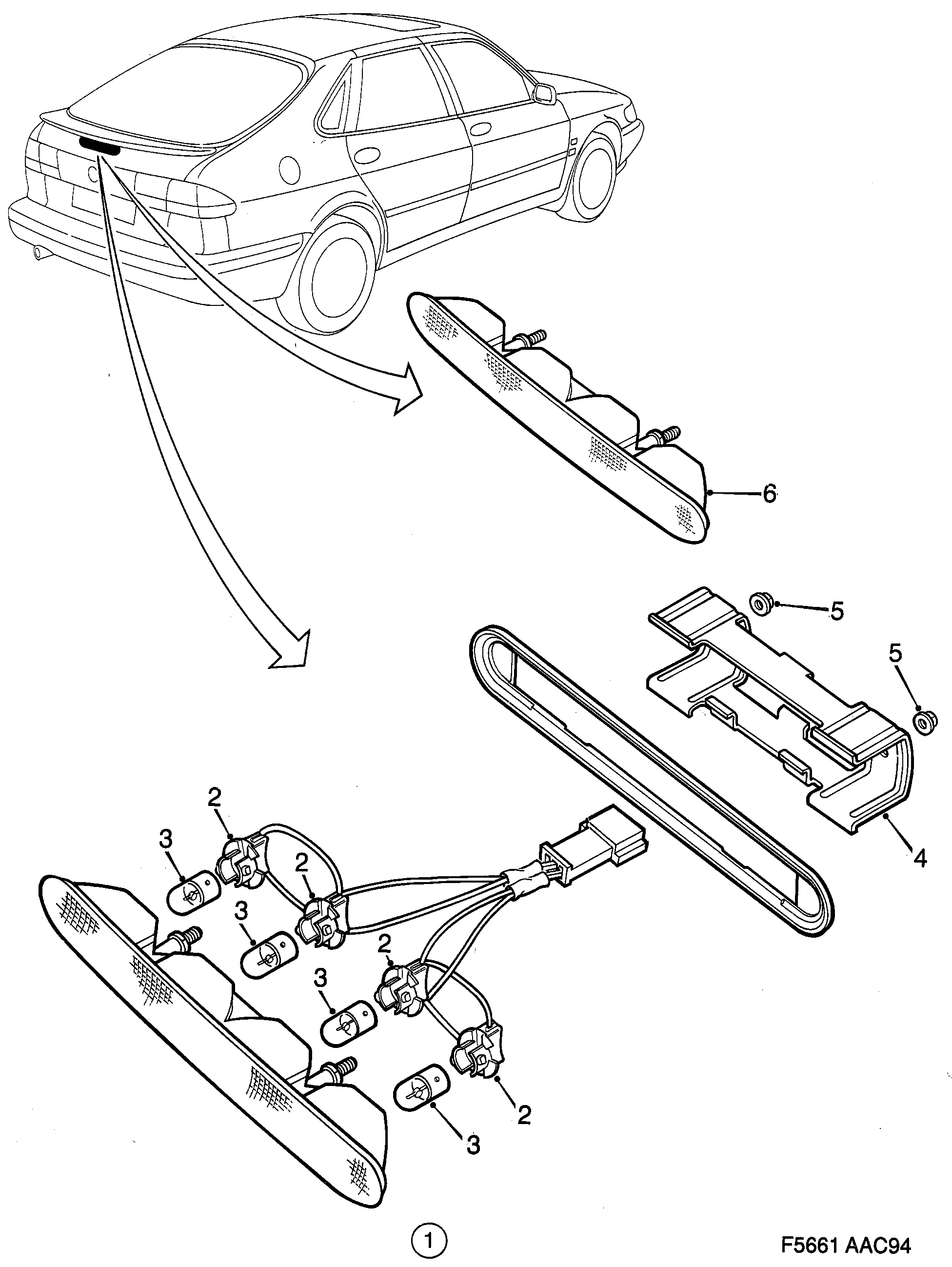

600: Electrical, general - Lighting - Stop light - High mounted
