Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	44 01 113 51 41 510 Electric motor LHD	Electric motor	LHD	1
1	44 01 030 51 41 536 Electric motor RHD	Electric motor	RHD	1
2	44 01 121 30 550 873 Spindle frame LHD	Spindle frame	LHD	1
2	44 01 048 Spindle frame RHD	Spindle frame	RHD	1
3	44 01 147 Crank arm LHD • LH	Crank arm	LHD LH	1
3	44 01 063 32 000 165 Crank arm RHD • RH	Crank arm	RHD RH	1
4	44 01 139 30 550 874 Crank arm LHD • RH	Crank arm	LHD RH	1
4	44 01 055 Crank arm RHD • LH	Crank arm	RHD LH	1
5	40 63 814 Screw	Screw		3
6	44 01 071 30 550 869 Bushing	Bushing		1
7	44 01 097 32 000 166 Hexagon screw	Hexagon screw		1
8	44 01 089 30 550 870 Bushing	Bushing		2
9	44 01 097 32 000 166 Hexagon screw	Hexagon screw		2
10	44 01 824 30 550 882 Cover	Cover		2
11	43 81 083 Cover	Cover		2
12	44 48 668 Wiper arm LHD • LH	Wiper arm	LHD LH	1
12	44 48 726 Wiper arm LHD • LH	Wiper arm	LHD LH	1
12	43 81 018 Wiper arm LHD • RH	Wiper arm	LHD RH	1
12	43 81 034 Wiper arm RHD • LH	Wiper arm	RHD LH	1
12	44 48 676 Wiper arm RHD • RH	Wiper arm	RHD RH	1
12	44 48 734 Wiper arm RHD • RH	Wiper arm	RHD RH	1
13	44 48 643 93 195 936 Wiper blade 1994-1997	Wiper blade	1994-1997	2
14	80 74 106 Nut	Nut		2
	85 49 297 Wiper blade kit Kits 1994-1997	Wiper blade kit Kits	1994-1997	X

Pos.	Part No.	Description	Usage	Qty
1	44 01 113 51 41 510 Electric motor LHD	Electric motor	LHD	1
1	44 01 030 51 41 536 Electric motor RHD	Electric motor	RHD	1
2	44 01 121 30 550 873 Spindle frame LHD	Spindle frame	LHD	1
2	44 01 048 Spindle frame RHD	Spindle frame	RHD	1
3	44 01 147 Crank arm LHD • LH	Crank arm	LHD LH	1
3	44 01 063 32 000 165 Crank arm RHD • RH	Crank arm	RHD RH	1
4	44 01 139 30 550 874 Crank arm LHD • RH	Crank arm	LHD RH	1
4	44 01 055 Crank arm RHD • LH	Crank arm	RHD LH	1
5	40 63 814 Screw	Screw		3
6	44 01 071 30 550 869 Bushing	Bushing		1
7	44 01 097 32 000 166 Hexagon screw	Hexagon screw		1
8	44 01 089 30 550 870 Bushing	Bushing		2
9	44 01 097 32 000 166 Hexagon screw	Hexagon screw		2
10	44 01 824 30 550 882 Cover	Cover		2
11	43 81 083 Cover	Cover		2
12	44 48 668 Wiper arm LHD • LH	Wiper arm	LHD LH	1
12	44 48 726 Wiper arm LHD • LH	Wiper arm	LHD LH	1
12	43 81 018 Wiper arm LHD • RH	Wiper arm	LHD RH	1
12	43 81 034 Wiper arm RHD • LH	Wiper arm	RHD LH	1
12	44 48 676 Wiper arm RHD • RH	Wiper arm	RHD RH	1
12	44 48 734 Wiper arm RHD • RH	Wiper arm	RHD RH	1
13	44 48 643 93 195 936 Wiper blade 1994-1997	Wiper blade	1994-1997	2
14	80 74 106 Nut	Nut		2
	85 49 297 Wiper blade kit Kits 1994-1997	Wiper blade kit Kits	1994-1997	X

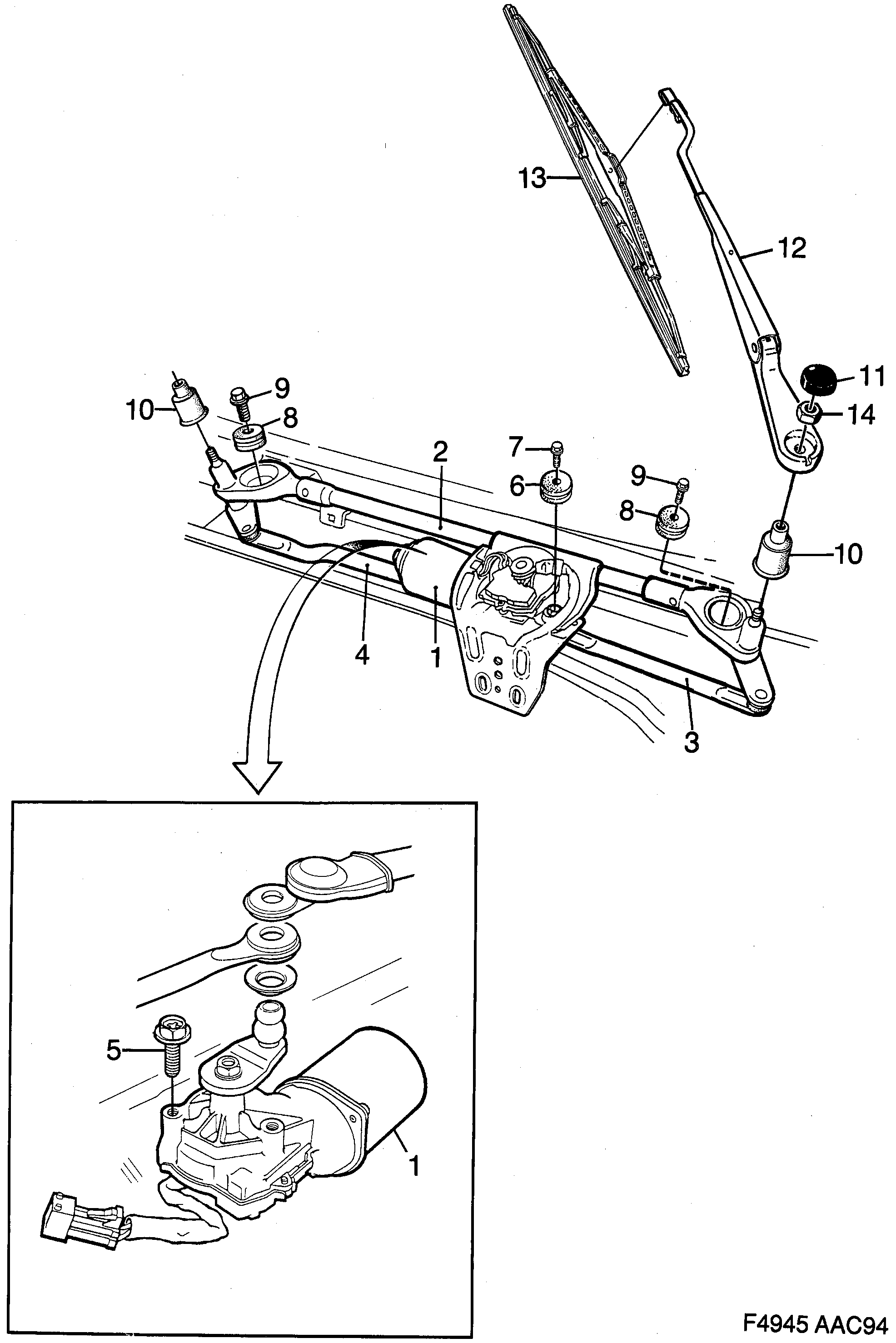

690: Electrical, general - Electric equipment, other - Windscreen wiper
