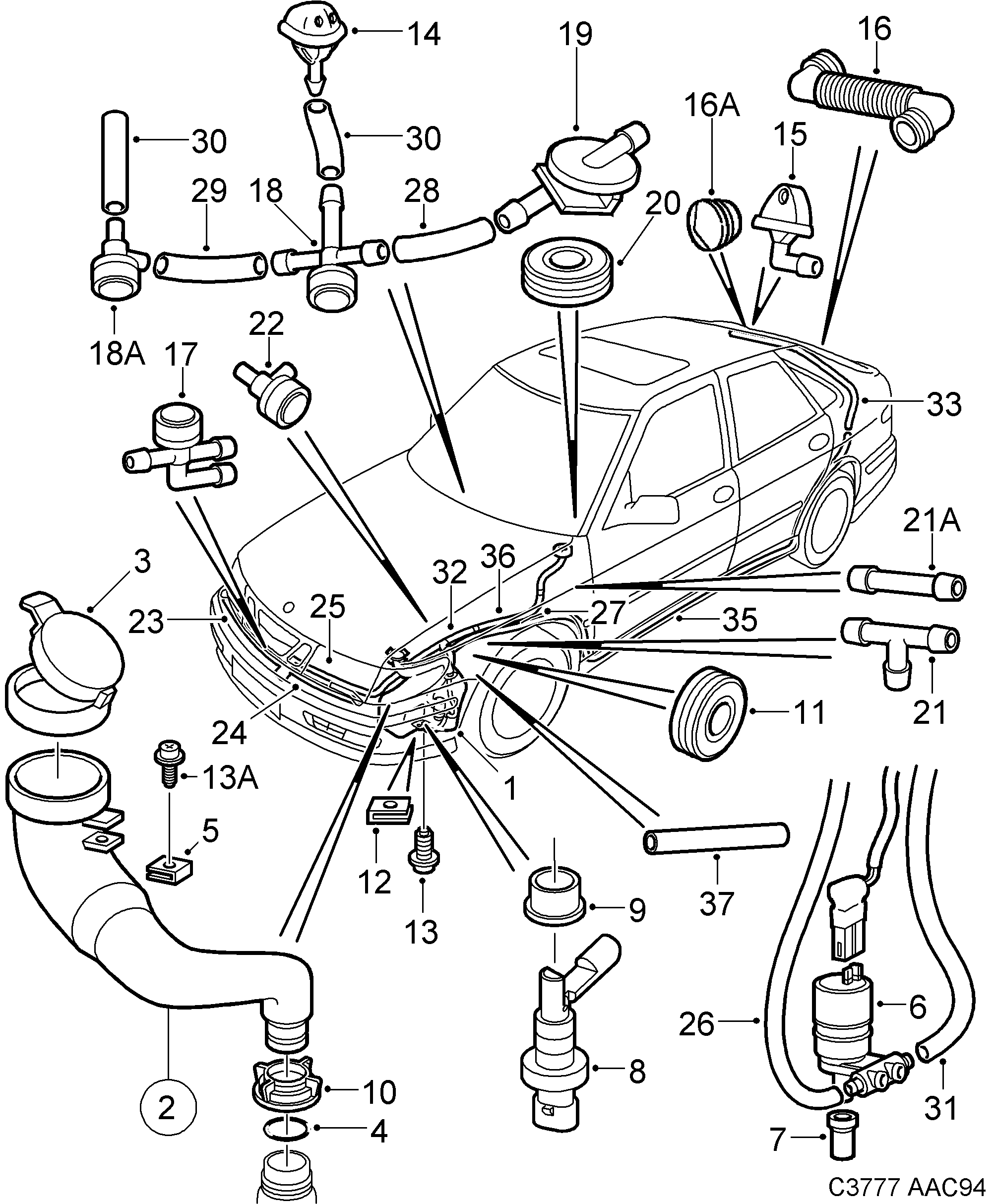

750: Electrical, general - Electric equipment, other - Washer unit
(1994 - 1998) | For 900 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 87 057 Washer fluid reservoir 1997-1998 • With level switch. | 1 | |
| 2 | 43 80 804 Filler pipe | 1 | |
| 3 | 40 92 359 Cover | 1 | |
| 4 | 43 80 820 O-ring | 1 | |
| 5 | 79 68 001 Clip nut | 1 | |
| 6 | 43 20 123 Pump, washer-reservoir 1995- | 1 | |
| 6 | 46 74 230 Pump, washer-reservoir 1996- • With rear window wiper. | 1 | |
| 7 | 95 07 617 Bushing 1995- | 1 | |
| 8 | 42 40 792 49 16 961 Level guard | 1 | |
| 9 | 42 40 800 Bushing | 1 | |
| 10 | 42 40 750 Plastic nut | 1 | |
| 11 | 44 01 659 90 221 243 Bushing | 1 | |
| 12 | 79 72 573 92 150 164 Clip nut 1994-1994 | 1 | |
| 12 | 79 67 995 Clip nut 1994- | 1 | |
| 13 | 79 73 001 Screw | 2 | |
| 13A | 79 83 000 92 153 149 Hexagon screw | 1 | |
| 14 | 85 04 144 Nozzle 1995- | 2 | |
| 15 | 43 73 494 Nozzle With rear window wiper. | 1 | |
| 16 | 42 47 565 Grommet With rear window wiper. | 1 | |
| 16A | 85 75 599 Plug Without rear window wiper. | 2 | |
| 17 | 44 80 661 51 42 740 Valve | 1 | |
| 18 | 51 42 765 Valve | 1 | |
| 18A | 51 42 757 Valve | 1 | |
| 19 | 40 94 199 Connector | 1 | |
| 20 | 79 61 345 Bushing | 1 | |
| 21 | 46 74 800 Tube 1995- | 1 | |
| 21A | 46 74 792 Tube 1995- | 1 | |
| 22 | 85 73 669 51 42 757 Valve | 1 | |
| 23 | 85 48 273 Hose L=710 MM | 1 | |
| 24 | 85 48 273 Hose L=220 MM | 1 | |
| 25 | 85 48 273 Hose L=950 MM | 1 | |
| 26 | 85 49 339 Hose 1995- • L=450 MM | 1 | |
| 27 | 85 48 273 Hose 1995-1995 • L=710 MM | 1 | |
| 28 | 85 48 273 Hose L=750 MM | 1 | |
| 29 | 85 48 273 Hose L=385 MM | 1 | |
| 30 | 85 48 273 Hose L=30 MM | 1 | |
| 31 | 85 48 273 Hose L=400 MM | With... | 1 | |
| 32 | 85 48 273 Hose L=185 MM | With... | 1 | |
| 33 | 85 48 273 Hose L=1265 MM | With... | 1 | |
| 35 | 43 73 536 Hose With rear window wiper. | 1 | |
| 36 | 85 49 339 Hose 1995- • L=530 MM | 1 | |
| 37 | 48 31 053 Rubber hose L=270 MM | 1 | |
venting | |||
85 48 273 Hose L=5000 MM | X |
