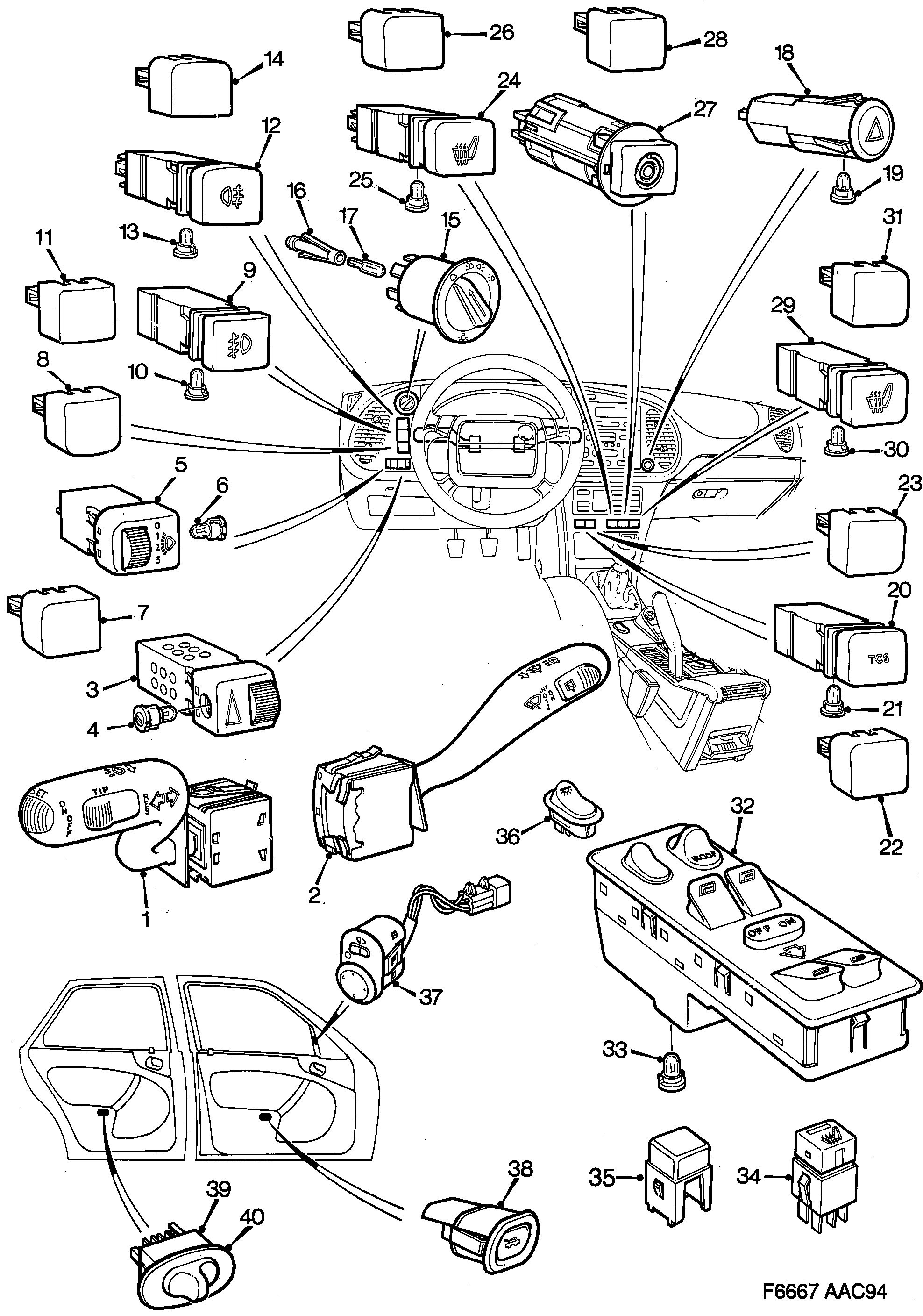

840: Electrical, general - Electric equipment, other - Switch

(1994 - 1998) | For 900 (1997)

100%

(N°810)

Section 840

(N°870)

Pos.	Part No.	Description	Usage	Qty
1	47 39 488 53 54 139 Switch 1997-1998 • direction indicators	Switch	1997-1998 direction indicators	1
1	46 69 081 53 54 147 Switch 1997-1998 • With cruise control system....	Switch	1997-1998 With cruise control system....	1
2	46 92 794 Switch 1996-1997 • windscreen wipers	Switch	1996-1997 windscreen wipers	1
2	48 11 360 Switch 1997-1997 • With rear window wiper....	Switch	1997-1997 With rear window wiper....	1
3	42 02 933 46 17 460 Rheostat instrument lighting	Rheostat	instrument lighting	1
4	44 66 967 Bulb	Bulb		1
5	44 10 775 54 71 073 Switch -1997 • headlamp adjustment	Switch	-1997 headlamp adjustment	1
5	47 36 906 54 71 073 Switch 1997- • headlamp adjustment	Switch	1997- headlamp adjustment	1
6	44 66 967 Bulb -1997	Bulb	-1997	1
6	49 29 311 54 71 065 Bulb 1997-	Bulb	1997-	1
7	44 09 280 30 550 921 Button blind knob	Button	blind knob	1
8	44 09 264 12 768 428 Button blind knob	Button	blind knob	1
9	30 550 915 12 768 423 Switch (4409223) \| front fog-light	Switch	(4409223) \| front fog-light	1
10	44 66 439 Bulb	Bulb		1
11	44 09 272 12 768 427 Button blind knob	Button	blind knob	1
12	47 33 952 Switch 1997-1998 • rear fog-light	Switch	1997-1998 rear fog-light	1
13	44 66 439 Bulb	Bulb		1
14	44 09 264 12 768 428 Button blind knob	Button	blind knob	1
15	85 90 838 Switch light switch	Switch	light switch	1
16	85 53 356 Bracket	Bracket		1
17	85 00 613 93 190 474 Bulb 40/238 286 009	Bulb	40/238 286 009	1
18	41 09 526 Switch hazard flashing light	Switch	hazard flashing light	1
19	41 14 898 Bulb	Bulb		1
20	44 11 864 Switch 1994-1997 • TCS	Switch	1994-1997 TCS	1
21	44 66 439 Bulb	Bulb		1
22	44 09 280 30 550 921 Button blind knob	Button	blind knob	1
23	44 09 280 30 550 921 Button blind knob	Button	blind knob	1
24	44 09 256 30 550 918 Switch LH \| heating pad	Switch	LH \| heating pad	1
25	44 66 439 Bulb	Bulb		1
26	44 09 280 30 550 921 Button blind knob	Button	blind knob	1
27	SensorElectric equipment, other cabin temperature	SensorElectric equipment, other cabin temperature
28	44 10 403 Button blind knob	Button	blind knob	1
29	44 09 249 Switch RH \| heating pad	Switch	RH \| heating pad	1
30	44 66 439 Bulb	Bulb		1
31	44 09 280 30 550 921 Button blind knob	Button	blind knob	1
32	46 15 852 Switch 1995-1998 • window lift	Switch	1995-1998 window lift	1
32	46 15 860 Switch 1995-1998 • For cars with electric...	Switch	1995-1998 For cars with electric...	1
32	45 19 146 Switch 1995-1998 • window lift	Switch	1995-1998 window lift	1
32	45 19 120 Switch 1995-1998 • For cars with electric...	Switch	1995-1998 For cars with electric...	1
32	42 24 044 Switch window lift	Switch	window lift	1
33	40 69 373 Bulb	Bulb		1
34	42 22 493 Switch 1995-1998 • Rear. heating pad	Switch	1995-1998 Rear. heating pad	1
35	42 23 426 Button blind knob	Button	blind knob	1
36	44 11 997 Switch interior lighting	Switch	interior lighting	1
37	44 66 405 52 48 141 Switch LHD • EM	Switch	LHD EM	1
37	44 66 413 52 48 141 Switch RHD • EM	Switch	RHD EM	1
38	47 33 440 Switch 1997-1998, LHD • luggage compartment lock	Switch	1997-1998, LHD luggage compartment lock	1
38	47 33 457 Switch 1997-1998, RHD • luggage compartment lock	Switch	1997-1998, RHD luggage compartment lock	1
39	45 19 989 Switch 1994- • Rear. window lift	Switch	1994- Rear. window lift	2
40	44 37 455 Frame	Frame		2
