Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	45 37 601 50 38 823 Electronic unit -1997 • 4-CYL	Electronic unit	-1997 4-CYL	1
1	46 63 530 50 38 823 Electronic unit 1997-1997 • 4-CYL	Electronic unit	1997-1997 4-CYL	1
1	48 72 693 50 38 823 Electronic unit 1997- • 4-CYL	Electronic unit	1997- 4-CYL	1
1	45 37 619 50 38 831 Electronic unit -1997 • 6-CYL	Electronic unit	-1997 6-CYL	1
1	46 63 548 50 38 831 Electronic unit 1997-1997 • 6-CYL	Electronic unit	1997-1997 6-CYL	1
2	45 83 019 50 41 264 Cable -1997 • 4-CYL	Cable	-1997 4-CYL	1
2	47 11 404 50 41 264 Cable 1997- • 4-CYL	Cable	1997- 4-CYL	1
2	45 83 027 50 41 272 Cable -1997 • 6-CYL	Cable	-1997 6-CYL	1
2	47 11 396 50 41 272 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
3	44 09 918 30 553 492 Bracket	Bracket		1
4	79 71 294 Screw	Screw		3
5	42 27 823 Lock ring 1997-	Lock ring	1997-	3
6	40 87 128 92 152 035 Plastic nut	Plastic nut		2
8	44 02 137 49 47 099 Pedal contact 1994-1997	Pedal contact	1994-1997	2
9	BracketClutch operation 1994-1997, LHD	BracketClutch operation 1994-1997, LHD
9	BracketClutch operation 1994-1997, RHD	BracketClutch operation 1994-1997, RHD
10	BracketFootbrake system	BracketFootbrake system

Pos.	Part No.	Description	Usage	Qty
1	45 37 601 50 38 823 Electronic unit -1997 • 4-CYL	Electronic unit	-1997 4-CYL	1
1	46 63 530 50 38 823 Electronic unit 1997-1997 • 4-CYL	Electronic unit	1997-1997 4-CYL	1
1	48 72 693 50 38 823 Electronic unit 1997- • 4-CYL	Electronic unit	1997- 4-CYL	1
1	45 37 619 50 38 831 Electronic unit -1997 • 6-CYL	Electronic unit	-1997 6-CYL	1
1	46 63 548 50 38 831 Electronic unit 1997-1997 • 6-CYL	Electronic unit	1997-1997 6-CYL	1
2	45 83 019 50 41 264 Cable -1997 • 4-CYL	Cable	-1997 4-CYL	1
2	47 11 404 50 41 264 Cable 1997- • 4-CYL	Cable	1997- 4-CYL	1
2	45 83 027 50 41 272 Cable -1997 • 6-CYL	Cable	-1997 6-CYL	1
2	47 11 396 50 41 272 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
3	44 09 918 30 553 492 Bracket	Bracket		1
4	79 71 294 Screw	Screw		3
5	42 27 823 Lock ring 1997-	Lock ring	1997-	3
6	40 87 128 92 152 035 Plastic nut	Plastic nut		2
8	44 02 137 49 47 099 Pedal contact 1994-1997	Pedal contact	1994-1997	2
9	BracketClutch operation 1994-1997, LHD	BracketClutch operation 1994-1997, LHD
9	BracketClutch operation 1994-1997, RHD	BracketClutch operation 1994-1997, RHD
10	BracketFootbrake system	BracketFootbrake system

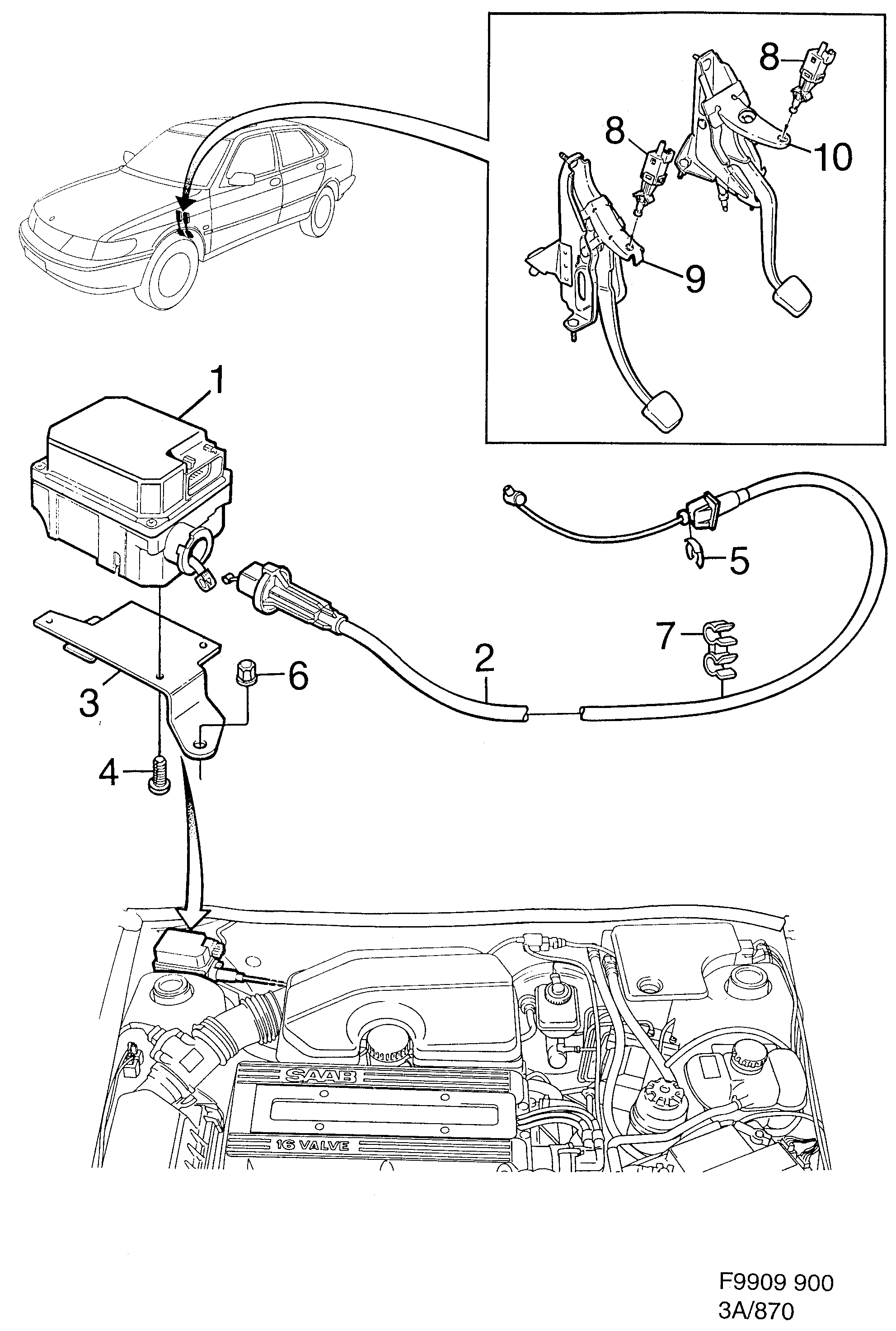

870: Electrical, general - Electric equipment, other - Speed control system
