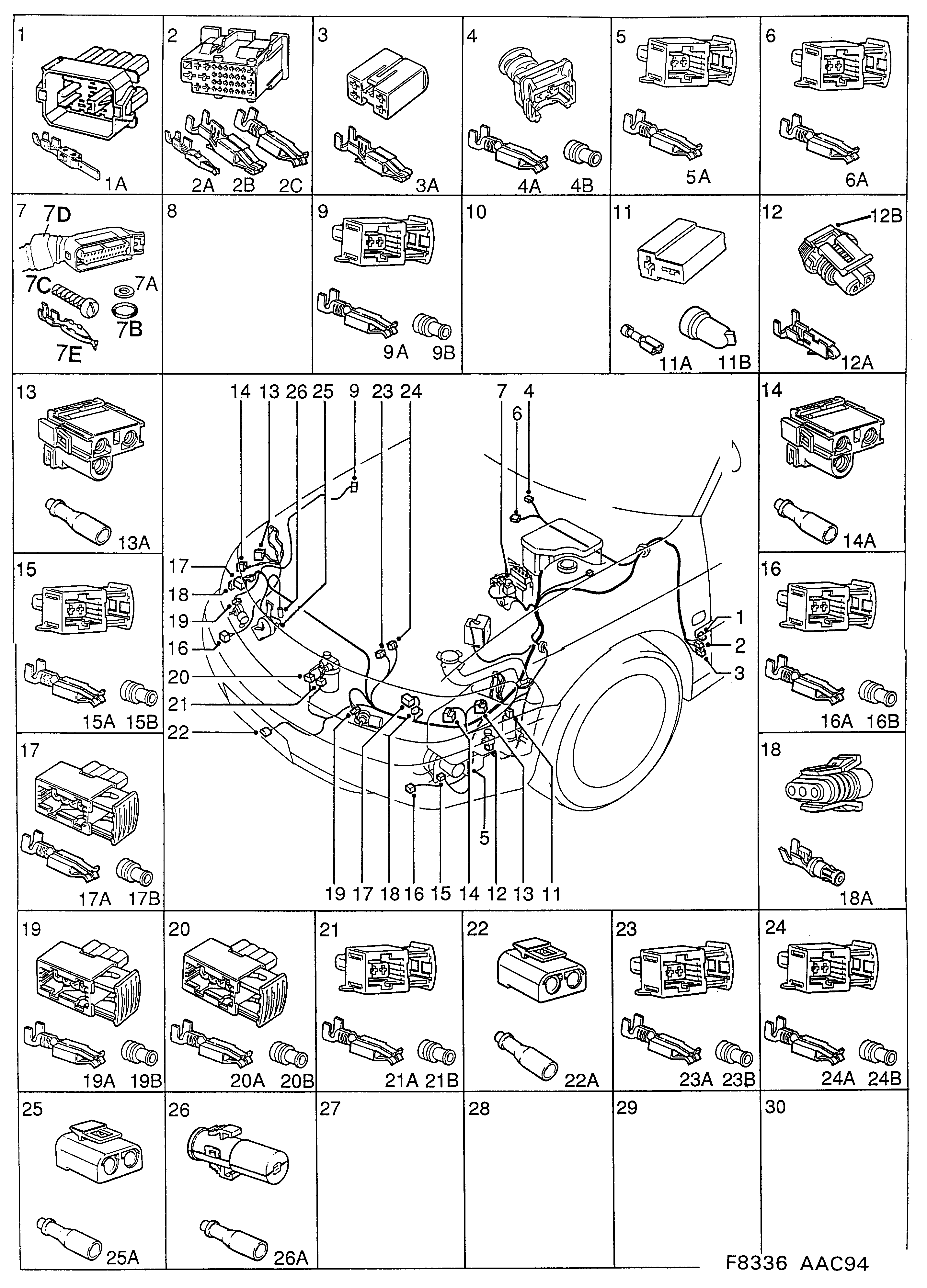

3240: Electrical, connector - Contact housing etc - Front

(1997 - 1998) | For 900 (1997)

100%

(N°2460)

Section 3240

(N°3270)

Pos.	Part No.	Description	Usage	Qty
1	41 17 461 Connector housing 10-pin, male connection	Connector housing	10-pin, male connection	1
1A	41 15 077 12 789 934 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	7
2	41 73 803 52 41 435 Contact housing 33-pin, female connection	Contact housing	33-pin, female connection	1
2A	41 15 499 12 790 414 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	21
2B	91 20 957 12 789 796 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	7
2C	91 20 791 30 520 557 Cable terminal AREA 2,5-4,0 MM2	Cable terminal	AREA 2,5-4,0 MM2	1
3	91 23 555 Contact housing 4-pin, female connection	Contact housing	4-pin, female connection	1
3A	91 20 957 12 789 796 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	4
4	41 78 414 12 790 247 Connector housing 2-pin, female SAI	Connector housing	2-pin, female SAI	1
4A	40 61 586 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	2
4B	40 61 966 Seal Ø 1,2-2,0 MM	Seal	Ø 1,2-2,0 MM	1
4B	40 61 974 12 798 372 Seal Ø 2,1-2,9 MM	Seal	Ø 2,1-2,9 MM	1
5	41 13 205 12 788 933 Connector housing 2-pin, female vacuum pump	Connector housing	2-pin, female vacuum pump	1
5A	43 50 526 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	2
6	41 13 205 12 788 933 Connector housing 2-pin, female switch vacuum...	Connector housing	2-pin, female switch vacuum...	1
6A	43 50 526 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	2
7	45 87 952 Connector housing 26-pin, female module, ABS	Connector housing	26-pin, female module, ABS	1
7A	Seal Not as separate spare...	Seal	Not as separate spare...
7B	Seal Not as separate spare...	Seal	Not as separate spare...
7C	47 34 406 Connector housing Not as separate spare...	Connector housing	Not as separate spare...	1
7D	47 34 414 Cover Not as separate spare...	Cover	Not as separate spare...	1
7E	43 54 353 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	15
7E	46 69 669 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	2
7E	43 54 171 12 970 428 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	3
11	42 01 315 Connector housing 2-pin, female washer pump	Connector housing	2-pin, female washer pump	1
11A	44 64 442 12 798 482 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	2
11B	42 24 531 Protection	Protection		1
12	42 01 224 12 790 252 Connector housing 2-pin, female level monitor	Connector housing	2-pin, female level monitor	1
12A	44 18 505 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	2
12B	42 01 232 12 789 184 Locking	Locking		1
13	95 19 679 Contact housing 3-pin, female reversing lamp	Contact housing	3-pin, female reversing lamp	1
13A	85 47 804 Connector AREA 2,5-4,0 MM2	Connector	AREA 2,5-4,0 MM2	2
