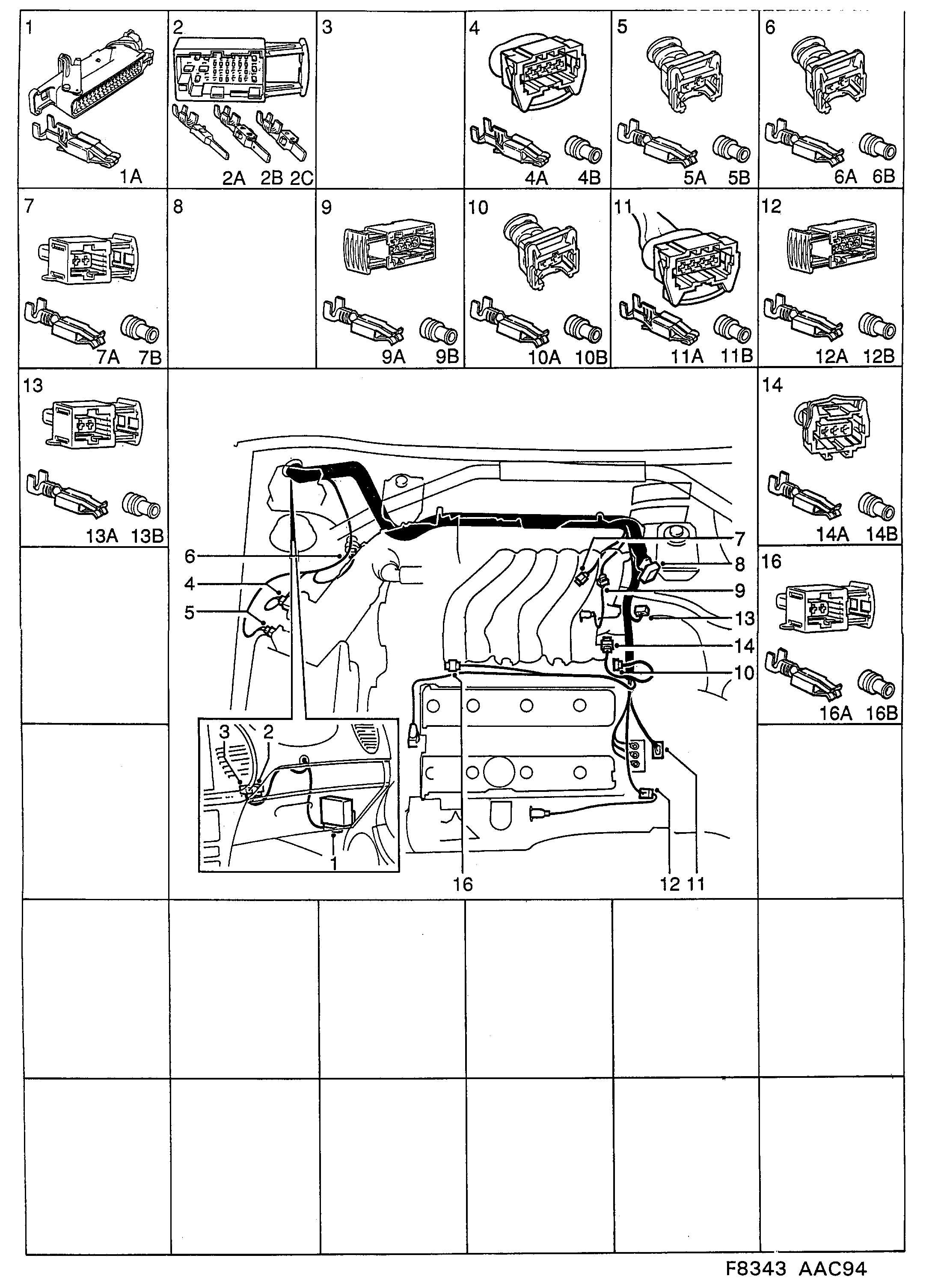

3450: Electrical, connector - Contact housing etc - Engine

(1997 - 1998 | B258I) | For 900 (1997)

100%

(N°3420)

Section 3450

(N°3480)

Pos.	Part No.	Description	Usage	Qty
1	42 22 311 Connector housing B258I • 55-pin, female electronic unit...	Connector housing	B258I 55-pin, female electronic unit...	1
1A	91 20 957 12 789 796 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	46
1	42 22 451 Contact housing LHD • B258I • 88-pin, female electronic unit...	Contact housing	LHD B258I 88-pin, female electronic unit...	1
	42 23 541 Contact housing B258I	Contact housing	B258I	1
	42 23 558 Cover B258I	Cover	B258I	1
	42 23 566 Seal B258I	Seal	B258I	1
	85 87 461 Seal B258I	Seal	B258I	1
	42 23 574 Screw B258I	Screw	B258I	1
	42 23 582 Cable attachment B258I	Cable attachment	B258I	1
	42 23 590 Tensioning band B258I	Tensioning band	B258I	1
1A	40 63 970 12 790 467 Cable terminal B258I • AREA 0,5-1,0 MM2	Cable terminal	B258I AREA 0,5-1,0 MM2	37
2	41 73 852 12 798 080 Contact housing B258I • 33-pin, male connection	Contact housing	B258I 33-pin, male connection	1
2A	41 15 457 12 790 614 Cable terminal B258I • AREA 0,5-1,0 MM2	Cable terminal	B258I AREA 0,5-1,0 MM2	17
2B	41 15 077 12 789 934 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	6
2C	41 15 580 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
4	46 68 604 12 790 268 Contact housing B258I • 4-pin, female mass air...	Contact housing	B258I 4-pin, female mass air...	1
4A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	4
4B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	4
5	46 68 588 Contact housing B258I • 2-pin, female temperature sensor	Contact housing	B258I 2-pin, female temperature sensor	1
5A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
5B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	2
6	44 33 439 Connector housing B258I • 2-pin, female EVAP CP...	Connector housing	B258I 2-pin, female EVAP CP...	1
6A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
6B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	2
	44 33 454 Cover B258I	Cover	B258I	1
7	41 13 205 12 788 933 Connector housing B258I • 2-pin, female knock sensor...	Connector housing	B258I 2-pin, female knock sensor...	1
7A	43 50 526 Cable terminal B258I • AREA 0.5-1,0 MM2	Cable terminal	B258I AREA 0.5-1,0 MM2	2
7B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,9 MM2	Seal	B258I AREA 2,1-2,9 MM2	2
9	41 13 601 12 788 993 Connector housing B258I • 4-pin, female preheating lambda...	Connector housing	B258I 4-pin, female preheating lambda...
9A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	3
9B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,5 MM2	Seal	B258I AREA 2,1-2,5 MM2	3
10	46 68 596 12 790 267 Contact housing B258I • 2-pin, female temperature sensor...	Contact housing	B258I 2-pin, female temperature sensor...	1
10A	40 61 586 Cable terminal B258I • AREA 1,0-2,5 MM2	Cable terminal	B258I AREA 1,0-2,5 MM2	2
10B	40 61 974 12 798 372 Seal B258I • AREA 2,1-2,5 MM2	Seal	B258I AREA 2,1-2,5 MM2	2
