Pos.	Part No.	Description	Usage	Qty
1	47 59 148 Compressor 1997-1998 • For ME specified cars...	Compressor	1997-1998 For ME specified cars...	1
2	46 32 014 Thermo switch 1995-	Thermo switch	1995-	1
3	43 18 093 30 541 944 Relief valve	Relief valve		1
4	46 34 903 Clutch 1995-	Clutch	1995-	1
5	43 18 168 30 541 948 Cable clamp	Cable clamp		1
	43 83 758 Plug	Plug		1
	46 32 139 Shim	Shim		1
11	79 82 598 Hexagon screw	Hexagon screw		2
12	79 79 297 Screw 4-CYL	Screw	4-CYL	1
12	79 82 598 Hexagon screw 1994-1997 • 6-CYL • M10X100	Hexagon screw	1994-1997 6-CYL M10X100	1
12	79 79 248 Screw 1994-1997 • 6-CYL • M10X110	Screw	1994-1997 6-CYL M10X110	1
13	80 73 108 Washer 4-CYL	Washer	4-CYL	1
14	BracketShort block	BracketShort block
20	43 83 949 Refrigerant 0.75 KG	Refrigerant	0.75 KG	1
21	Valve See Special tools	Valve	See Special tools	1
	40 74 787 90 509 933 Oil 20 ML	Oil	20 ML	X

Pos.	Part No.	Description	Usage	Qty
1	47 59 148 Compressor 1997-1998 • For ME specified cars...	Compressor	1997-1998 For ME specified cars...	1
2	46 32 014 Thermo switch 1995-	Thermo switch	1995-	1
3	43 18 093 30 541 944 Relief valve	Relief valve		1
4	46 34 903 Clutch 1995-	Clutch	1995-	1
5	43 18 168 30 541 948 Cable clamp	Cable clamp		1
	43 83 758 Plug	Plug		1
	46 32 139 Shim	Shim		1
11	79 82 598 Hexagon screw	Hexagon screw		2
12	79 79 297 Screw 4-CYL	Screw	4-CYL	1
12	79 82 598 Hexagon screw 1994-1997 • 6-CYL • M10X100	Hexagon screw	1994-1997 6-CYL M10X100	1
12	79 79 248 Screw 1994-1997 • 6-CYL • M10X110	Screw	1994-1997 6-CYL M10X110	1
13	80 73 108 Washer 4-CYL	Washer	4-CYL	1
14	BracketShort block	BracketShort block
20	43 83 949 Refrigerant 0.75 KG	Refrigerant	0.75 KG	1
21	Valve See Special tools	Valve	See Special tools	1
	40 74 787 90 509 933 Oil 20 ML	Oil	20 ML	X

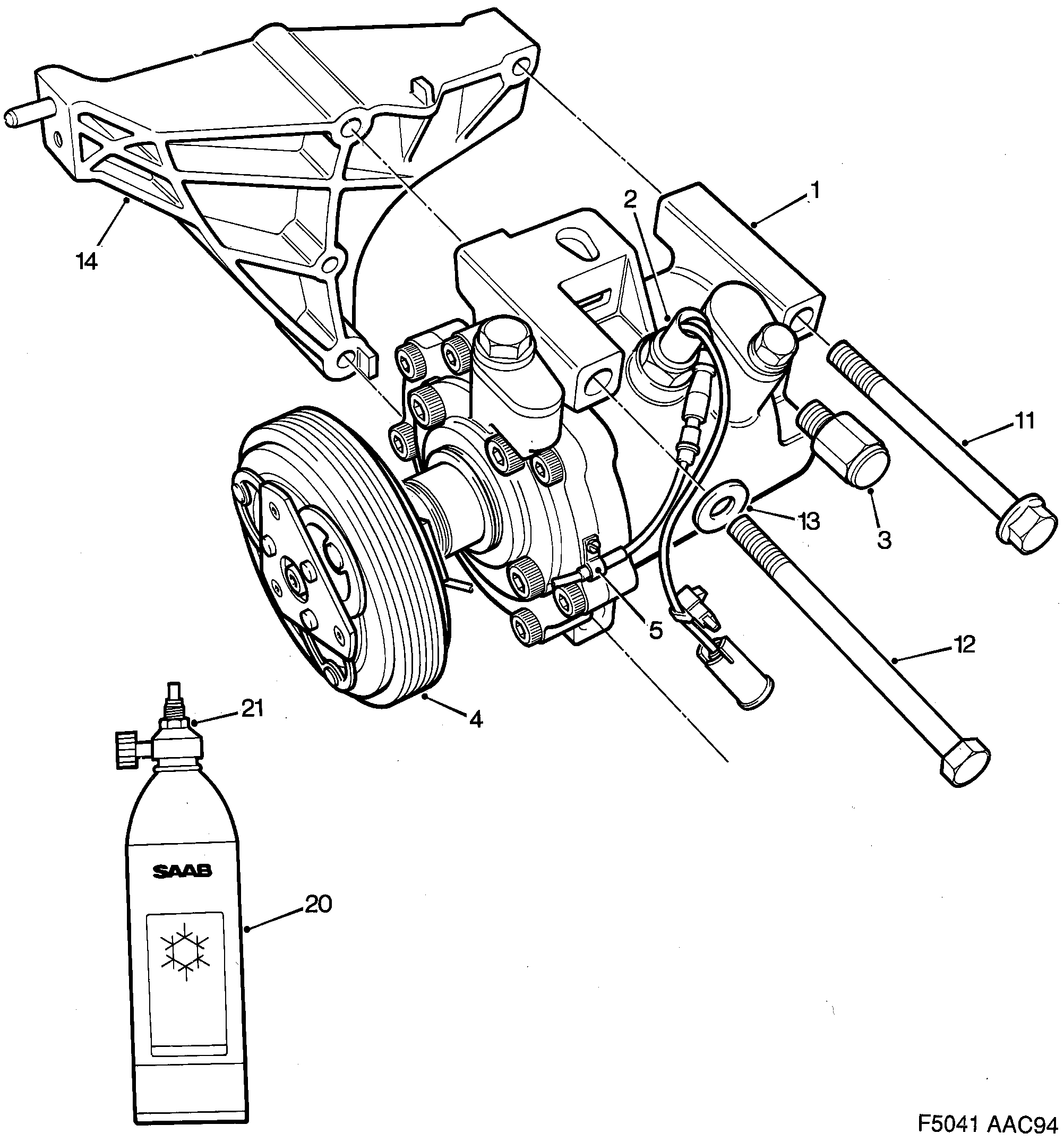

300: Heating and ventilation - AC compressor
