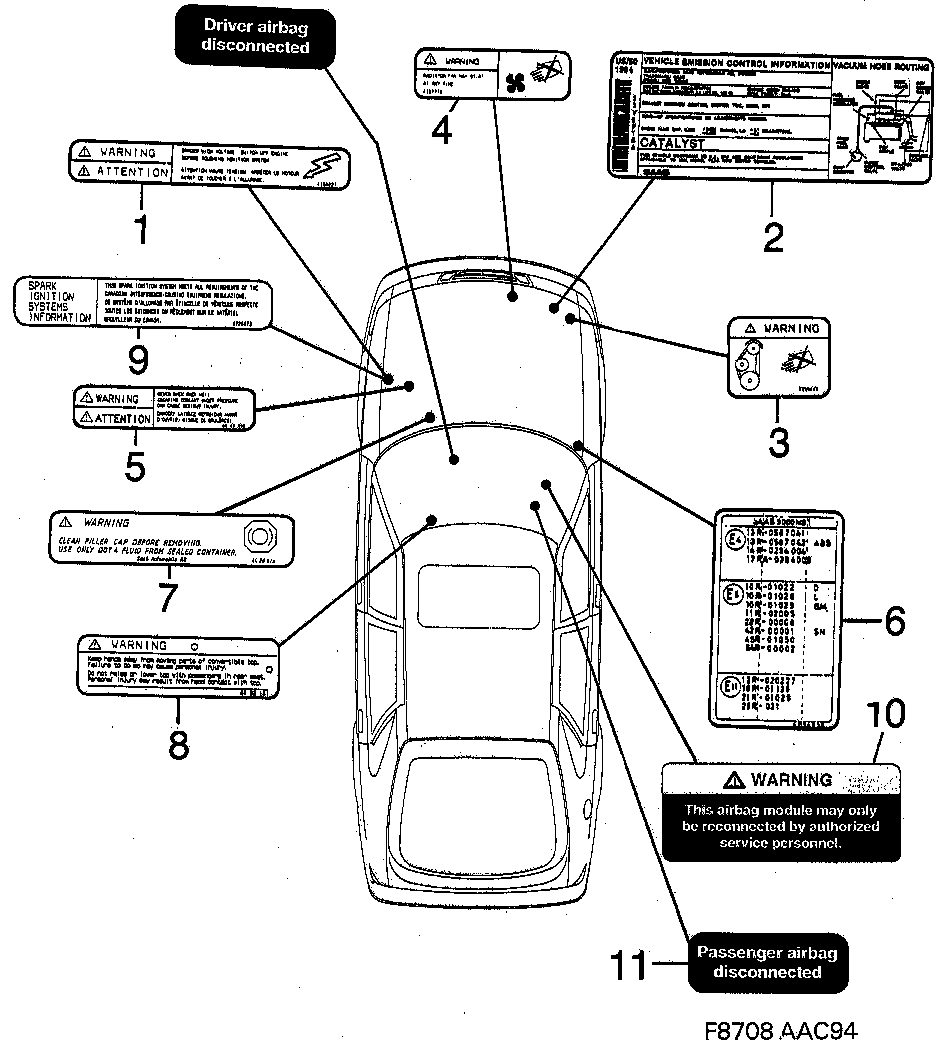

150: Tool, labels - Labels - Part 1

(1994 - 1998) | For 900 (1997)

100%

(N°120)

Section 150

(N°180)

Pos.	Part No.	Description	Usage	Qty
1	43 94 227 Label WARNING HIGH VOLTAGE	Label	WARNING HIGH VOLTAGE	1
2	48 78 112 Label 1997-1997, LHD • B234I • Exhaust emission control	Label	1997-1997, LHD B234I Exhaust emission control	1
2	48 78 138 Label 1997-1997, LHD • B258I • Exhaust emission control	Label	1997-1997, LHD B258I Exhaust emission control	1
2	48 78 120 Label 1997-1997, LHD • B204L • Exhaust emission control	Label	1997-1997, LHD B204L Exhaust emission control	1
2	47 29 174 Label 1997-1997 • B234I • Exhaust emission control	Label	1997-1997 B234I Exhaust emission control	1
2	47 25 586 Label 1997-1997 • B258I • Exhaust emission control	Label	1997-1997 B258I Exhaust emission control	1
2	45 28 915 Label 1997-1997 • B204L • Exhaust emission control	Label	1997-1997 B204L Exhaust emission control	1
2	47 25 628 Label 1997-1997 • B204I • Exhaust emission control	Label	1997-1997 B204I Exhaust emission control	1
2	47 25 644 Label 1997-1997 • B234I • Exhaust emission control	Label	1997-1997 B234I Exhaust emission control	1
2	47 25 610 Label 1997-1997 • B258I • Exhaust emission control	Label	1997-1997 B258I Exhaust emission control	1
2	47 25 636 Label 1997-1997 • B204L • Exhaust emission control	Label	1997-1997 B204L Exhaust emission control	1
2	45 27 933 12 785 170 Label 1995-1998 • Exhaust emission control	Label	1995-1998 Exhaust emission control	1
3	43 59 444 53 24 603 Label WARNING BELT	Label	WARNING BELT	1
4	43 57 778 53 24 595 Label WARNING RADIATOR FAN	Label	WARNING RADIATOR FAN	1
5	44 44 196 53 24 637 Label WARNING EXPANSION TANK	Label	WARNING EXPANSION TANK	1
6	48 79 078 Label 1997-1997 • ECE-APPROVALS	Label	1997-1997 ECE-APPROVALS	1
7	44 26 573 Label 1994- • CLEAN FILLER CAP	Label	1994- CLEAN FILLER CAP	1
8	44 92 161 53 24 686 Label WARNING TOP	Label	WARNING TOP	1
9	47 28 473 Label 1996- • SPARK IGNITION SYSTEMS INFORMATION	Label	1996- SPARK IGNITION SYSTEMS INFORMATION	1
10	50 10 087 12 797 081 Label WARNING,AIRBAG MODULE	Label	WARNING,AIRBAG MODULE	1
11	50 10 053 12 797 082 Label PASSENGER AIRBAG DISCONN	Label	PASSENGER AIRBAG DISCONN	1
11	50 10 079 12 797 083 Label PASS.AIRBAG URKOPPLAD	Label	PASS.AIRBAG URKOPPLAD	1
12	50 10 061 Label DRIVER AIRBAG DISCONNECT	Label	DRIVER AIRBAG DISCONNECT	1
