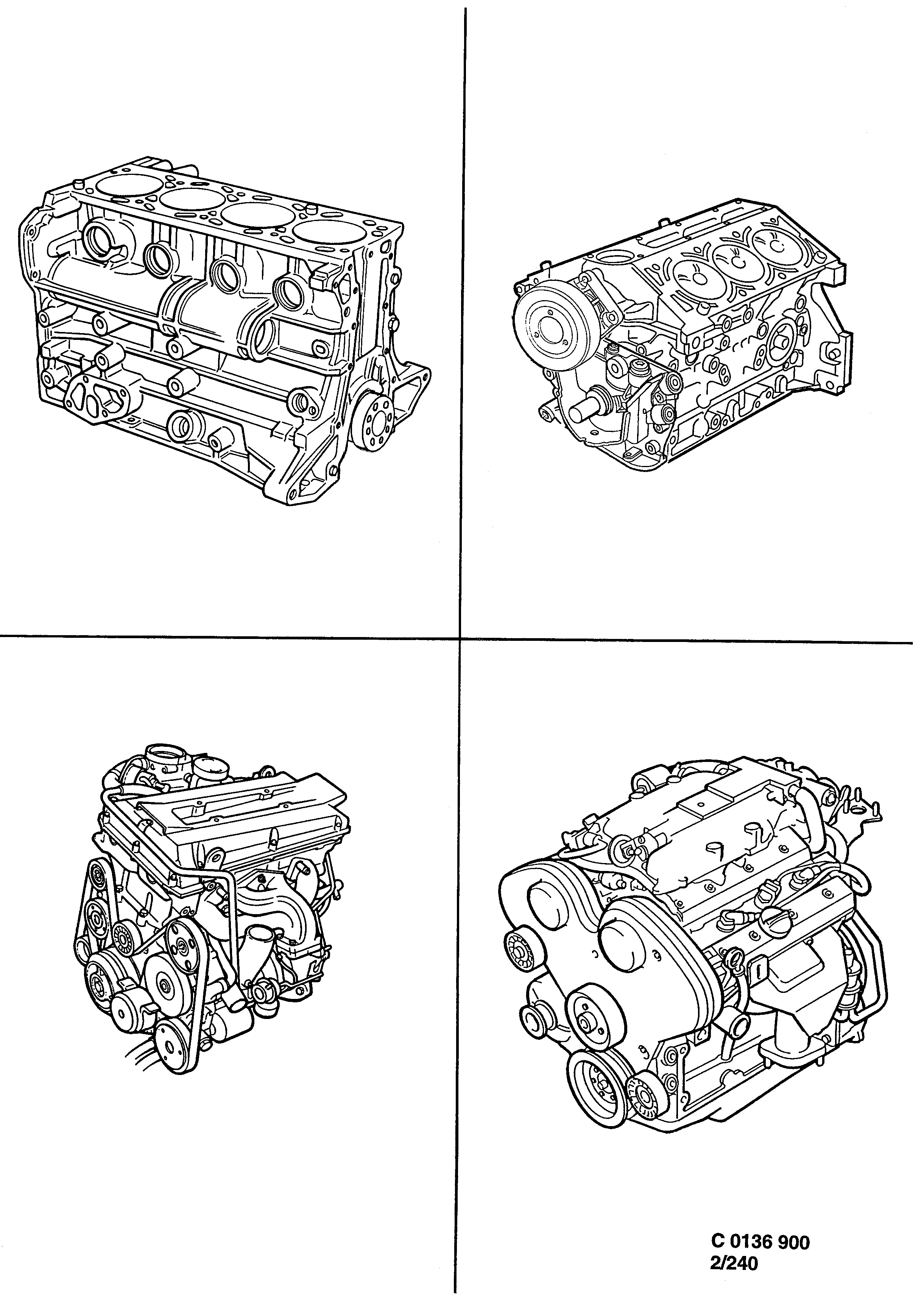

240: Engine - Short block - Short engine - Engine

(1994 - 1998) | For 900 (1998)

100%

(N°210)

Section 240

(N°270)

Part No.	Description	Usage	Qty
91 69 590 Basic engine B206I • Also available as exchange...	Basic engine	B206I Also available as exchange...	X
91 88 491 Basic engine 1998-1998 • B204I • Also available as exchange...	Basic engine	1998-1998 B204I Also available as exchange...	X
91 88 517 Basic engine B234I • Also available as exchange...	Basic engine	B234I Also available as exchange...	X
30 582 797 Basic engine 1995-1998 • B204L	Basic engine	1995-1998 B204L	X
Cylinder block 4-CYL, 6-CYL	Cylinder block	4-CYL, 6-CYL
Crankshaft 4-CYL, 6-CYL	Crankshaft	4-CYL, 6-CYL
Connecting rod 4-CYL, 6-CYL	Connecting rod	4-CYL, 6-CYL
Piston 4-CYL, 6-CYL	Piston	4-CYL, 6-CYL
Timing gear casing 4-CYL	Timing gear casing	4-CYL
Transmission 4-CYL	Transmission	4-CYL
Coolant pump 4-CYL	Coolant pump	4-CYL
Oil pump 4-CYL	Oil pump	4-CYL
Flywheel housing 4-CYL	Flywheel housing	4-CYL
91 83 104 Engine 1998-1998 • B204I	Engine	1998-1998 B204I	X
91 83 112 Engine 1998-1998 • B204I	Engine	1998-1998 B204I	X
91 83 229 Engine 1998-1998, LHD • B204L	Engine	1998-1998, LHD B204L	X
91 83 237 Engine 1998-1998, LHD • B204L	Engine	1998-1998, LHD B204L	X
91 83 187 Engine 1998-1998 • B204L • For cars with intake...	Engine	1998-1998 B204L For cars with intake...	X
91 83 203 Engine 1998-1998 • B204L • For cars with intake...	Engine	1998-1998 B204L For cars with intake...	X
91 83 195 Engine 1998-1998 • B204L • For cars with intake...	Engine	1998-1998 B204L For cars with intake...	X
91 83 120 Engine 1998-1998 • B234I	Engine	1998-1998 B234I	X
91 83 138 Engine 1998-1998 • B234I	Engine	1998-1998 B234I	X
91 83 146 Engine 1998-1998 • B234I • For tropical market; ME,...	Engine	1998-1998 B234I For tropical market; ME,...	X
91 83 153 Engine 1998-1998 • B234I • For tropical market; ME,...	Engine	1998-1998 B234I For tropical market; ME,...	X
91 83 161 Engine 1998-1998, LHD • B234I	Engine	1998-1998, LHD B234I	X
91 83 179 Engine 1998-1998, LHD • B234I	Engine	1998-1998, LHD B234I	X
Cylinder block	Cylinder block
Crankshaft	Crankshaft
Connecting rod	Connecting rod
Piston	Piston
Timing gear casing	Timing gear casing
Transmission	Transmission
Coolant pump	Coolant pump
Flywheel housing	Flywheel housing
Cylinder head	Cylinder head
Valve cover	Valve cover
Sump	Sump
Flywheel	Flywheel
Vibration damper	Vibration damper
Camshaft	Camshaft
Intake manifold	Intake manifold
Exhaust manifold	Exhaust manifold
Oil filter	Oil filter
Oil filler pipe	Oil filler pipe
Crank case ventilation	Crank case ventilation
Thermostat housing	Thermostat housing
Multiport fuel injection	Multiport fuel injection
Ignition system	Ignition system
Clutch	Clutch
